2009-2014 Ford F-150 & Raptor High-Performance Transmission Oil Cooler
Regular price
$399.00
Couldn't load pickup availability
Got questions?
Feel free to get in touch

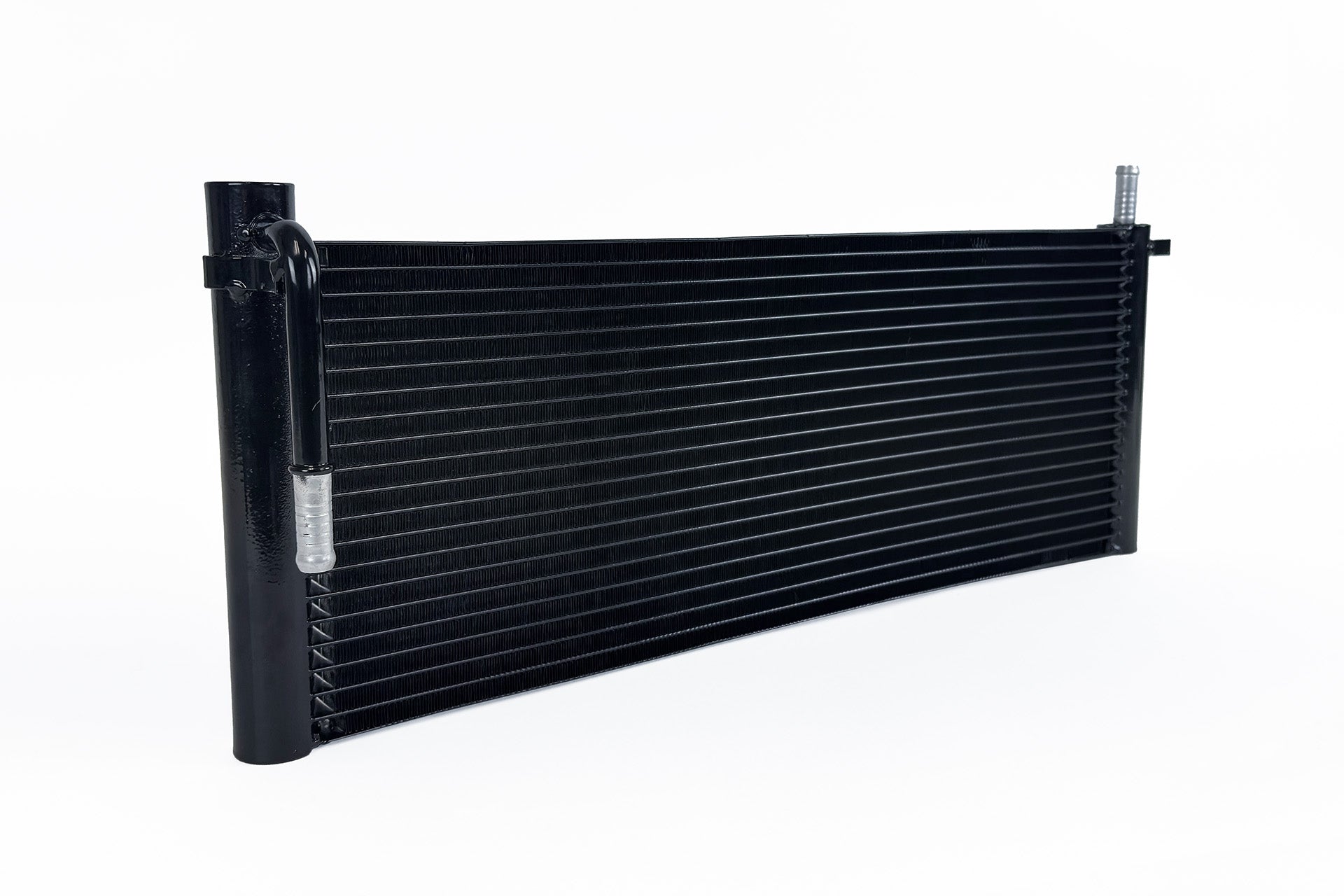

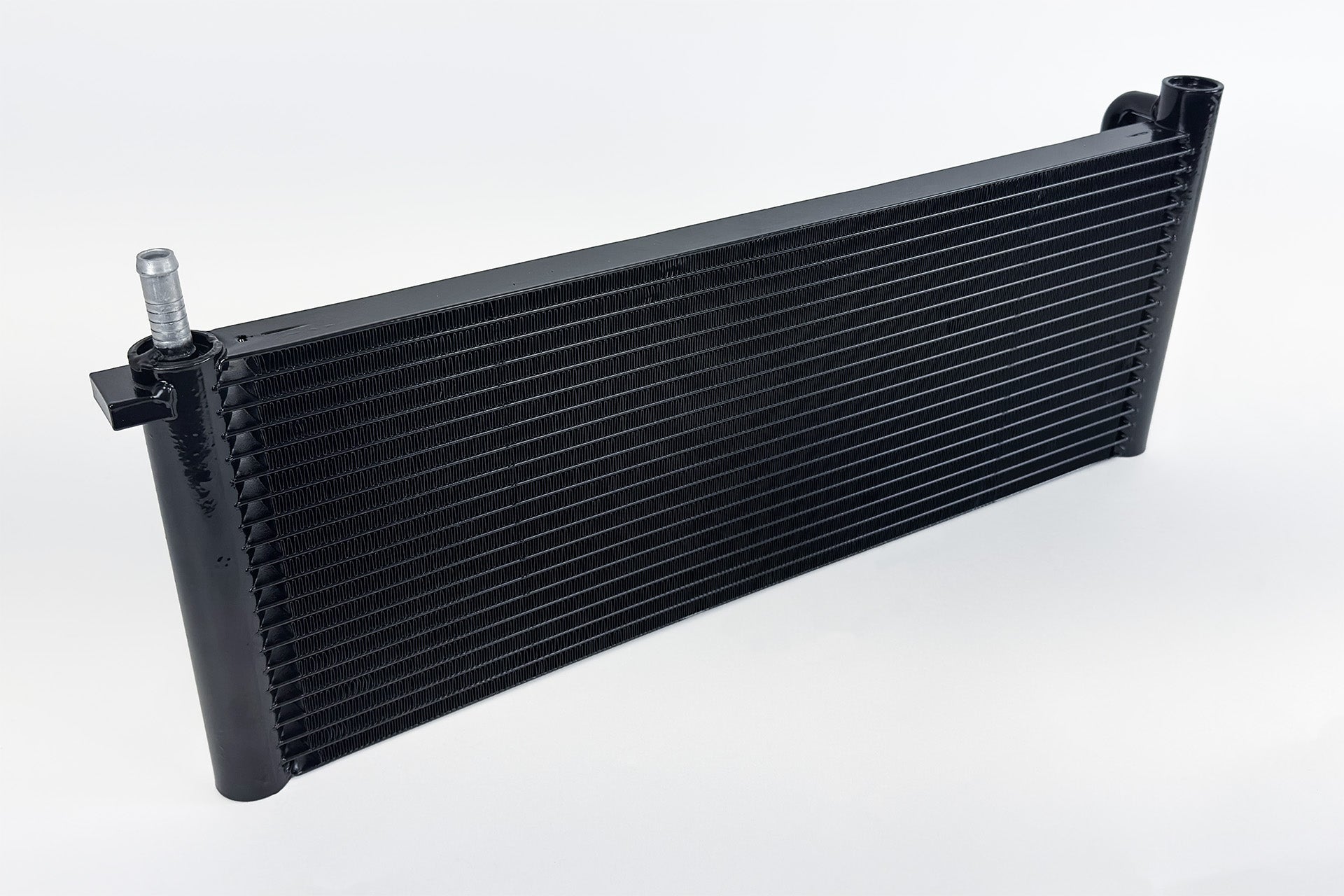

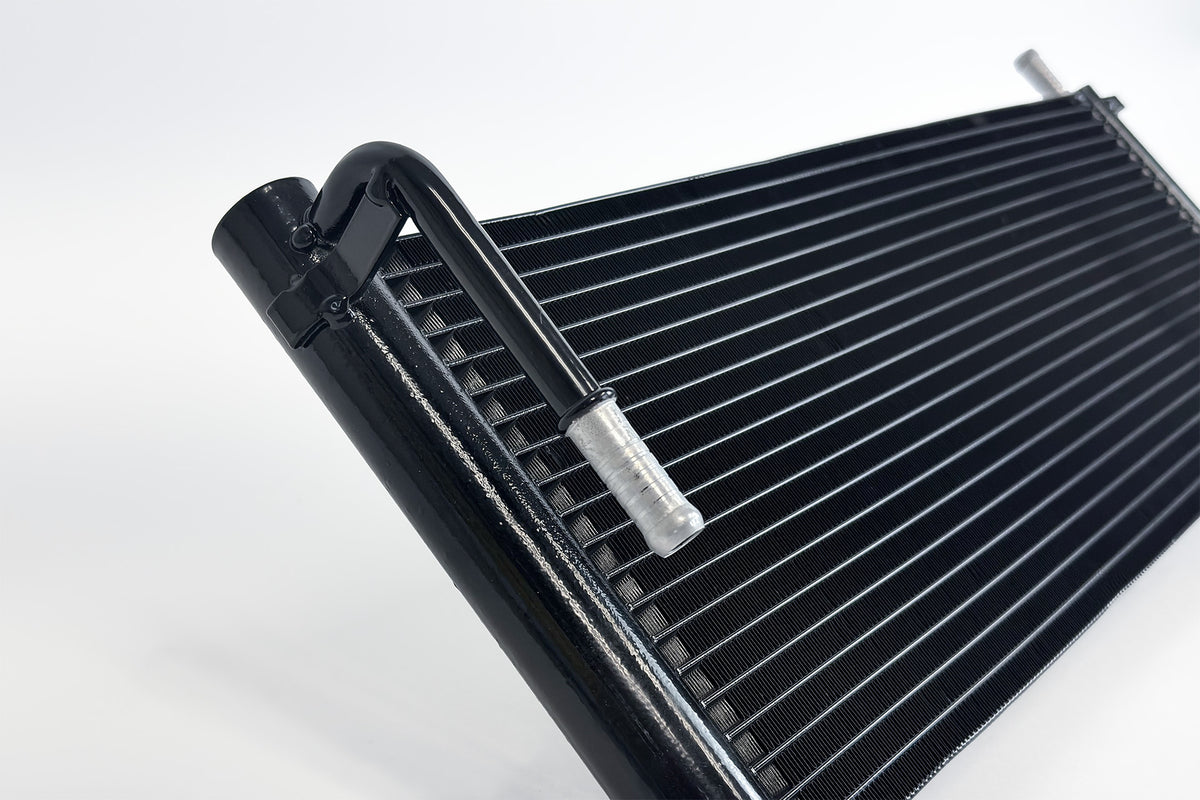

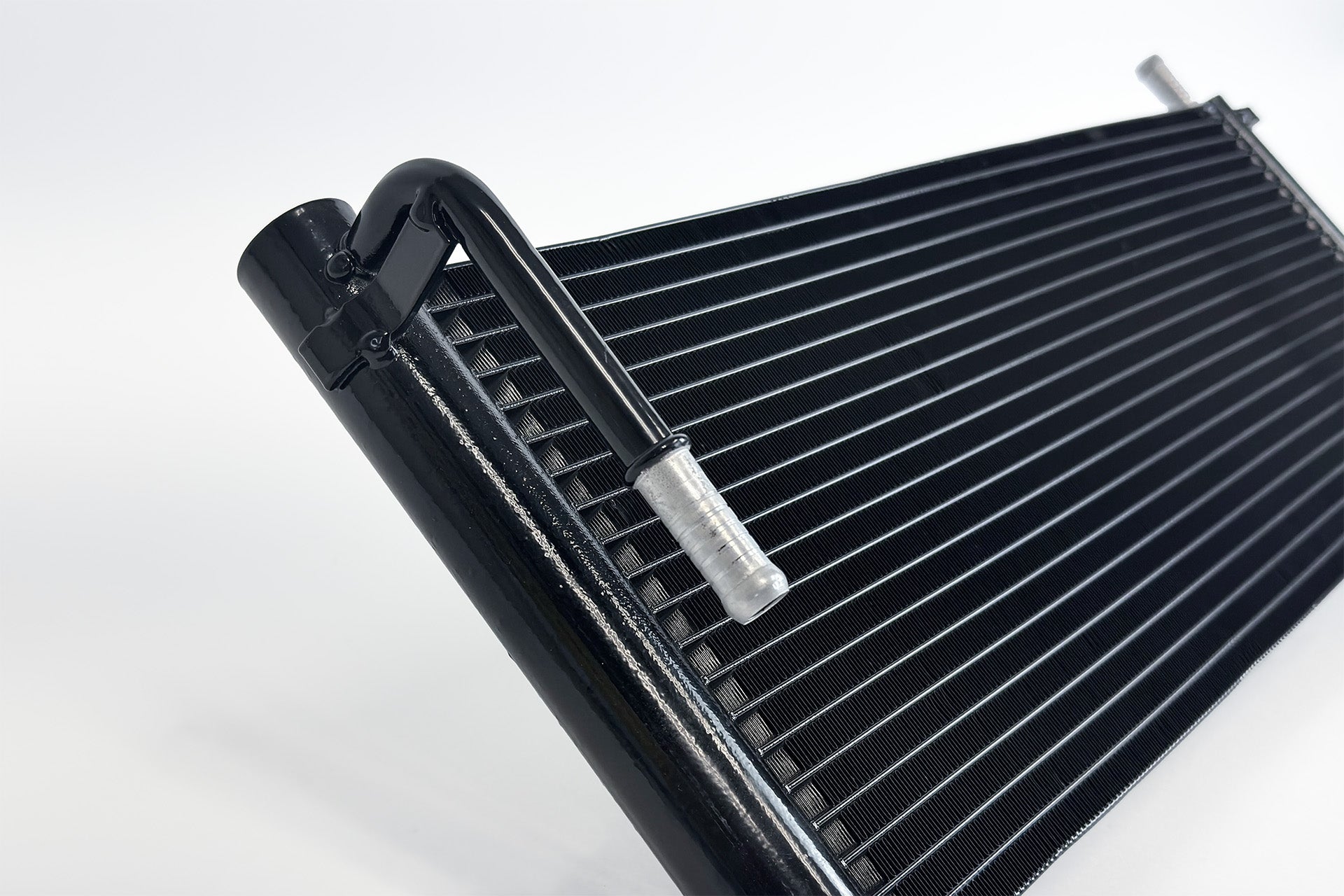

The CSF transmission oil cooler eliminate the concern of overheating. The advanced design features CSF's proprietary AC Condenser Technology, utilizing a 1-Row SuperHigh Pressure 32mm 10-Channel Microtube architecture that maximizes both oil flow and cooling surface area. The result is dramatic temperature reduction under all driving conditions.
- Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 26mm 10-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
- 20 Rows of 8mm Tall Multi-Louvered Fins
- Welded All-Aluminum Construction
- OEM Style Inlet/Outlet Connections
- 30% Larger than factory cooler
- Drop-in Fit Requires No Modifications to Install
- Black Finish for OEM+ Look
- 2-Year Limited Warranty
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353081013
- ADD-ON: 8094
- Core Height: 7.9 in.
- Core Material: Aluminum
- Core Row Quantity: 1
- Core Thickness: 26mm
- Core Tube Width: 26mm
- Core Width: 20.1 in.
- Electric Fan: No
- Finish: Black
- Finish/Color: Black
- Grade Type: Performance
- Housing Color: Black
- Inlet Attachment Type: Quick Connect
- Installation Type: Drop-In Fit Installation
- Line Included: No
- Material: Aluminum
- Mounting Hardware Included: No
- Outlet Attachment Type: Quick Connect
- Strap Included: No
- Thickness: 32mm
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 29 x 5 x 13 inches
- Weight: 5 POUNDS
