Home » JE Pistons 305 Series Piston Kit
JE Pistons

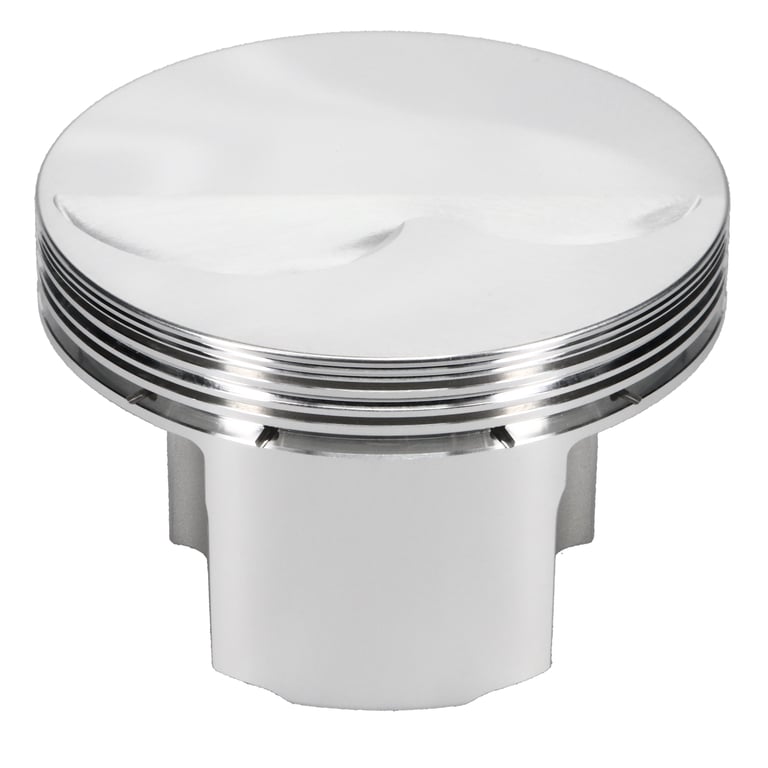

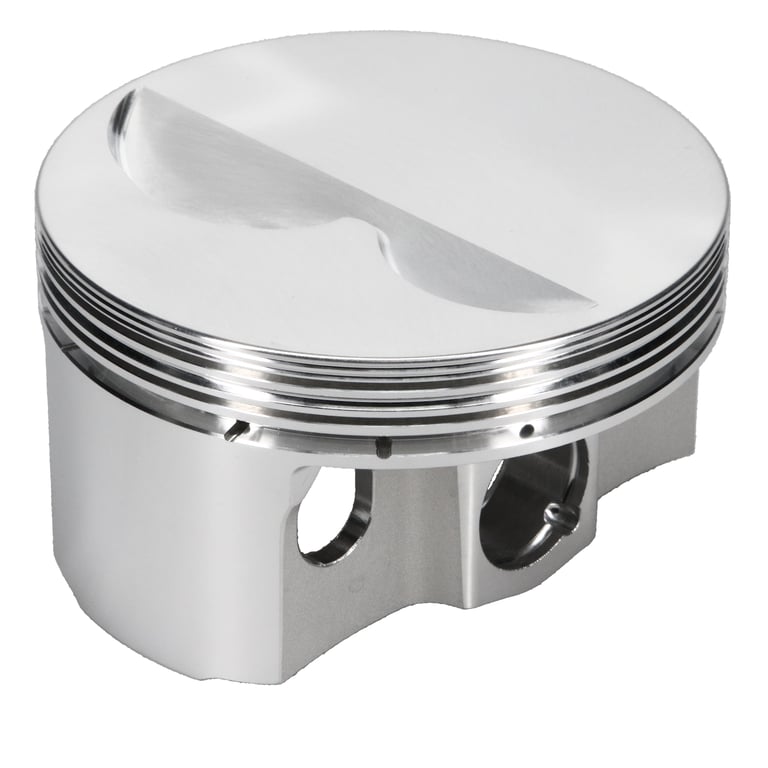

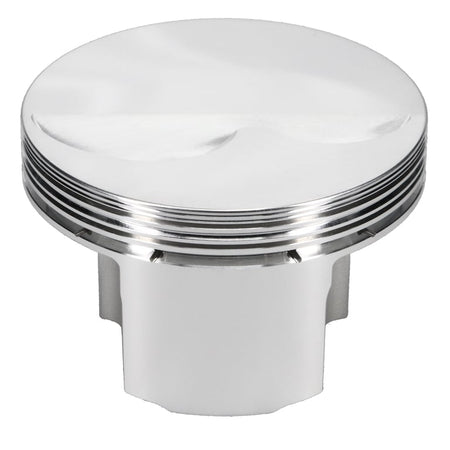

JE Pistons 305 Series Piston Kit

SKU: BHXG-393804
(0)
Out of stock
$734.99

Got questions?
Feel free to get in touch

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Patented Dual Velocity Gas Ports combine the benefits of traditional gas ports, reducing ring flutter and movement while optimizing fuel efficiency and power output?without the risk of carbon build-up
  • Made 100% in the USA
Vehicle Specific
  • Chevrolet 350 SBC - Stock Car

Attributes:

  • Brand Name: JE Pistons
  • GTIN: 00193564563477
  • Add-On: 927-2250-15-51C
  • Bore Diameter: 4.055
  • Bore Diameter - Web: 4.055 IN
  • Compression Height: 1.250
  • Engine: Small Block
  • Engine Type: ICE
  • Industry: Automotive
  • Make: Chevrolet
  • Piston Head Type: Flat Top
  • Piston Material: 2618
  • Piston Quantity: 8
  • Piston Series: JE Pistons
  • Piston Volume: -3.80
  • Product Market: Domestic
  • Product Type: Engine Piston Kit
  • Wrist Pin Length: 2.250
  • Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
  • Wrist Pin Outer Diameter: 0.927
  • Wrist Pin Wall Thickness: 0.150

Extended Information:

  • Country of Origin: US
  • Emissions : Racing or Pre-Emissions Use Only

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 12 x 6 inches
  • Weight: 12.5 POUNDS
