Home » JE Pistons ATV/UTV Series 2012-2014 Arctic Cat 1000i WILD CAT/2009-2017 PROWLER 1000/2009-2017 TRV 1000 Piston Kit
JE Pistons

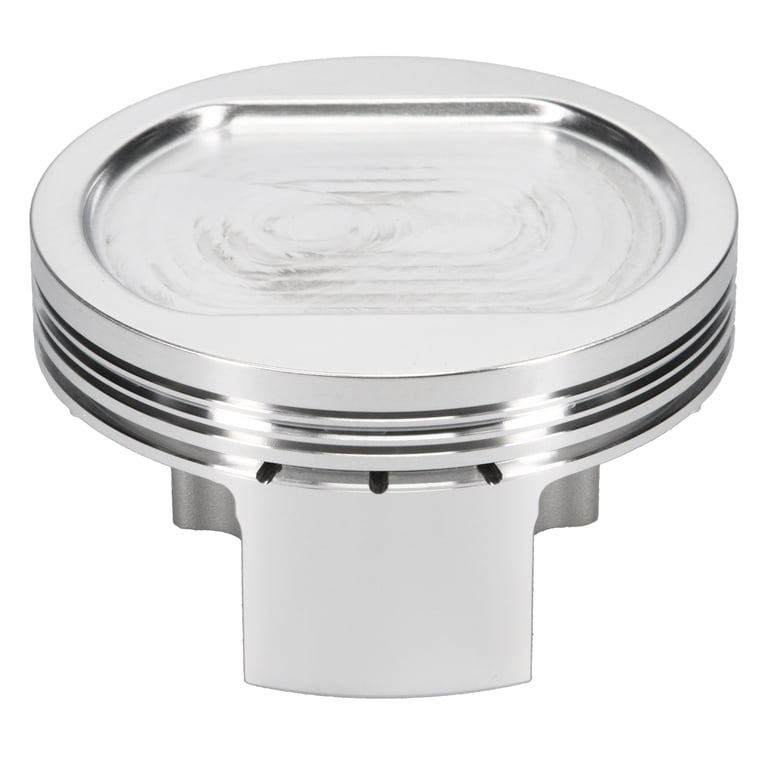

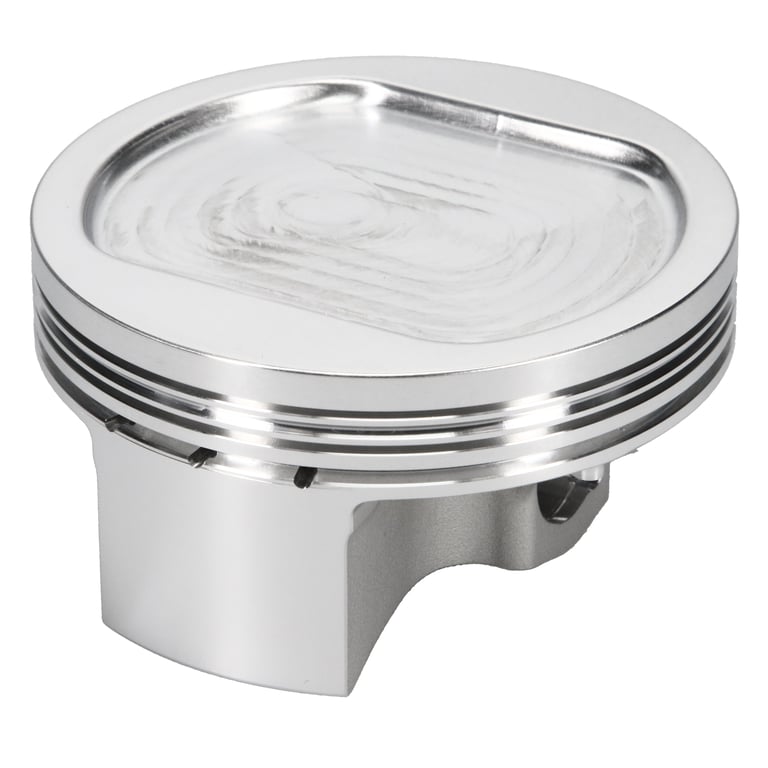

JE Pistons ATV/UTV Series 2012-2014 Arctic Cat 1000i WILD CAT/2009-2017 PROWLER 1000/2009-2017 TRV 1000 Piston Kit

SKU: BHXG-317194
(0)
In stock
Usually ships within 24 hours
$551.99

Got questions?
Feel free to get in touch

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its carefully developed line of premium forged pistons for UTV engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and use application to provide the ultimate combination of durability and performance. Covering all popular models like Can Am Maverick X3, Polaris RZR, and more from closed course to open trail, JE Pistons? performance has been proven to thrive in the high-load environments of UTV engines. Equip your SxS with the best in forged pistons.
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Vehicle Specific
  • ARCTIC CAT 12-14 1000i WILD CAT, 09-17 PROWLER/TRV 1000

Attributes:

  • Brand Name: JE Pistons
  • GTIN: 00193564029270
  • Add-On: JG1001-3622
  • Bore Diameter: 92.00
  • Bore Diameter - Web: 92.00 MM
  • Compression Ratio Actual: 11.50:1
  • Cylinder Head: ARCTIC CAT
  • Engine Type: ICE
  • Forging Type: FSR
  • Industry: Powersports
  • Oil Ring Thickness: 0.111
  • Piston Average Weight: 305
  • Piston Head Type: Dish
  • Piston Material: 2618
  • Piston Series: JE Pistons
  • Piston Volume: -1.40
  • Product Market: UTV
  • Product Type: Engine Piston Kit
  • Ring Set Included: Yes
  • Second Compression Ring Thickness: 0.0480
  • Top Compression Ring Thickness: 0.0400
  • Wrist Pin Length: 2.050
  • Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
  • Wrist Pin Outer Diameter: 0.787
  • Wrist Pin Wall Thickness: 0.160

Extended Information:

  • Country of Origin: US
  • Emissions : Racing or Pre-Emissions Use Only

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 5 x 5 x 5 inches
  • Weight: 2.3 POUNDS
