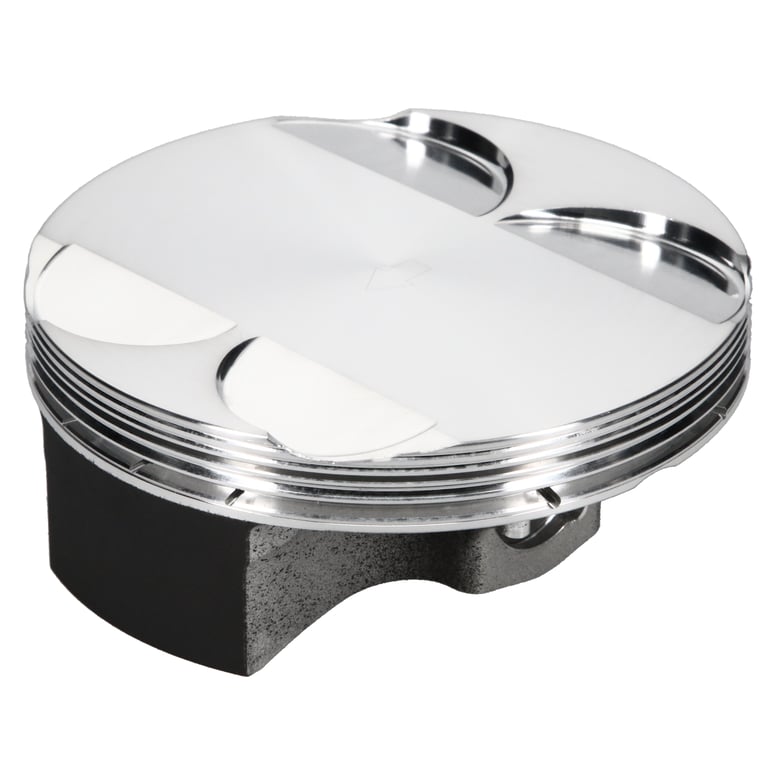

JE Pistons Offroad Pro Series 2007-2012 KTM 450 SX-F/2007-2010 XC-F Piston Kit
Regular price
$309.99
Couldn't load pickup availability
Got questions?
Feel free to get in touch
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of Pro Series pistons for powersports engines. Engineered, forged and machined 100% in the USA, JE Pro Series ATV pistons are designed for each specific engine and racing application with input from professional-level teams and racers. From motocross to dirt track and everything in between, JE Pistons? Pro Series are the ultimate forged piston choice for ATV competition.
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Race-inspired two-ring design promotes quick revving and throttle response for noticeable power
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
- KTM 07-12 450 SX-F, 07-10 XC-F, 09-11 450 SX
- PRO-SERIES
Attributes:
- Brand Name: JE Pistons
- GTIN: 00193564028433
- Add-On: OEM
- Bore Diameter: 97.00
- Bore Diameter - Web: 97.00 MM
- Compression Ratio Actual: 13.50:1
- Cylinder Head: 4 VALVE 450
- Engine Type: ICE
- Forging Type: FSR
- Industry: Powersports
- Oil Ring Thickness: 0.0795
- Piston Average Weight: 266
- Piston Head Type: Dome
- Piston Material: 2618
- Piston Series: Pro Series
- Piston Volume: 3.00
- Product Market: Off-Road
- Product Type: Engine Piston Kit
- Ring Set Included: No
- Top Compression Ring Thickness: 0.0285
- Wrist Pin Length: 2.050
- Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
- Wrist Pin Outer Diameter: 0.748
- Wrist Pin Wall Thickness: 0.160
Extended Information:
- Country of Origin: US
- Emissions : Racing or Pre-Emissions Use Only
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5 x 5 x 5 inches
- Weight: 0.9 POUNDS
