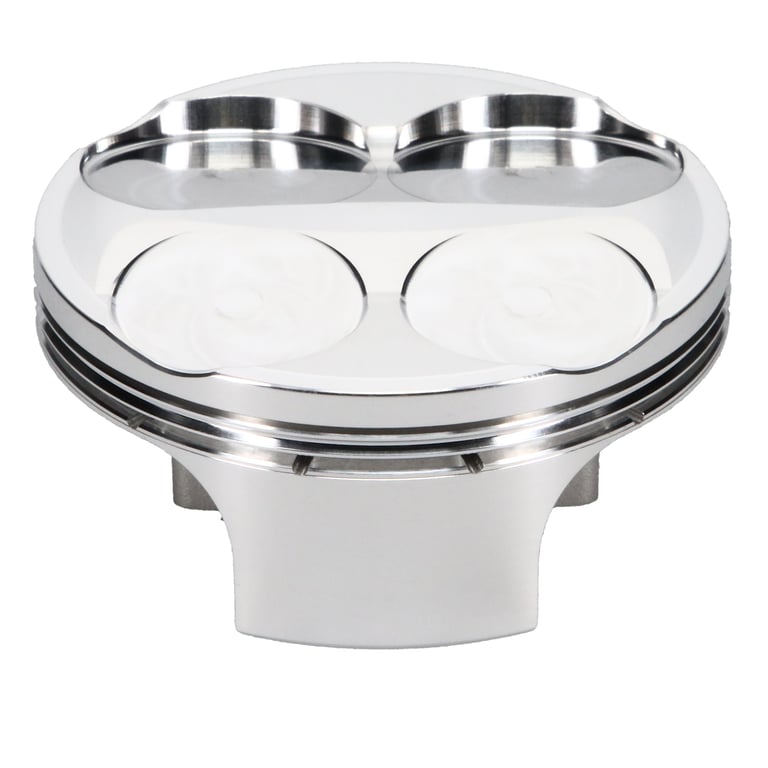

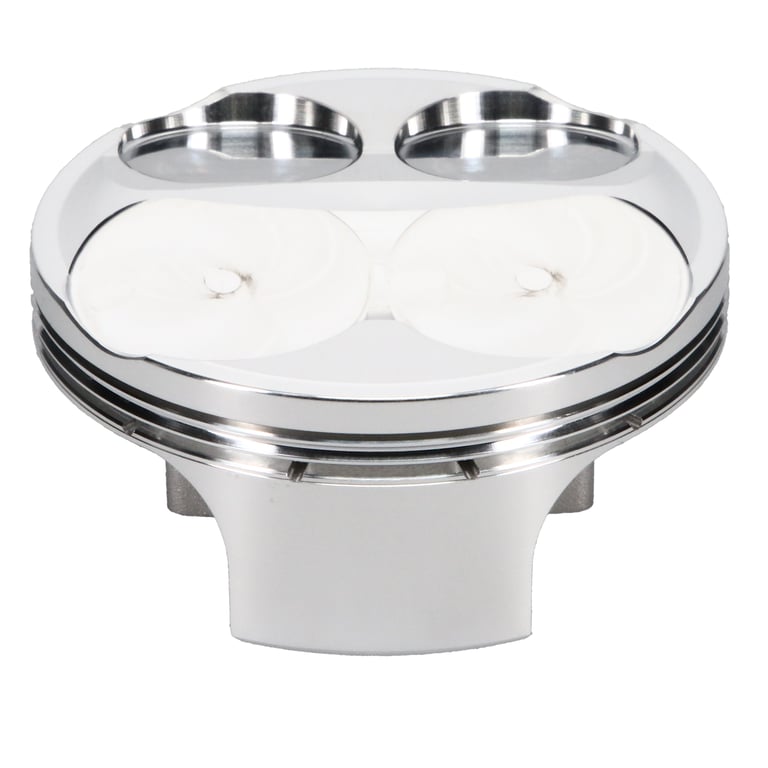

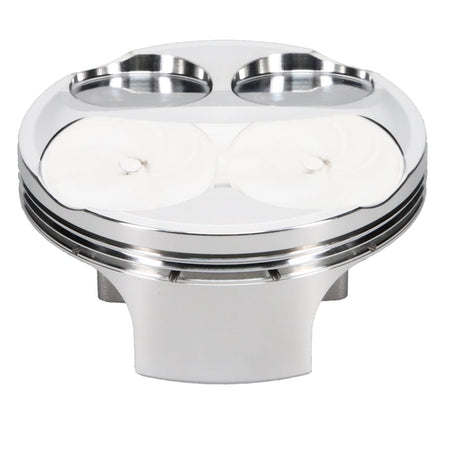

JE Pistons Offroad Pro Series 2025 Kawasaki KX 250 Piston Kit
Regular price
$432.99
Couldn't load pickup availability
Got questions?
Feel free to get in touch
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for dirt bike and other off-road motorcycle engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the motocross track to the trail and everything in between, JE Pistons? performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons.
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
- KAWASAKI 20 KX250
Attributes:
- Brand Name: JE Pistons
- GTIN: 00193564563873
- Add-On: 7800MC
- Bore Diameter: 78.00
- Bore Diameter - Web: 78.00 MM
- Compression Height: 0.789
- Compression Ratio Actual: 14.00:1
- Cylinder Head: KX250
- Engine Type: ICE
- Forging Type: FSR
- Industry: Powersports
- Oil Ring Thickness: 0.0585
- Piston Average Weight: Call
- Piston Head Type: Dome
- Piston Material: 2618
- Piston Series: Pro Series
- Piston Volume: -3.40
- Product Market: Off-Road
- Product Type: Engine Piston Kit
- Ring Set Included: Yes
- Top Compression Ring Thickness: 0.0320
- Wrist Pin Length: 1.500
- Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
- Wrist Pin Outer Diameter: 0.630
- Wrist Pin Wall Thickness: 0.140
Extended Information:
- Country of Origin: US
- Emissions : Racing or Pre-Emissions Use Only
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5 x 5 x 5 inches
- Weight: 0.5 POUNDS
