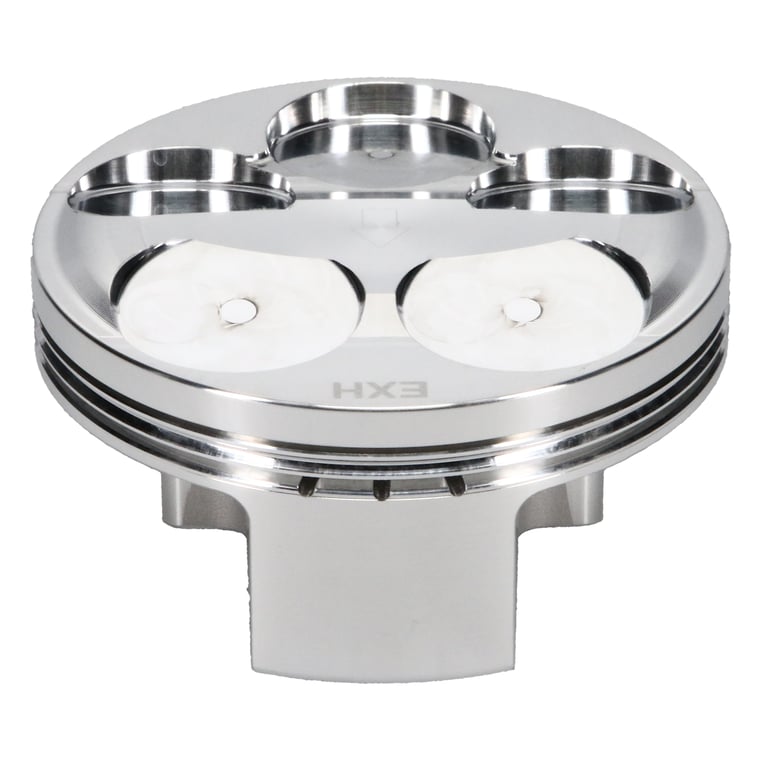

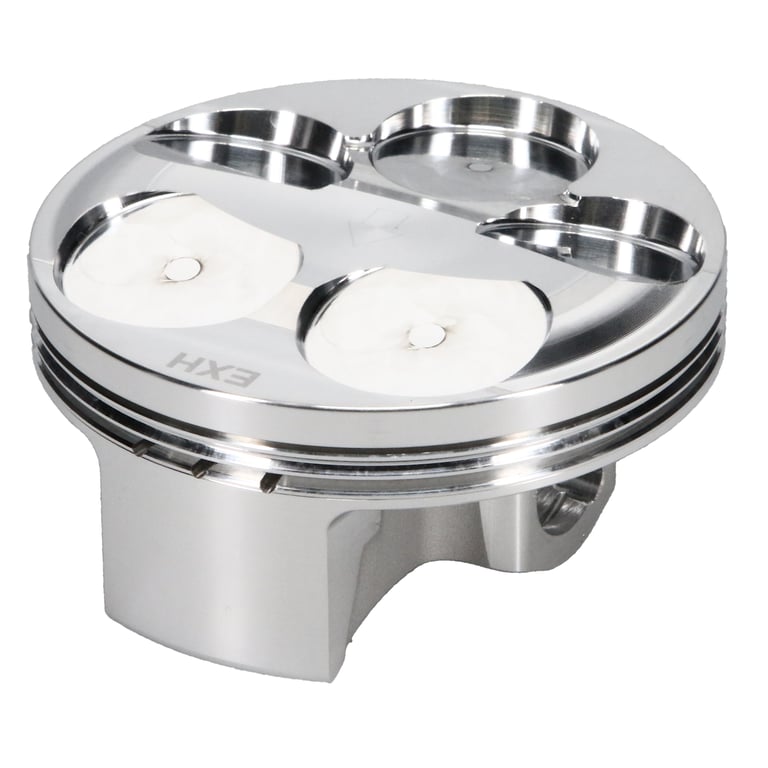

JE Pistons Offroad Series 2010-2015 GAS GAS C250F Piston Kit
Regular price
$325.99
Couldn't load pickup availability
Got questions?
Feel free to get in touch
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for dirt bike and other off-road motorcycle engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the motocross track to the trail and everything in between, JE Pistons? performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons.
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
- YAMAHA 05-13 YZ250,WR250F 5-VALVE , GAS GAS 10-15 EC 250F
Attributes:
- Brand Name: JE Pistons
- GTIN: 00193564220554
- Add-On: JC3501-3031
- Bore Diameter: 77.00
- Bore Diameter - Web: 77.00 MM
- Compression Ratio Actual: 14.00:1
- Cylinder Head: 2005 YZ250F
- Engine Type: ICE
- Forging Type: FSR
- Industry: Powersports
- Oil Ring Thickness: 0.0585
- Piston Average Weight: 170
- Piston Head Type: Dome
- Piston Material: 2618
- Piston Series: JE Pistons
- Piston Volume: -1.86
- Product Market: Off-Road
- Product Type: Engine Piston Kit
- Ring Set Included: Yes
- Top Compression Ring Thickness: 0.0320
- Wrist Pin Length: 1.650
- Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
- Wrist Pin Outer Diameter: 0.630
- Wrist Pin Wall Thickness: 0.120
Extended Information:
- Country of Origin: United States
- Emissions : Racing or Pre-Emissions Use Only
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5 x 5 x 5 inches
- Weight: 0.7 POUNDS
