Home » Mercedes 190E 2.3-16/2.5-16 Aluminum High-Performance Radiator
CSF Cooling - Racing & High Performance Division

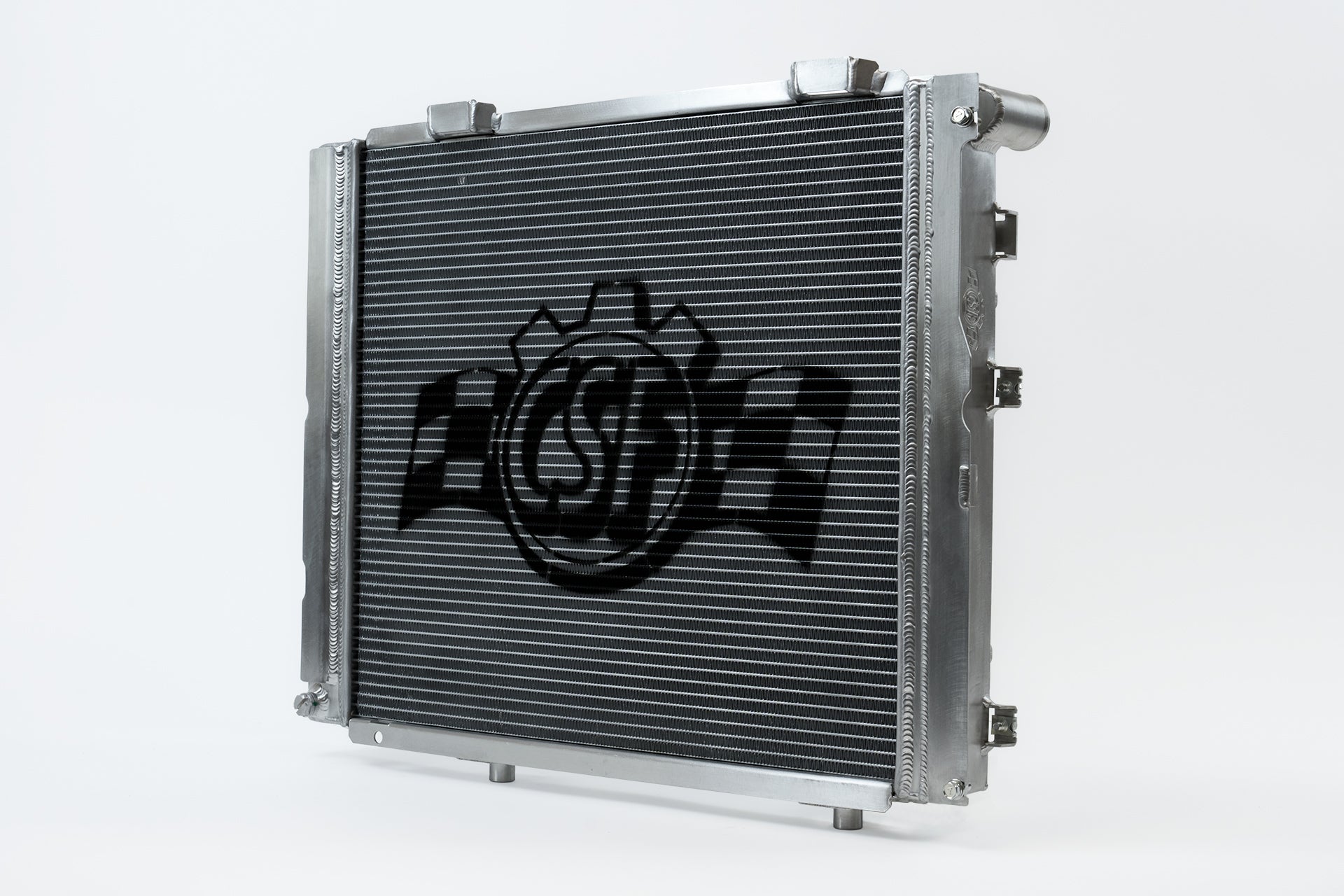

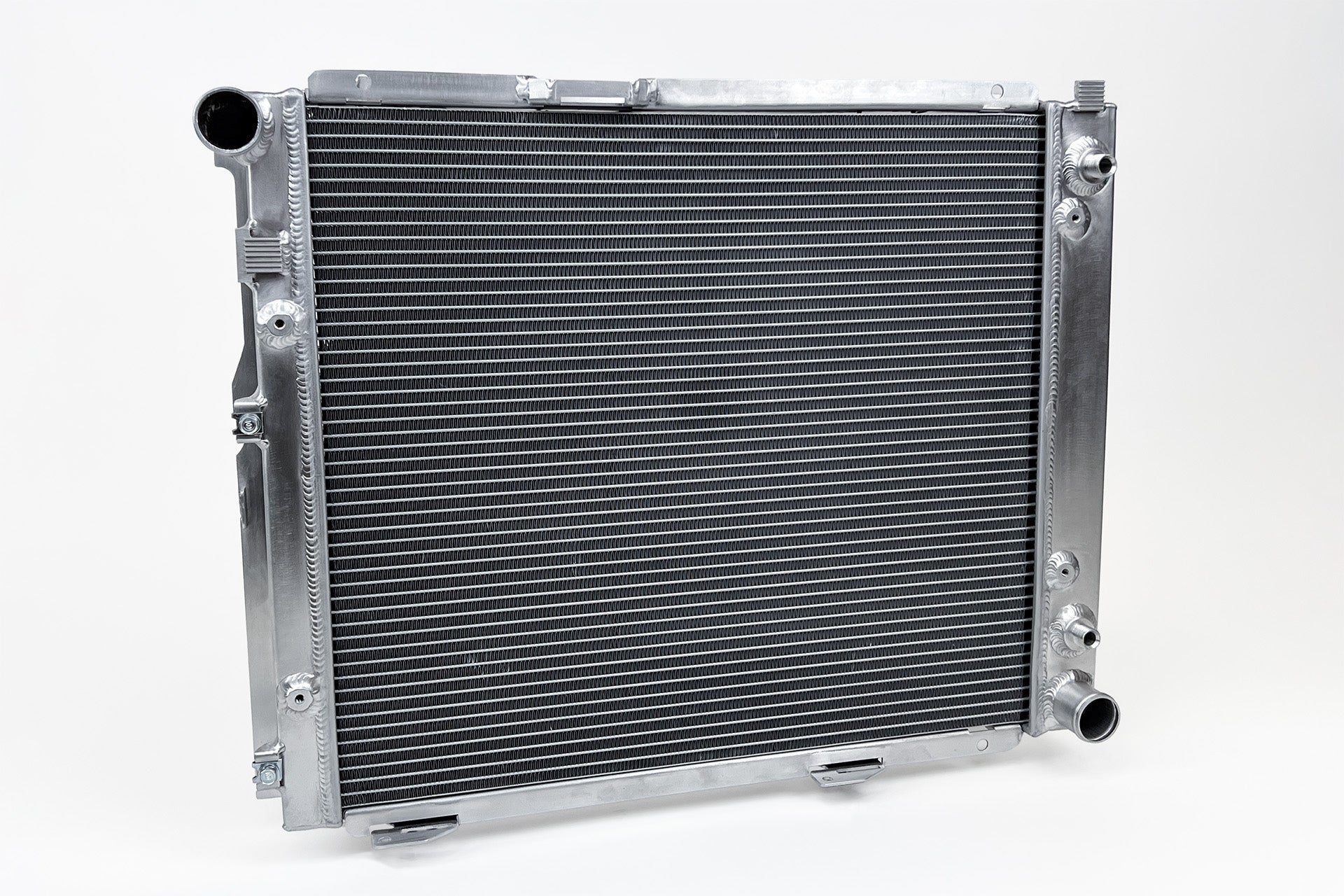

Mercedes 190E 2.3-16/2.5-16 Aluminum High-Performance Radiator

SKU: GQPL-7220
(0)
In stock
Usually ships within 24 hours
$799.00

Got questions?
Feel free to get in touch

For those interested in removing their factory AC condenser in favor of an oil cooler, CSF added threaded bolt inserts (M8 x 1.25) for mounting an oil cooler. You'll need to fabricate your own brackets, but we recommend using the CSF #8110 (Dual-Pass) or 8111 (Single-Pass) Universal Oil Cooler. This is mainly targeted towards track/race applications. However, anyone who has already removed or plans to remove the factory AC system can benefit from a larger oil cooler.
  • 2-Row, 42mm Ultra-High-Performance Dual Pass Core
  • 2-Year Limited Warranty
  • Cooling Tubes with CSF's Exclusive B-Tube Technology
  • 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
  • CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
  • 100% All Aluminum TIG-Welded Construction
  • Satin Finish
  • True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
  • Individually Leak and Pressure Tested
  • Includes CNC Cut Fan Mounting Brackets for a 16 inch SPAL Fan (Low Profile SPAL Fan PN: 30100400 - Medium Profile SPAL Fan PN: 30101516)

Attributes:

  • Brand Name: CSF Cooling - Racing & High Performance Division
  • GTIN: 00710353072202
  • ADD-ON: 8110
  • Coolant Hose Inlet Connection Type: OE Type Connection
  • Coolant Hose Outlet Connection Type: OE Type Connection
  • Core Height: 490mm
  • Core Material: Aluminum
  • Core Row Quantity: 2
  • Core Thickness: 42mm
  • Core Width: 450mm
  • Down Flow Or Cross Flow Type: Cross Flow
  • Finish/Color: Satin
  • Frame Included: No
  • Grade Type: Performance
  • Inlet Connector Type: Slip On
  • Inlet Diameter: 35mm
  • Inlet Location: Top Left
  • Installation Type: Drop-In Fit Installation
  • Internal Engine Oil Cooler: No
  • Internal Transmission Oil Cooler: No
  • Mounting Hardware Included: No
  • Mounting Type: Mounts with OE Hardware
  • Outlet Connector Type: Slip On
  • Outlet Diameter: 35mm
  • Outlet Location: Bottom Right
  • Radiator Cap Included: No
  • Tank Material: Aluminum
  • Thermostat Included: No

Extended Information:

  • Country of Origin: ID
  • Emissions : Emissions Compliance Exempt

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 22 x 7 inches
  • Weight: 19 POUNDS
