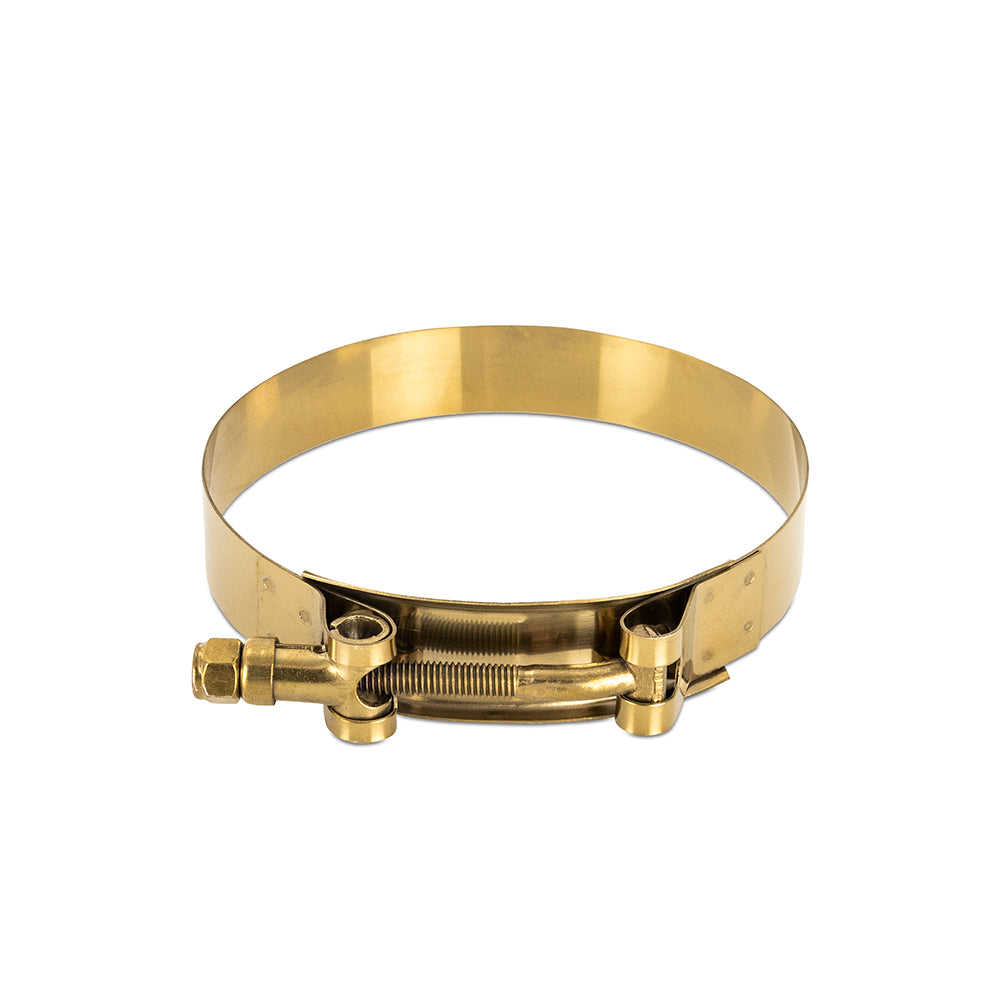

Mishimoto MMCLAMP-4GD T-Bolt Clamp Stainless-Steel Gold 3.86in (97.99 Mm) To 4.17 In (105.99 Mm)

Mishimoto T-bolt clamps are a great solution for projects that need more clamping force than a standard worm gear clamp can provide. Built from the same stainless steel as our worm gear clamps, these T-bolt clamps are as durable as they are strong. The T-bolt design provides superior clamping power while the included locking nut keeps the clamp tight against any vibration. Available in a wide range of sizes, these clamps are an excellent choice for a variety of applications. Like all Mishimoto clamps, this T-bolt clamp is backed by our Mishimoto Lifetime Warranty.

• Securely clamps pipes, couplers, and hoses with an outer diameter from 3.86" (97.99 mm) to 4.17" (105.99 mm)
• T-bolt design provides a strong and secure grip
• Included self-locking nut prevents loosening with movement and vibration

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197707081
• Band Width: 0.75
• Color: Gold
• Finish: Plain
• Grade Type: Premium
• Install Difficulty: 1
• Material: Stainless Steel
• Maximum Diameter: 4.17
• Minimum Diameter: 3.86
• OptionLabel: Gold
• Recommended Torque: 27
• Reusable: Yes
• SAE Size: 68
• SAE Type: F
• SellingPoint01: Securely clamps pipes, couplers, and hoses with an outer diameter from 3.86" (97.99 mm) to 4.17" (105.99 mm)
• SellingPoint02: T-bolt design provides a strong and secure grip
• SellingPoint03: Included self-locking nut prevents loosening with movement and vibration
• SellingPoint04: Stainless steel construction resists corrosion longer than zinc-plated clamps
• SellingPoint05: Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
• SellingPoint06: Clamps sold individually
• SellingPoint07: Mishimoto Lifetime Warranty
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• Size: 4
• Spring Material: Steel
• TechSpec Band Width (in): 0.75
• TechSpec Clamp Style: T-Bolt Clamp
• TechSpec Includes: (1) Mishimoto Stainless Steel T-Bolt Clamp--Mishimoto Lifetime Warranty
• TechSpec Material: Stainless Steel
• TechSpec Maximum Clamp Diameter (in): 4.17
• TechSpec Minimum Clamp Diameter (in): 3.86
• TechSpec Note: If using this clamp, we recommend purchasing:--MMICP-SS-25U----MMICP-SS-3U
• TechSpec Recommended Tightening Torque: 27 in-lbs (3 NM)
• TechSpec SAE Number: N/A
• Type: T-Bolt

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.4 x 9.9 x 0.2 inches
• Weight: 0.15 POUNDS
