Home » Mishimoto MMCLAMP-CTWG-92GD Worm Gear Clamp Constant Tension Gold 2.76in To 3.62 In
Mishimoto

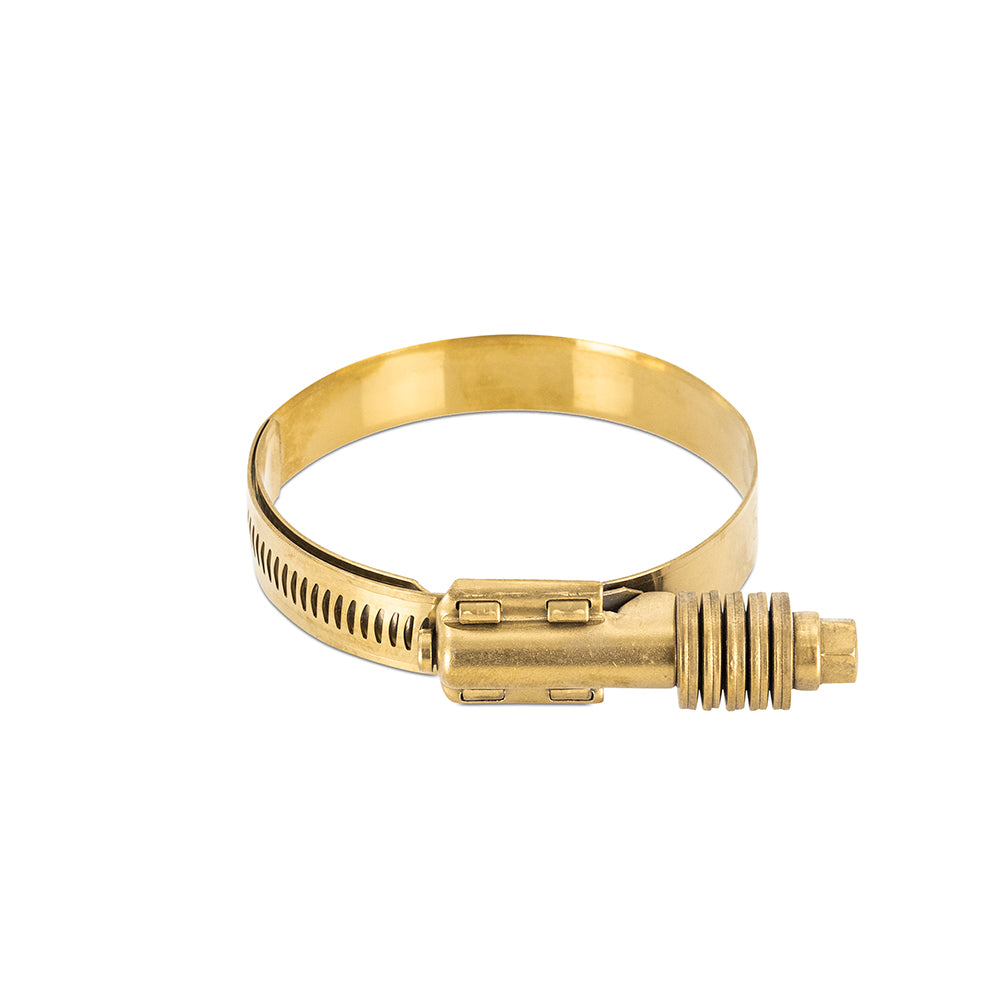

Mishimoto MMCLAMP-CTWG-92GD Worm Gear Clamp Constant Tension Gold 2.76in To 3.62 In

SKU: FLDS-MMCLAMP-CTWG-92GD
(0)
In stock
Usually ships within 24 hours
$12.00

Got questions?
Feel free to get in touch

Just like our high-torque worm gear clamps, Mishimoto's Constant Tension Worm Gear Clamps are an effective solution to a wide range of clamping needs. Where this constant tension worm gear clamp excels, however, is in high-temperature applications. The spring on the adjustment bolt allows the clamp to exert continuous pressure through a wide range of temperatures to ensure your parts stay clamped as strong as the day you installed them. This constant tension worm gear clamp is made from stainless steel to weather any environment and ensure a tight seal for years to come. Our constant tension worm gear clamps are also available in a wide variety of other sizes to suit everything from coolant lines to intake pipes. Like all Mishimoto products, this constant tension worm gear clamp is backed by our Mishimoto Lifetime Warranty.
  • Securely clamps pipes, couplers, and hoses with an outer diameter from 2.76- 3.62-in (70mm-92mm)
  • Constant tension spring maintains clamping pressure through a wide range of temperatures
  • Worm gear design for quick and easy tightening

Attributes:

  • Brand Name: Mishimoto
  • GTIN: 00840197707364
  • Band Width: 0.62
  • Color: Gold
  • Finish: Plain
  • Grade Type: Premium
  • Install Difficulty: 1
  • Material: Stainless Steel
  • Maximum Diameter: 3.62
  • Minimum Diameter: 2.76
  • OptionLabel: Gold
  • Recommended Torque: 168
  • Reusable: Yes
  • SAE Size: 58
  • SAE Type: F
  • SellingPoint01: Securely clamps pipes, couplers, and hoses with an outer diameter from 2.76- 3.62-in (70mm-92mm)
  • SellingPoint02: Constant tension spring maintains clamping pressure through a wide range of temperatures
  • SellingPoint03: Worm gear design for quick and easy tightening
  • SellingPoint04: Stainless steel construction resists corrosion longer than zinc-plated clamps
  • SellingPoint05: Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
  • SellingPoint06: Clamps sold individually
  • SellingPoint07: Mishimoto Lifetime Warranty
  • SellingPoint08: N/A
  • SellingPoint09: N/A
  • SellingPoint10: N/A
  • SellingPoint11: N/A
  • SellingPoint12: N/A
  • SellingPoint13: N/A
  • SellingPoint14: N/A
  • SellingPoint15: N/A
  • Size: 3.62
  • Spring Material: Steel
  • TechSpec Band Width (in): 0.62
  • TechSpec Clamp Style: Constant Tension Worm Gear Clamp
  • TechSpec Includes: (1) Mishimoto Constant Tension Worm Gear Clamp--Mishimoto Lifetime Warranty
  • TechSpec Material: Stainless Steel
  • TechSpec Maximum Clamp Diameter (in): 3.62
  • TechSpec Minimum Clamp Diameter (in): 2.76
  • TechSpec Note: If using this clamp, we recommend purchasing:--MMICP-SS-21----MMICP-SS-250----MMICP-SS-259----MMICP-SS-251----MMICP-SS-30----MMICP-SS-39----MMICP-SS-31
  • TechSpec Recommended Tightening Torque: 14 lb-ft (20 NM)
  • TechSpec SAE Number: 362
  • Type: Worm Gear

Extended Information:

  • Country of Origin: CN
  • Emissions : Emissions Compliance Exempt

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 9.6 x 8.5 x 0.2 inches
  • Weight: 0.2 POUNDS
