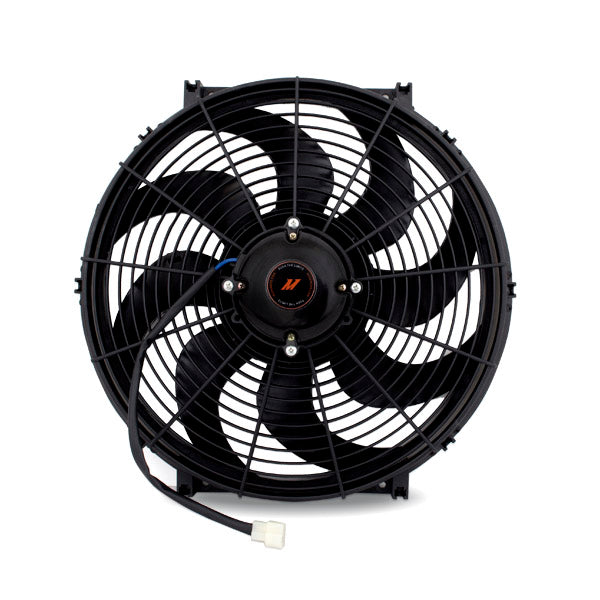

Mishimoto MMFAN-16HD High-Flow Race Line Electric Fan 16 In

SKU: FLDS-MMFAN-16HD
(0)
In stock
Usually ships within 24 hours
$243.00

Got questions?
Feel free to get in touch

Provide your radiator with the maximum amount of airflow with our new 16in Race Line fan. Our Race Line fans were designed for heavy-duty applications where a Slim Line fan just won't cut it. However, this robust fan is still thin enough to fit between your engine and radiator in most applications and provides 2200 CFM of airflow to cool the largest and most powerful of engines! For universal installation, use the Mishimoto Electric Fan Mounting Kit.
  • High-flow fan provides increased airflow
  • Compact design with a housing diameter of 16-in and an overall thickness of 4.35-in provides sufficient clearance in the engine bay
  • Universal fitment

Attributes:

  • Brand Name: Mishimoto
  • GTIN: 00748354011883
  • Amperage Rating: 22
  • Blade Color: Black
  • Blade Included: Yes
  • Blade Material: Plastic
  • Blade Quantity: 8
  • Blade Type: Curved
  • Control Module Included: No
  • Electrical Or Mechanical: Electrical
  • Fan Clutch Mounted: No
  • Grade Type: Performance
  • Hub Depth: 4.35
  • Install Difficulty: 3
  • Maximum CFM: 2200
  • Maximum RPM: 2000
  • Motor Included: Yes
  • Mounting Bracket Included: Yes
  • Mounting Hardware Included: No
  • Outside Diameter: 16
  • Reversible: No
  • SellingPoint01: High-flow fan provides increased airflow
  • SellingPoint02: Compact design with a housing diameter of 16-in and an overall thickness of 4.35-in provides sufficient clearance in the engine bay
  • SellingPoint03: Universal fitment
  • SellingPoint04: Many sizes available
  • SellingPoint05: Mishimoto Lifetime Warranty
  • SellingPoint06: N/A
  • SellingPoint07: N/A
  • SellingPoint08: N/A
  • SellingPoint09: N/A
  • SellingPoint10: N/A
  • SellingPoint11: N/A
  • SellingPoint12: N/A
  • SellingPoint13: N/A
  • SellingPoint14: N/A
  • SellingPoint15: N/A
  • Shroud Included: Yes
  • Shroud Material: Acrylonitrile Butadiene Styrene (ABS)
  • TechSpec Airflow Direction: Pull
  • TechSpec Amp Draw (Running): 18
  • TechSpec Amp Draw (Start): 22.1
  • TechSpec Applications: Reversing polarity can enable pusher functionality, but the original design optimization for puller configuration may limit performance. Long-term effects of this configuration are uncertain.
  • TechSpec Blade Style: Curved
  • TechSpec CFM: 2200
  • TechSpec Depth (in): 4.35
  • TechSpec Diameter (in): 16
  • TechSpec Includes: (1) Mishimoto Fan--Mounting Kit:--(4) Heavy-Duty Plastic Fasteners--(8) Adhesive Foam Protective Pads--(4) Dampening Springs--(4) Fastener End Connectors--Mishimoto Lifetime Warranty
  • TechSpec Installation Notes: Mishimoto recommends the use of a fan shroud for optimal operation.
  • TechSpec RPM: 2000
  • TechSpec Reversible?: False
  • TechSpec Wiring Connection: Yazaki Tab Terminal
  • Voltage: 12
  • Wiring Harness Included: No

Extended Information:

  • Country of Origin: CN
  • Emissions : Emissions Compliance Exempt

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 17.2 x 19.1 x 5.3 inches
  • Weight: 8.45 POUNDS
