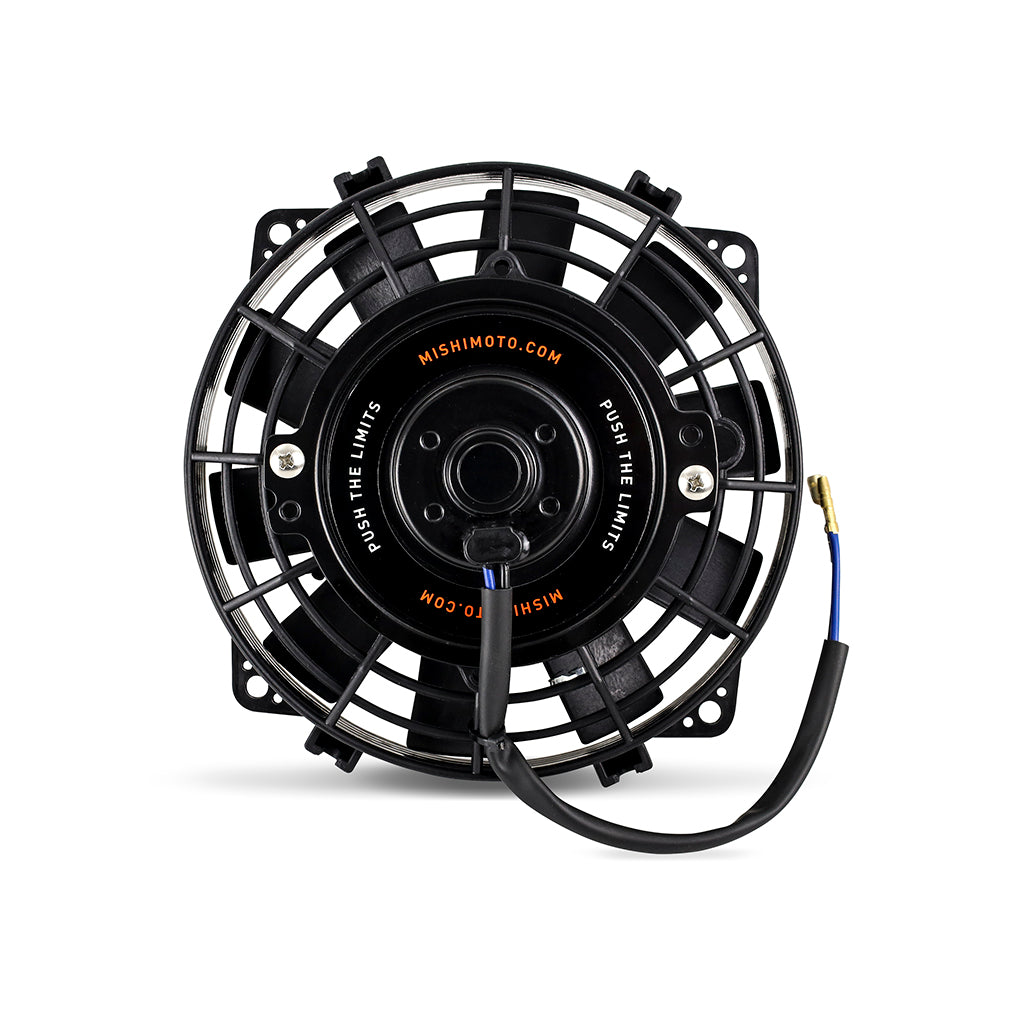

Mishimoto MMFAN-6 Electric Fan Slim Straight Blade Black 6 In

SKU: FLDS-MMFAN-6
(0)
In stock
Usually ships within 24 hours
$71.00

Got questions?
Feel free to get in touch

Small but mighty! The Mishimoto 6" Slim Electric Fan can be used as an upgrade to the OEM fan for more efficient cooling or it can be utilized to resolve fitment issues with aftermarket products. Measuring only 2.36" deep, it can easily be installed flush against a radiator and have room to spare. Included with the fan is a plug connector on the fan wiring and the accompanying connector pigtail for an easy installation. With 415 CFM of flow, it may be compact, but it moves air like that's its job. For universal installation, use our Mishimoto Universal Fan Mount Kit! And as with all our products, this is backed by our Mishimoto Lifetime Warranty.
  • High-flow fan provides 415 cfm of airflow
  • Universal fitment
  • Compact design with a diameter of 6-in and an overall thickness of only 2.36-in provides increased engine bay space

Attributes:

  • Brand Name: Mishimoto
  • GTIN: 00840197711293
  • Amperage Rating: 8
  • Blade Color: Black
  • Blade Included: Yes
  • Blade Material: Plastic
  • Blade Quantity: 10
  • Blade Type: Straight
  • Control Module Included: No
  • Electrical Or Mechanical: Electrical
  • Fan Clutch Mounted: No
  • Grade Type: Performance
  • Hub Depth: 3.14
  • Install Difficulty: 1
  • Maximum CFM: 600
  • Maximum RPM: 3000
  • Motor Included: Yes
  • Mounting Bracket Included: Yes
  • Mounting Hardware Included: No
  • Outside Diameter: 7.28
  • Reversible: Yes
  • SellingPoint01: High-flow fan provides 415 cfm of airflow
  • SellingPoint02: Universal fitment
  • SellingPoint03: Compact design with a diameter of 6-in and an overall thickness of only 2.36-in provides increased engine bay space
  • SellingPoint04: Easily reversible for use as a pusher or puller fan
  • SellingPoint05: Mishimoto Lifetime Warranty
  • SellingPoint06: N/A
  • SellingPoint07: N/A
  • SellingPoint08: N/A
  • SellingPoint09: N/A
  • SellingPoint10: N/A
  • SellingPoint11: N/A
  • SellingPoint12: N/A
  • SellingPoint13: N/A
  • SellingPoint14: N/A
  • SellingPoint15: N/A
  • Shroud Included: Yes
  • Shroud Material: Acrylonitrile Butadiene Styrene (ABS)
  • TechSpec Airflow Direction: Pull
  • TechSpec Amp Draw (Running): 2.82
  • TechSpec Amp Draw (Start): 8.2
  • TechSpec Applications: N/A
  • TechSpec Blade Style: Straight
  • TechSpec CFM: N/A
  • TechSpec Depth (in): N/A
  • TechSpec Diameter (in): 7.28
  • TechSpec Includes: (1) Mishimoto Fan--(4) Mounting Tabs--Mishimoto Lifetime Warranty
  • TechSpec Installation Notes: Mishimoto recommends the use of a fan shroud for optimal operation.----Reversing polarity and physically flipping the fan blades can enable pusher functionality, but the original design optimization for puller configuration may limit performance.
  • TechSpec RPM: 3000
  • TechSpec Reversible?: True
  • TechSpec Wiring Connection: Female Snap-Plug Terminal
  • Voltage: 12
  • Wiring Harness Included: No

Extended Information:

  • Country of Origin: China
  • Emissions : Emissions Compliance Exempt

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 10.1 x 10 x 2.7 inches
  • Weight: 2.1 POUNDS
