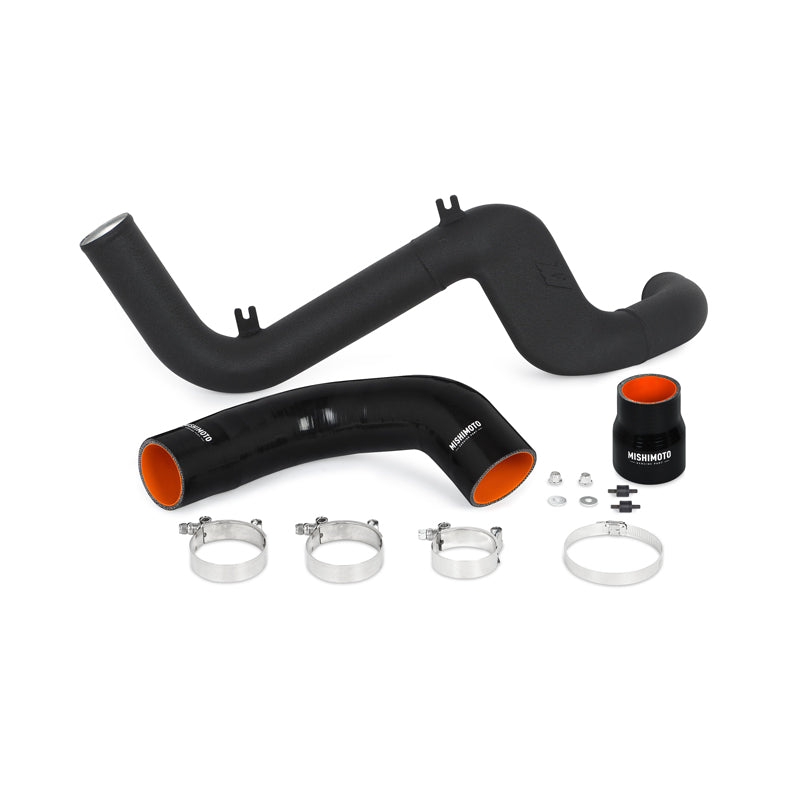

Mishimoto MMICP-RS-16HWBK Intercooler Pipe Kit Black Hot-side Fits Ford Focus RS 2016-2018

To complete our intercooler component lineup for the 2016-2018 Ford Focus RS, we at Mishimoto would like to introduce our Hot-Side Intercooler Pipe. This pipe has a truly innovative design that helps cool more than just air intake temperatures. Not only does it increase internal volume by 40-percent over stock with 2.5 inch inlet and outlet diameters, and maintain an average pressure drop of 45-percent, the cast mid-section retains the use of the factory ducting that directs airflow to the front PTU. A standard cylindrical pipe restricts airflow, and this doesn?t help the known problem of overheating drivetrains when the RS is being pushed to its limits. Our pipe is shaped to cleanly direct air right to the front PTU using that front duct, so airflow isn?t lost like with a traditional pipe design. In addition, this pipe comes with 5-ply, wire-reinforced silicone to attach to the turbo and intercooler, providing superior heat resistance and flexibility to accommodate for engine movement. The pipe can also fit without removing the lower cross bar. The kit comes with all necessary hardware, is a direct fit with no modifications necessary, and is backed by the Mishimoto Lifetime Warranty.

• Silicone boots absorb the stresses of excessive engine movement
• Designed to not block cooling to the PTU
• 45-percent less pressure drop than stock hot-side pipe

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354036282
• Clamp Quantity: 4
• Clamp Type: T-Bolt
• Clamps Included: Yes
• Cold Side Pipe Inside Diameter: 2.5
• Coupler Color: Black
• Coupler Material: Silicone
• Finish: Powder Coated
• Hot Side Pipe Inside Diameter: 2.5
• Install Difficulty: N/A
• Pipe Bend Type: Mandrel
• Pipe Color: Black
• Pipe Material: Aluminum
• Pipe Quantity: 1
• SellingPoint01: Direct fit for the 2016-2018 Ford Focus RS
• SellingPoint02: Silicone boots absorb the stresses of excessive engine movement
• SellingPoint03: Designed to not block cooling to the PTU
• SellingPoint04: 45-percent less pressure drop than stock hot-side pipe
• SellingPoint05: 40-percent increase in internal volume compared to stock hot-side pipe
• SellingPoint06: Both Mishimoto intercooler pipes and Mishimoto intercooler provide 35-percent less pressure drop than stock setup
• SellingPoint07: Improves heat and pressure tolerance
• SellingPoint08: Available in Wrinkle Black powder-coated finish
• SellingPoint09: Fits both stock and Mishimoto Focus RS intercooler
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2016+ Ford Focus RS
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: C346
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Core Type: N/A
• TechSpec Engine Codes: 2.3L EcoBoost GTDi I4
• TechSpec Includes: (1) Hot-Side Intercooler Pipe--(2) Silicone Couplers--(2) Rubber Isolators--(3) Constant-Tension T-Bolt Clamps--(1) High-Torque Worm Gear Clamp--Hardware--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.5
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Note: N/A
• TechSpec Outlet (in): 2.5
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): 28.5
• TechSpec Overall Width (in): N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A

Extended Information:

• Country of Origin: CN
• Emissions : 2

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16.35 x 16.35 x 16.35 inches
• Weight: 9.17 POUNDS
