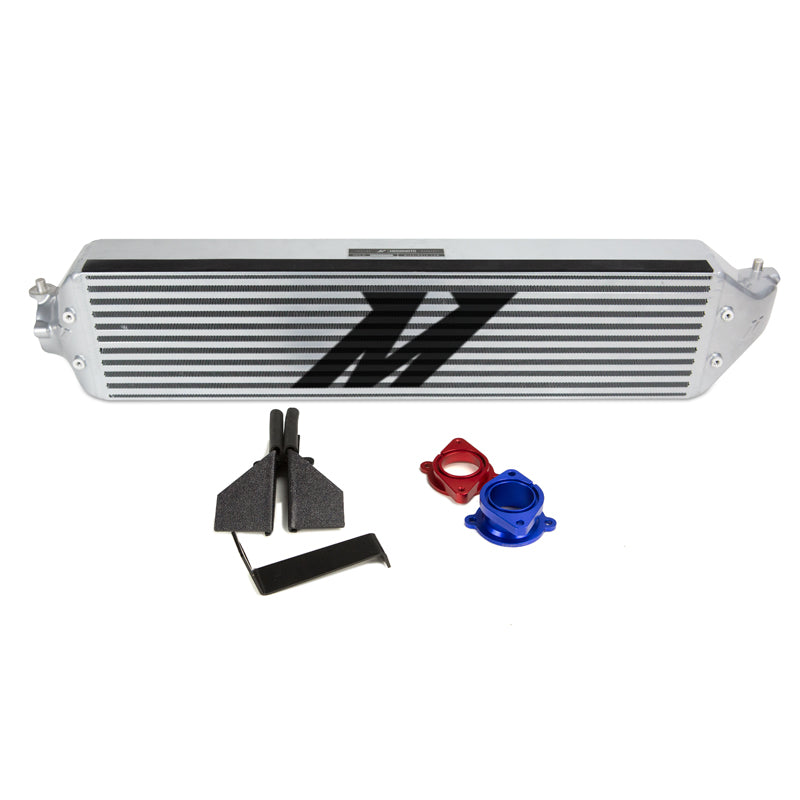

Mishimoto MMINT-CIV-16SL Intercooler Silver Fits Honda Civic 1.5T/Si 2016-2021

Keep the charged air temperatures down in your turbocharged Civic with the 2016+ Honda Civic Performance Intercooler from Mishimoto! In the age of the turbocharger, Honda has finally joined the ranks of forced induction by equipping their tenth generation of the Civic with the L15B7. Where the Earth Dreams technology might be advanced, It'still suffers from an age-old enemy -- heat. The stock intercooler utilizes a tube-and-fin construction coupled with plastic end tanks, giving high temperatures a perfect breeding ground. Our intercooler is designed with the Honda enthusiast in mind and eliminates high charged air temperatures that set up shop in the stock intercooler. The all-aluminum, bar-and-plate construction is specifically designed to shrug off heat generated by compressing air into the intake manifold. Our intercooler also has increased the volume by 102-percent and fin surface area by 97-percent, which helps drop outlet air temperatures by 20 F over the stock intercooler, and up to 42 F once a performance tune is added. The benefits of our upgraded design don't stop with the temperature drop. Our direct-fit intercooler adds up to 4 hp and 8 ft-lbs of torque when combined with the 2016+ Honda Civic Performance Intercooler Piping, with the potential to boost that power gain to 11 hp and 9 ft-lbs of torque with a tune. The Mishimoto 2016+ Honda Civic Performance Intercooler is available in Silver or Black and includes the Mishimoto Lifetime Warranty.

• Patent Pending
• Max power gains of 3 whp and 8 ft-lbs torque on stock tuning
• Increased core size of 102-percent and fin surface area by 97-percent

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580033957
• CARB EO Number: D920,382
• Core Color: Silver
• Core Height: 0
• Core Length: 0
• Core Material: Aluminum
• Core Thickness: 0
• Grade Type: Performance
• Height: 0
• Inlet Fitting Gender: Male
• Inlet Outside Diameter: 0
• Inlet Tank Material: Aluminum
• Install Difficulty: 3
• Length: 0
• OptionLabel: Silver
• Outlet Fitting Gender: Male
• Outlet Outside Diameter: 0
• SellingPoint01: Direct fit for the 2016-2021 Honda Civic 1.5T and Si
• SellingPoint02: Patent Pending
• SellingPoint03: Max power gains of 3 whp and 8 ft-lbs torque on stock tuning
• SellingPoint04: Increased core size of 102-percent and fin surface area by 97-percent
• SellingPoint05: Drops outlet air temperatures by 20F on the stock tune, and 42F with performance tuning
• SellingPoint06: Optimal core design for maximum cooling efficiency with minimal pressure drop
• SellingPoint07: Compatible with stock piping
• SellingPoint08: Available in silver or black
• SellingPoint09: Patent numberD920,382
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2016-2021 Honda Civic 1.5T--2017-2020 Honda Civic Si
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: FC1--FC3--FK4--FK7
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: L15B7
• TechSpec Includes: (1) Mishimoto Intercooler--(1) Stock Piping Adapter Kit--(1) Shrouding Kit--(1) CARB EO Sticker--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Note: N/A
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): 19
• Type: Bar-and-Plate
• Universal Or Specific Fit: Specific
• Width: 0

Extended Information:

• Country of Origin: China
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 38 x 9 x 7 inches
• Weight: 18 POUNDS
