Mishimoto MMINT-TAC-24KBKBK Intercooler Kit Black/Black Fits Toyota Tacoma 2024+

The 2024+ Tacoma's T24A-FTS builds heat soak under repeated load - the factory tube-and-fin intercooler loses cooling capacity across consecutive WOT runs, towing grades, and sustained trail use. The Mishimoto Intercooler and Charge Pipe Kit addresses the full charge air system in one purchase: a 55% larger bar-and-plate core paired with aluminum charge piping, DuraCore™ couplers, and constant-tension clamps, matched from intercooler to throttle body.--The bar-and-plate core cuts intake air temps by up to 36°F at wide-open throttle and delivers 30% lower pressure drop than stock, reducing turbocharger strain and maintaining boost efficiency under load. An included custom shroud directs full airflow to every row of the oversized core - no trimming required. Cast end tanks, billet aluminum ORB ports, updated mounting bushings, and an included crush washer complete the hardware package for a sealed, long-term install.--The system preserves Toyota's adaptive cruise control with no sensor relocation. Fits the 2024+ Toyota Tacoma (T24A-FTS, N400) and 2024+ Toyota Land Cruiser LC250. Available in Silver or Stealth Black intercooler finish with matching Wrinkle Black or Wrinkle Red charge pipes. Compatible with OEM and Mishimoto components for future cooling system expansion. Backed by the Mishimoto Lifetime Warranty.

• Cuts charge air temps by up to 36°F at wide-open throttle — a 55% larger bar-and-plate core provides the heat-sink capacity the factory tube-and-fin unit loses under repeated WOT pulls, towing grades, and sustained off-road operation.
• Reduces turbocharger stress with 30% lower pressure drop than OEM — optimized airflow through the 3.50-in thick core maintains boost pressure and consistent power across the RPM range under sustained demand.
• Included custom shroud ensures full airflow reaches every row of the oversized core — no trimming, no gaps, and no performance loss from an undirected core face that would otherwise undercut the 55% volume increase.

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197726280
• Cold Side Pipe Inside Diameter: 2.22
• Core Color: Black
• Core Construction: Bar-and-Plate
• Core Height: 8.87
• Core Length: 24.13
• Core Material: Aluminum
• Core Thickness: 3.5
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 2.03
• Inlet Diameter: 2.03
• Install Difficulty: 4
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 50
• Maximum Horsepower: 650
• OptionLabel: Black Intercooler, Black Pipes
• Outlet Diameter: 2.22
• Pipe Color: Black
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Cuts charge air temps by up to 36°F at wide-open throttle — a 55% larger bar-and-plate core provides the heat-sink capacity the factory tube-and-fin unit loses under repeated WOT pulls, towing grades, and sustained off-road operation.
• SellingPoint02: Reduces turbocharger stress with 30% lower pressure drop than OEM — optimized airflow through the 3.50-in thick core maintains boost pressure and consistent power across the RPM range under sustained demand.
• SellingPoint03: Included custom shroud ensures full airflow reaches every row of the oversized core — no trimming, no gaps, and no performance loss from an undirected core face that would otherwise undercut the 55% volume increase.
• SellingPoint04: Complete kit includes aluminum charge pipes, DuraCore™ silicone couplers, and constant-tension clamps — everything for a full intercooler system upgrade in a single purchase, with matched Wrinkle Black or Wrinkle Red pipe finishes.
• SellingPoint05: Cast end tanks and billet aluminum ORB ports replace the factory unit's construction — updated mounting bushings and an included crush washer ensure a sealed, rattle-free install matched to OEM mounting points.
• SellingPoint06: Drops in with zero sensor relocation and full Toyota adaptive cruise control function preserved — confirmed direct fit for the 2024+ Toyota Tacoma (T24A-FTS, N400) and 2024+ Toyota Land Cruiser LC250.
• SellingPoint07: Engineered as a matched system from intercooler core to throttle body — all components are sized and tested together, eliminating the flow mismatches and sealing inconsistencies that result from pairing parts across different brands or separate kits.
• SellingPoint08: Own it for life — backed by Mishimoto's Lifetime Warranty, your investment is protected long after install day.
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: Toyota Tacoma 2.4L L4 2024+--Toyota Land Cruiser 2.4L L4 2024+
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: N400
• TechSpec Core Height (in): 8.87
• TechSpec Core Length (in): 24.13
• TechSpec Core Thickness (in): 3.5
• TechSpec Core Type: Bar-And-Plate
• TechSpec Engine Codes: T24A-FTS

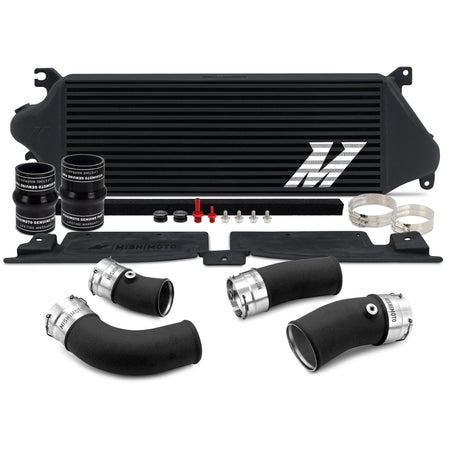

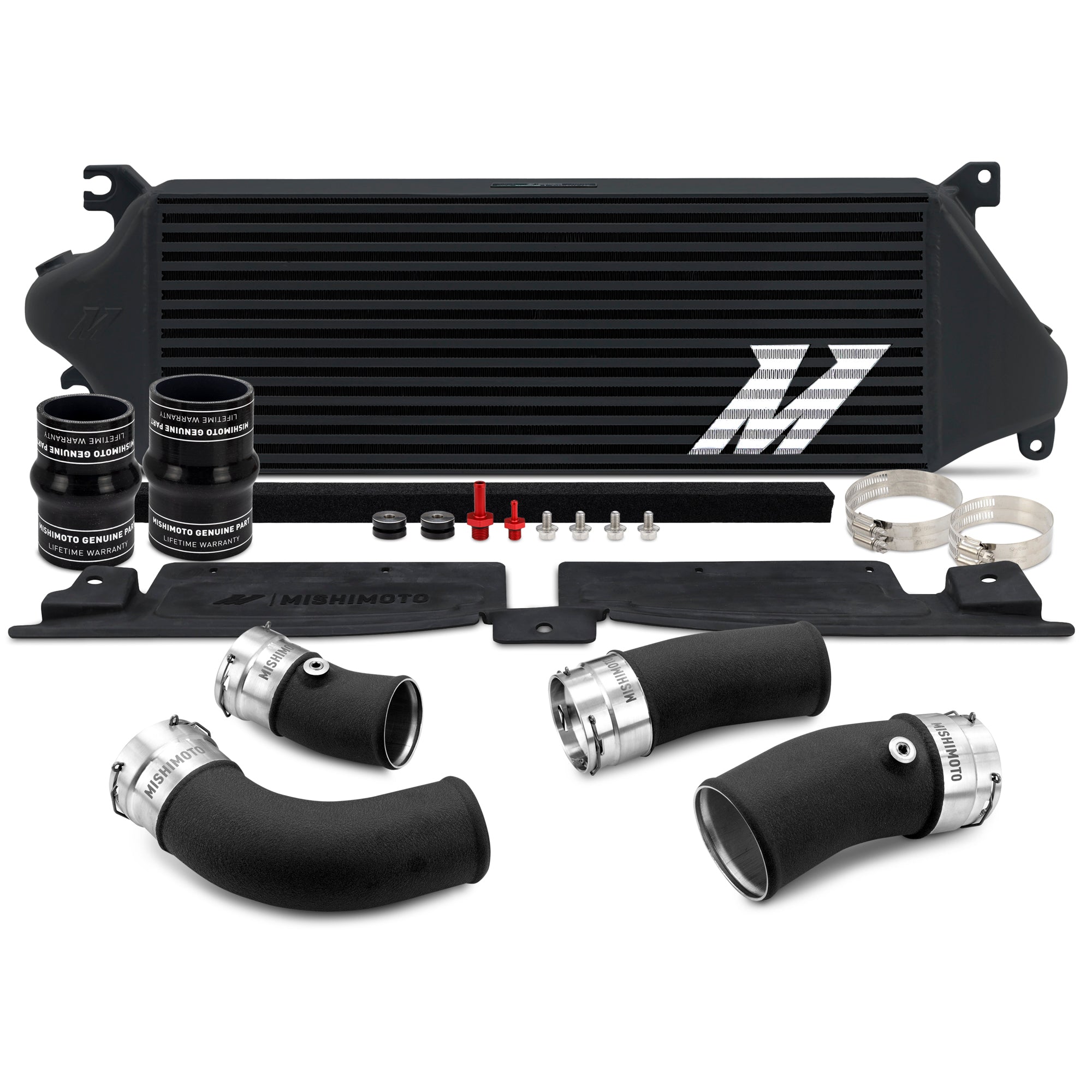

• TechSpec Includes: (1) Performance Intercooler--(2) Vacuum Fittings--(1) Intercooler Duct--(1) Intercooler Duct Bracket--(2) Hot-Side Intercooler Pipes--(2) Cold-Side Intercooler Pipes--(2) Silicone Couplers--(1) Bill Of Materials Notecard--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.03
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 50
• TechSpec Maximum Recommended Horsepower: 650
• TechSpec Note: 2024+ Toyota Land Cruiser (LC250) installation may require removal of a bracket on the top of the AC condenser.
• TechSpec Outlet (in): 2.22
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Pipe Diameter: 2.5" (Hot-Side) 3" (Cold-Side)
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: China
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: BX
• Dimension: 18.81 x 18.81 x 18.81 inches
• Weight: 37 POUNDS
