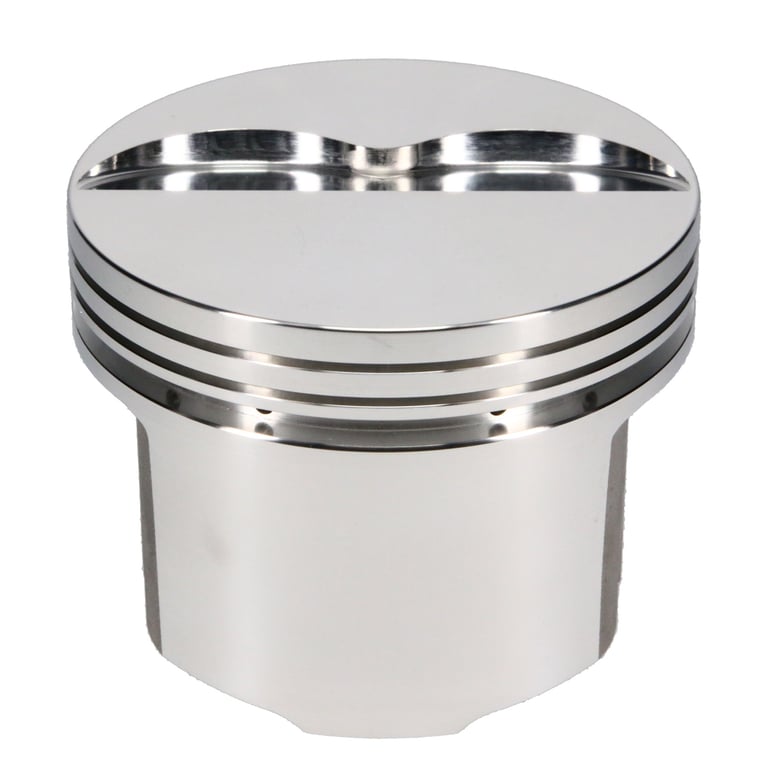

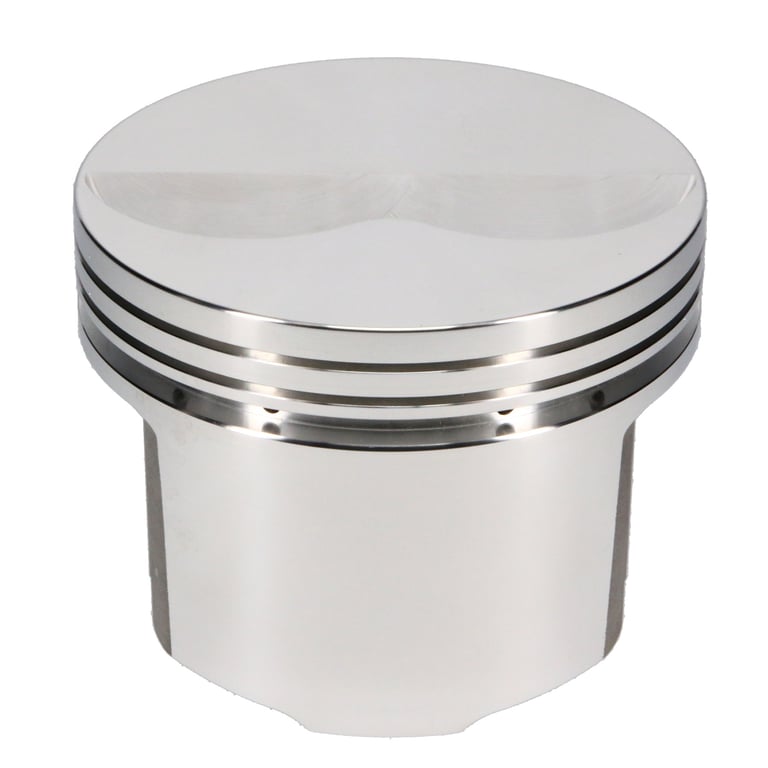

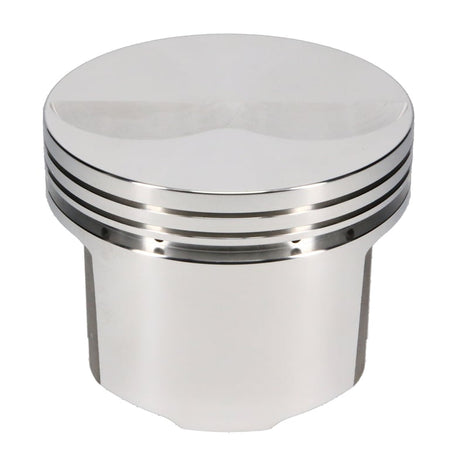

SRP Chrysler 440 Small Block Series Flat Top Piston Kit

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

• Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
• Dedicated forging helps optimize strength and weight throughout the piston design
• Perfect for street/strip applications
• Forced pin oiling for improved pin lubrication
• Made 100% in the USA

Vehicle Specific

• Chrysler Big Block 440

Attributes:

• Brand Name: JE Pistons
• GTIN: 00193564265739
• Add-On: S100S8-4360-5
• Bore Diameter: 4.360
• Bore Diameter - Web: 4.360 IN
• Compression Height: 1.815
• Cylinder Head: 440 WEDGE
• Engine: Big Block
• Engine Type: ICE
• Forging Type: FSR
• Industry: Automotive
• Make: Chrysler
• Oil Ring Thickness: 0.188
• Piston Head Type: Flat
• Piston Material: 4032
• Piston Series: SRP
• Piston Volume: -6.00
• Product Market: Domestic
• Product Type: Engine Piston Kit
• Ring Set Included: No
• Second Compression Ring Thickness: 0.0640
• Top Compression Ring Thickness: 0.0640
• Wrist Pin Length: 2.930
• Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
• Wrist Pin Outer Diameter: 0.990
• Wrist Pin Wall Thickness: 0.180

Extended Information:

• Country of Origin: United States
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 12 x 6 inches
• Weight: 16.2 POUNDS
