SRP Pro Series Ford 302 Small Block Flat Top Piston Kit

SKU: BHXG-367192
(0)
In stock
Usually ships within 24 hours
$855.99

Got questions?
Feel free to get in touch

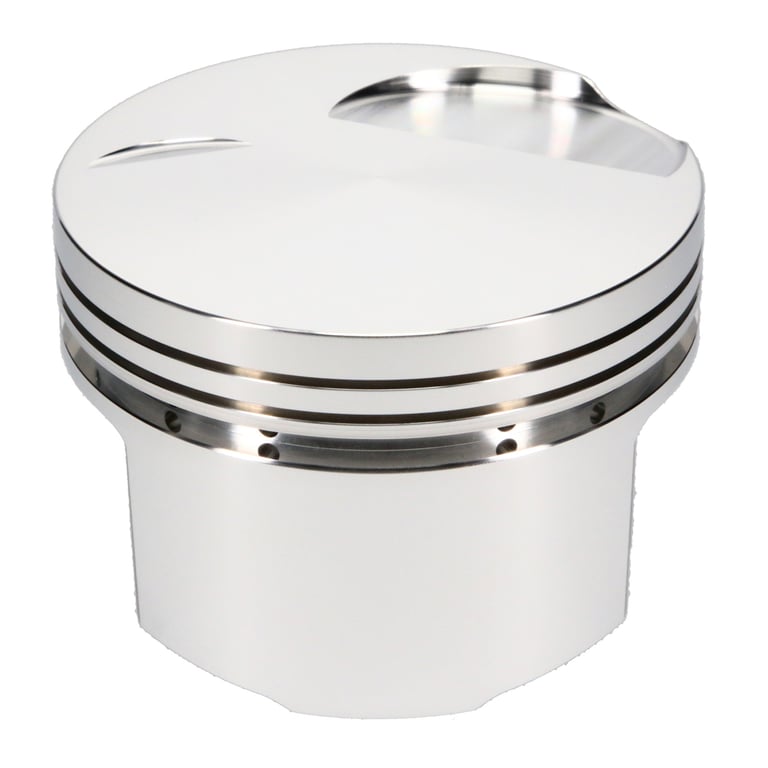

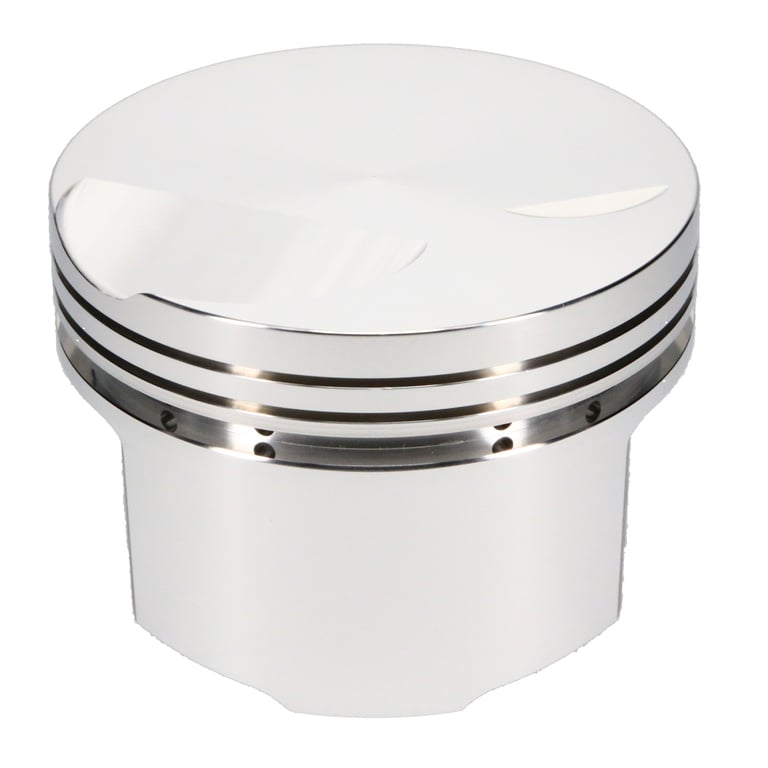

JE Pistons SRP Pro 2618 line expands on the premium features of the SRP Pro series with the addition of extremely strong, 2618 forged aluminum material. All piston kits include gas-nitrided, carbon-steel pistons rings, pins, and locks. SRP Pro 2618 pistons maximize piston strength and maximize value, whether you?re building rowdy small block or a flame-spitting big block. As with all JE Pistons products, SRP pistons are made 100% in the USA.
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Ring groove design placement proven to maintain positive seal in high-HP, boosted applications, along with stout top land thickness for improved strength
  • Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Vehicle Specific
  • Ford Small Block 351W Windsor

Attributes:

  • Brand Name: JE Pistons
  • GTIN: 00193564265265
  • Add-On: JG31F1-4030-2
  • Bore Diameter: 4.030
  • Bore Diameter - Web: 4.030 IN
  • Compression Height: 1.300
  • Cylinder Head: SMALL BLOCK FORD 20 DEG
  • Engine: Small Block
  • Engine Type: ICE
  • Forging Type: FSR
  • Industry: Automotive
  • Make: Ford
  • Oil Ring Thickness: 0.119
  • Piston Head Type: Flat
  • Piston Material: 2618
  • Piston Series: SRP Pro 2618
  • Piston Volume: -5.00
  • Product Market: Domestic
  • Product Type: Engine Piston Kit
  • Ring Set Included: Yes
  • Second Compression Ring Thickness: 0.0600
  • Top Compression Ring Thickness: 0.0480
  • Wrist Pin Length: 2.250
  • Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
  • Wrist Pin Outer Diameter: 0.927
  • Wrist Pin Wall Thickness: 0.170

Extended Information:

  • Country of Origin: US
  • Emissions : Racing or Pre-Emissions Use Only

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 12 x 6 inches
  • Weight: 13.2 POUNDS
