Bilstein Shock Absorbers

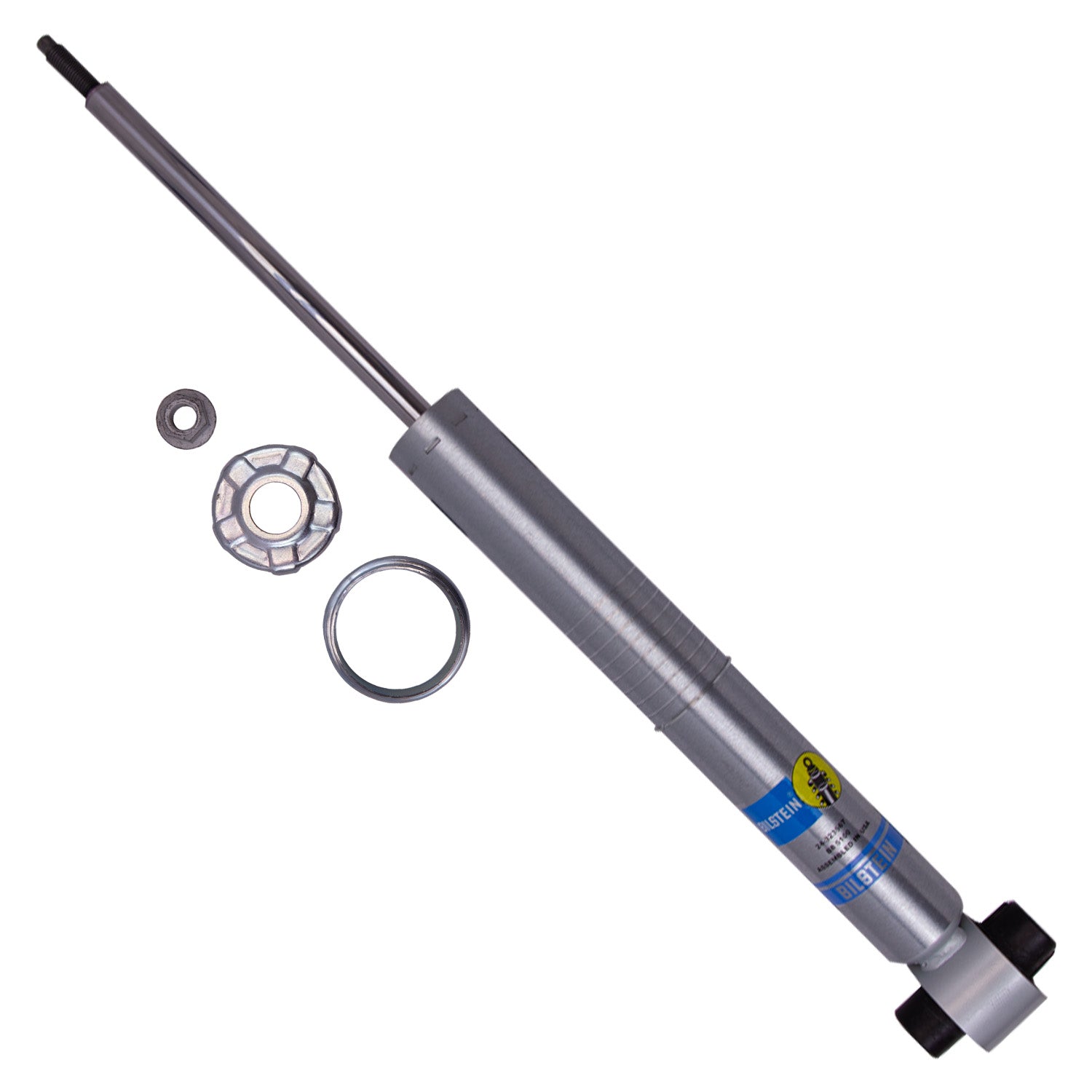

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with an OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
• Adjustable spring seat offers 0-2.75in of lift, depending on the application

Vehicle Specific

• Ford Bronco 2021-2026

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860891705
• Adjustable Damping: Non-Adjustable
• Body Design: Snap Ring Grooved Body (Coilover)
• Boot Included: No
• Collapsed Length (IN): 17.11
• Collapsed Length (MM): 434.6
• Extended Length (IN): 25.56
• Extended Length (MM): 649.3
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 20.2mm
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Reservoir: No
• Segment: Light Truck
• Series: B8 5100 (Ride Height Adjustable)
• Shaft Diameter: 18mm
• Spring Seat Included: No - Reuse OEM
• Stroke/Travel Length (IN): 8.45
• Stroke/Travel Length (mm): 214.6
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 6.9000 POUNDS
