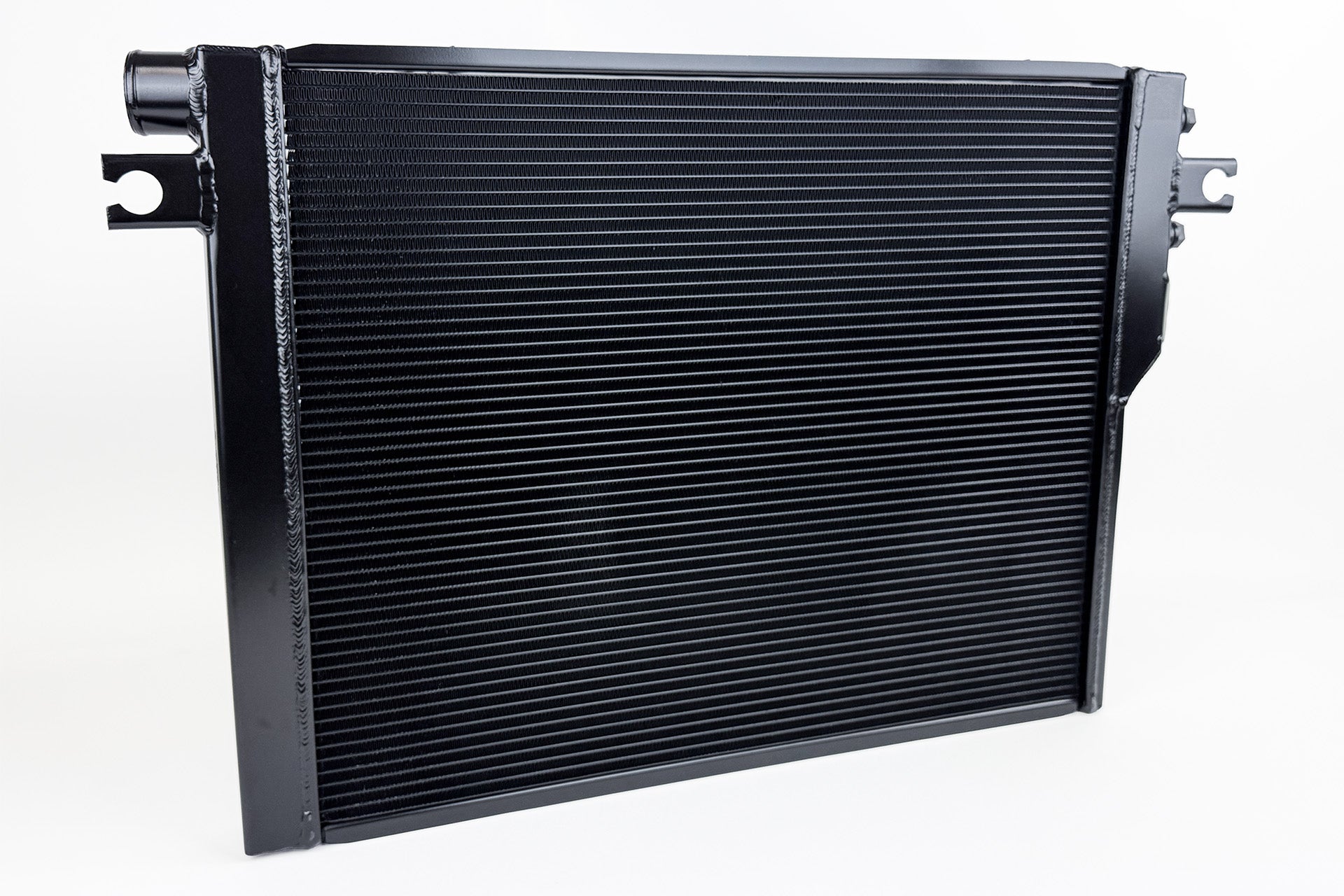

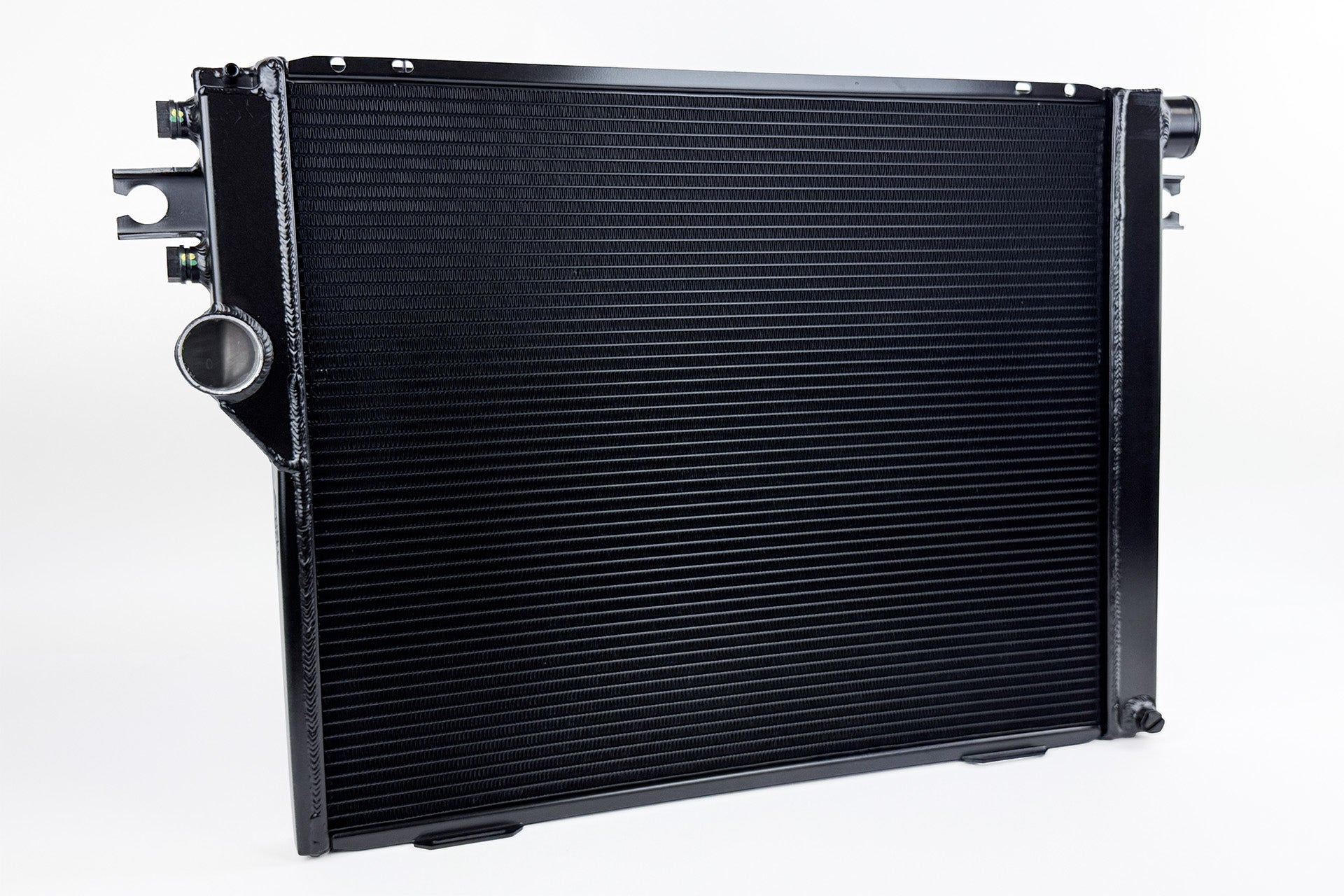

BMW E28 M5 / E24 M6/635CSi High-Performance All-Aluminum Radiator

SKU: GQPL-7232
(0)
In stock
Usually ships within 24 hours
$699.00

Got questions?
Feel free to get in touch

Those familiar with the radiator on the E28 M5 and E24 M6 know that the factory radiator does not come with a drain plug. While this isn't the end of the world, it's definitely a nice thing to have if you're going to do a coolant flush, pull the engine out, etc.
  • 1-Row, 31mm Ultra-High-Performance Core
  • 2-Year Limited Warranty
  • Cooling Tubes with CSF's Exclusive B-Tube Technology
  • 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
  • CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
  • 100% All Aluminum TIG-Welded Construction
  • Satin Black Finish for an OEM+ Look and Feel
  • True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
  • Two M14x1.5 Temperature Sensor Ports on left side tank (Plugs Included)
  • Individually Leak and Pressure Tested

Attributes:

  • Brand Name: CSF Cooling - Racing & High Performance Division
  • GTIN: 00710353072325
  • Coolant Hose Inlet Connection Type: OE Type Connection
  • Coolant Hose Outlet Connection Type: OE Type Connection
  • Core Height: 575mm
  • Core Material: Aluminum
  • Core Row Quantity: 1
  • Core Thickness: 31mm
  • Core Width: 457mm
  • Down Flow Or Cross Flow Type: Cross Flow
  • Finish/Color: Black
  • Frame Included: No
  • Grade Type: Performance
  • Inlet Connector Type: Slip On
  • Inlet Diameter: 44.5mm
  • Inlet Location: Top Right
  • Installation Type: Drop-In Fit Installation
  • Internal Engine Oil Cooler: No
  • Internal Transmission Oil Cooler: No
  • Mounting Hardware Included: No
  • Mounting Type: Mounts with OE Hardware
  • Outlet Connector Type: Slip On
  • Outlet Diameter: 44.5mm
  • Outlet Location: Center Left
  • Radiator Cap Included: No
  • Tank Material: Aluminum
  • Thermostat Included: No

Extended Information:

  • Country of Origin: Indonesia
  • Emissions : Emissions Compliance Exempt

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 32 x 23 x 5 inches
  • Weight: 15 POUNDS
