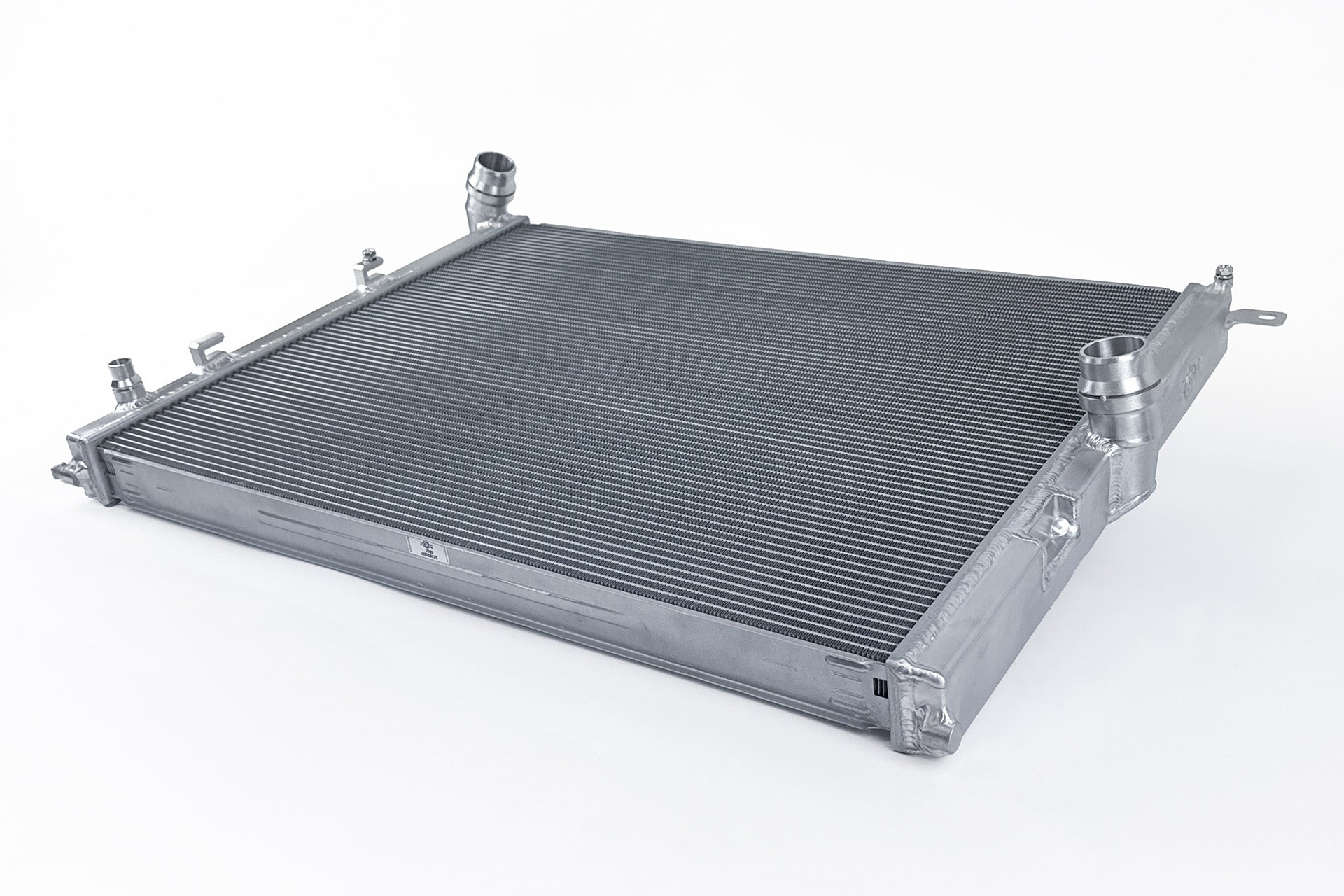

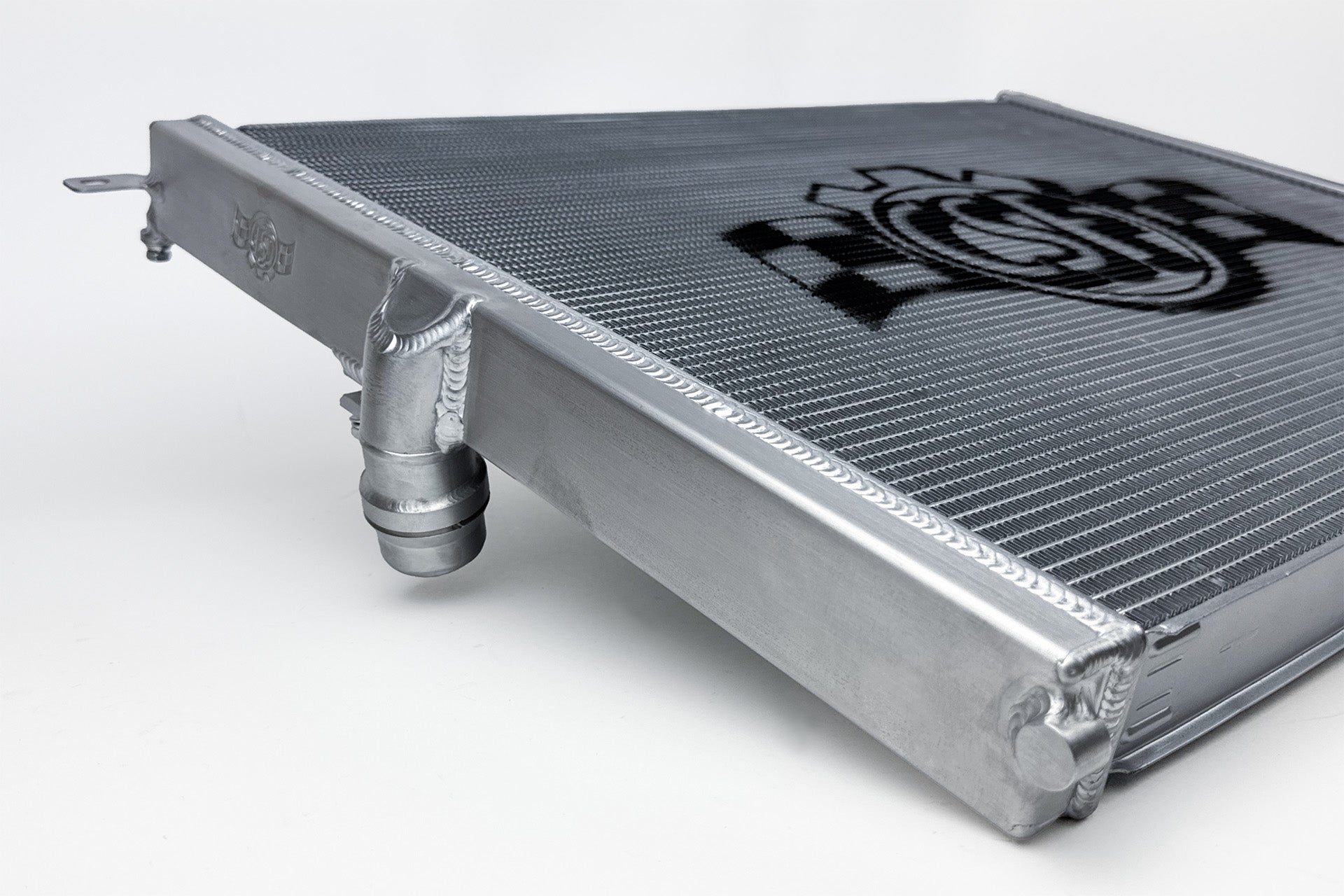

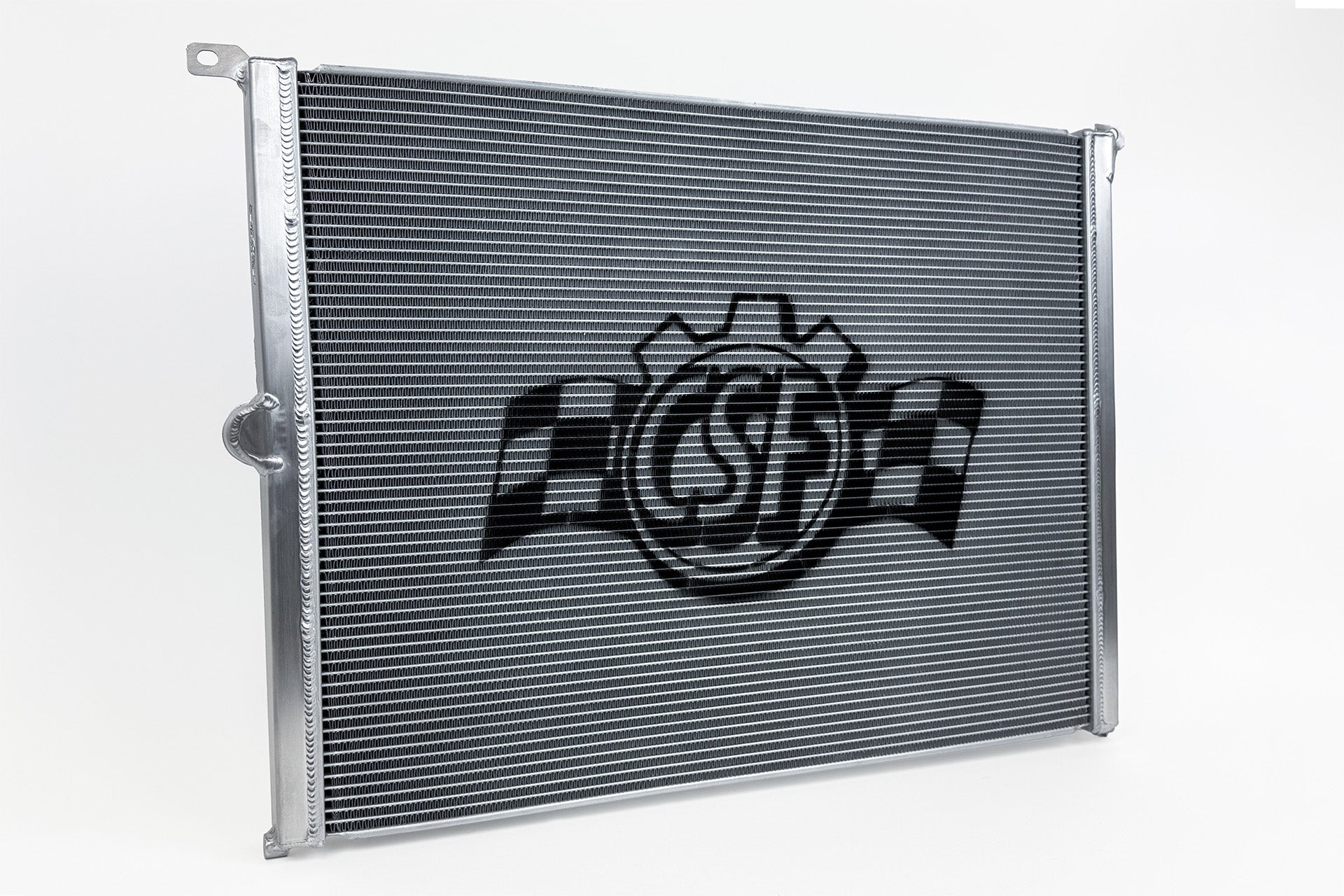

BMW F-Chassis Gen 1 B58 High-Performance All-Aluminum Radiator
Regular price
$699.00
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Whether you're building a street sleeper or prepping for your next track day, CSF's Gen 1 B58 Radiator is engineered to handle the heat and then some.
- 2-Row - 42mm Ultra-High-Performance Core
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- New "Track-Spec" 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact and Heat Dissipation
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- 100% All Aluminum TIG-Welded Construction
- Hand Brushed Satin Finish
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353070895
- ADD-ON: 8300
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 600mm
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 42mm
- Core Width: 466.6mm
- Down Flow Or Cross Flow Type: Cross Flow
- Finish/Color: Satin
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Quick Connect
- Inlet Diameter: 45mm
- Inlet Location: Top Left
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Quick Connect
- Outlet Diameter: 45mm
- Outlet Location: Bottom Right
- Radiator Cap Included: No
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: ID
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 31 x 23 x 7 inches
- Weight: 17 POUNDS
