BMW S54 Swap E36 Race-Spec Dual-Pass Oil Cooler

SKU: GQPL-8240
(0)
In stock
Usually ships within 24 hours
$549.00

Got questions?
Feel free to get in touch

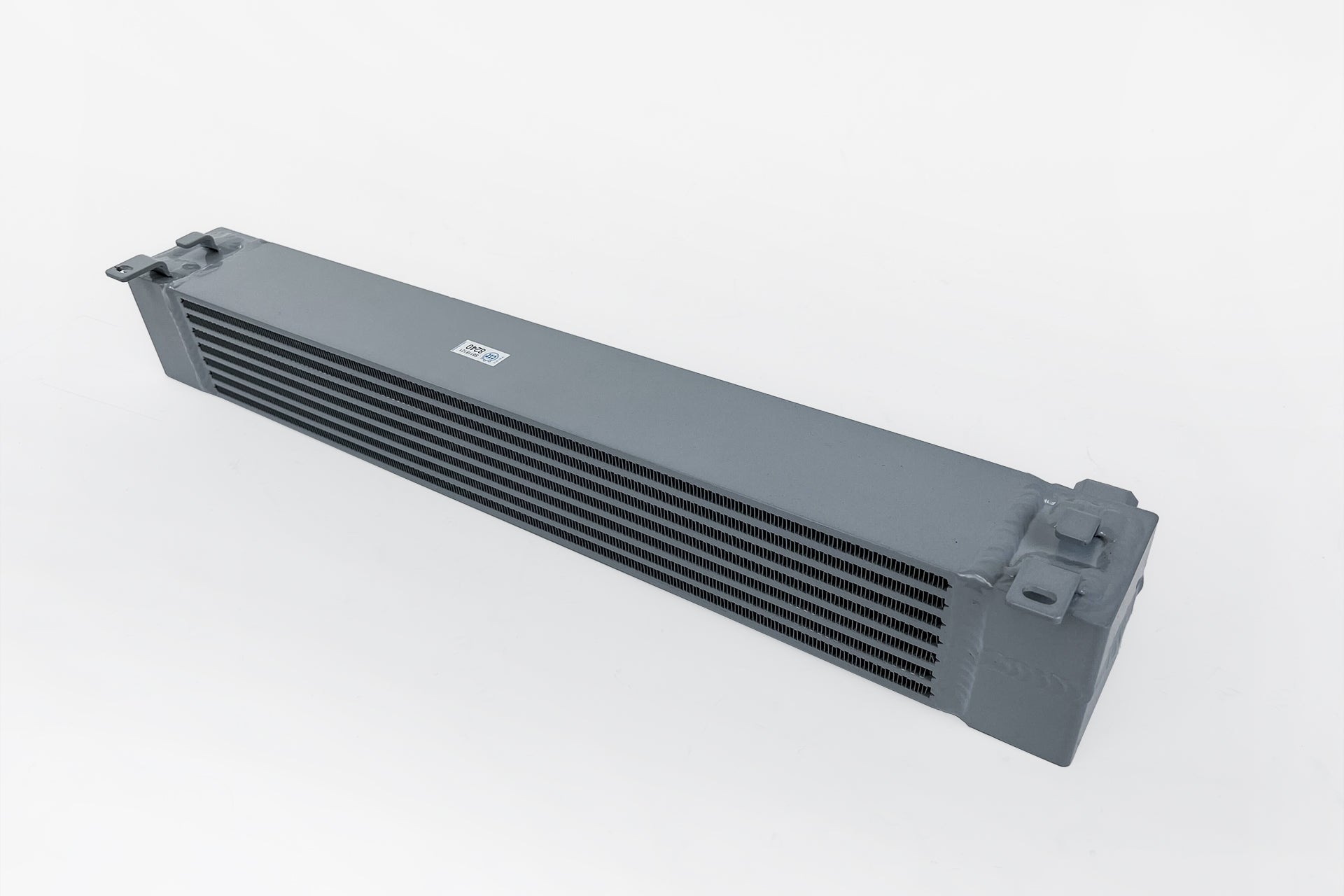

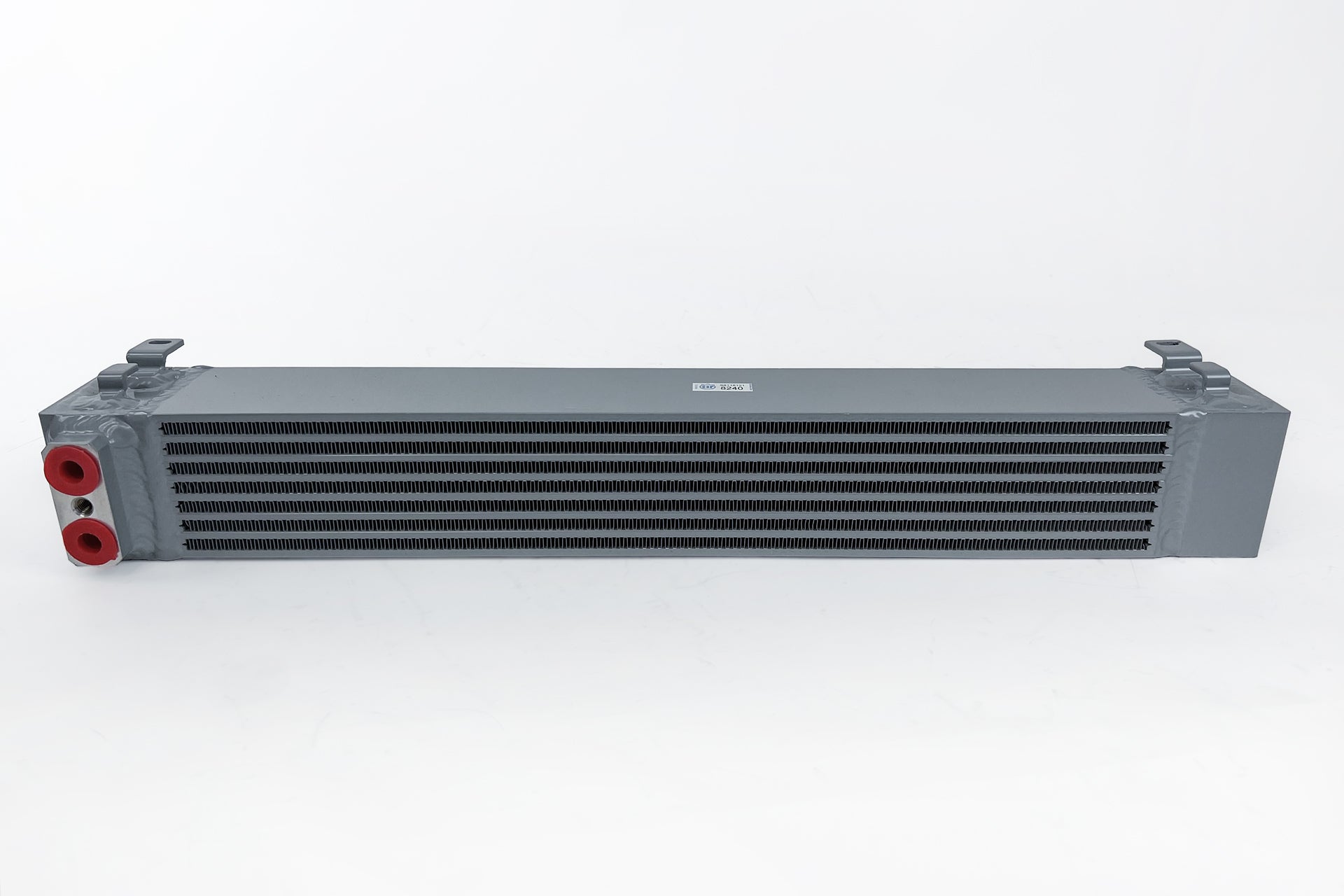

Enter the new CSF S54 Swap Race Spec Oil Cooler. This new oil cooler is shorter on the right hand side allowing owners to run the A/C lines in the OEM path. Even though the #8240 is slightly smaller than the #8032, you can expect similar performance levels as they both feature a dual pass design with 8 cooling rows and are the same turbulated heavy-duty bar/plate construction. Both oil coolers utilize the S54 OEM oil line connections. However, CSF will be offering a fitting kit with -10 AN hookups for customers looking to run custom oil lines. This fitting kit should be available by the second quarter of 2023.
  • Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow

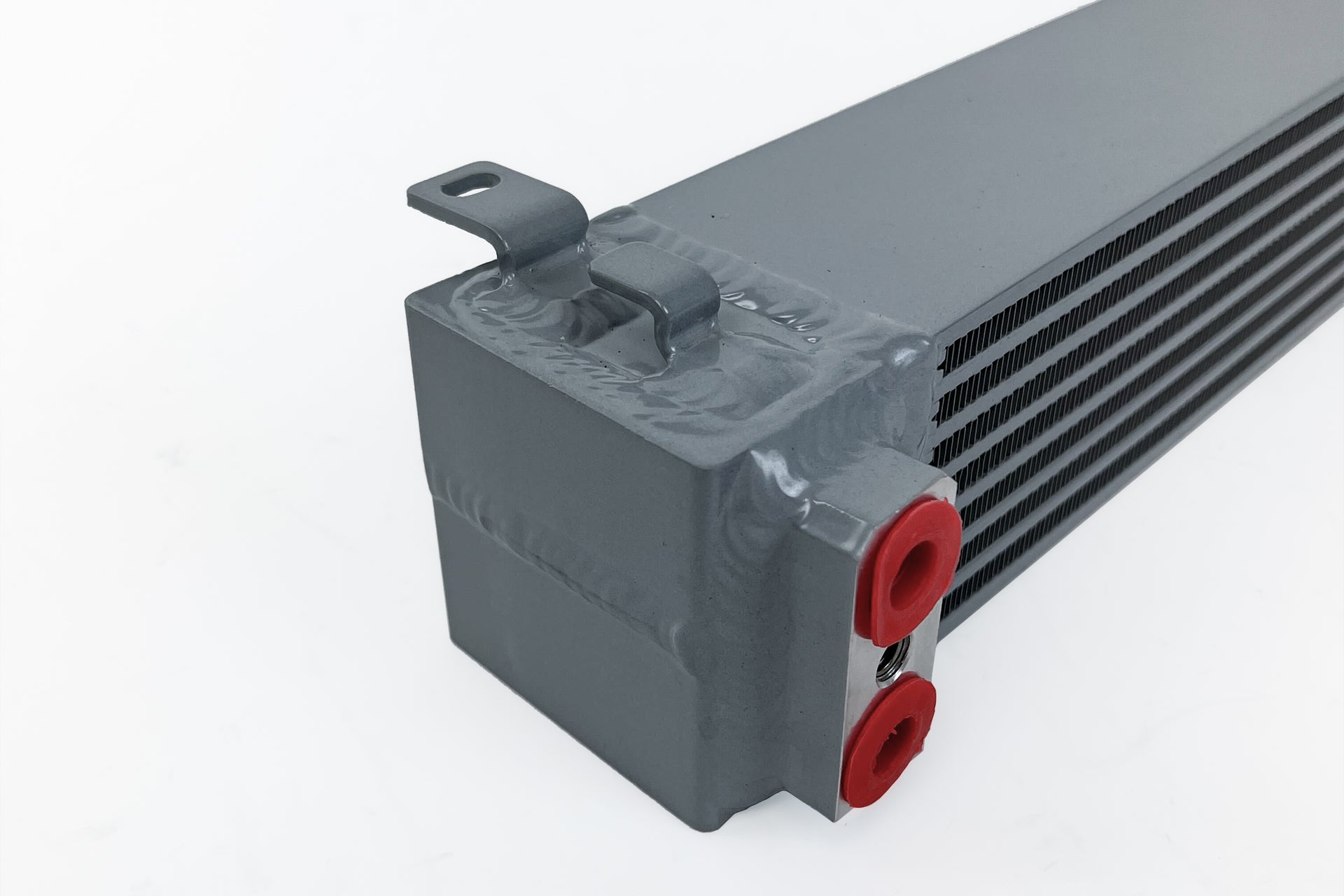

  • Fully TIG-Welded Extruded End Tank Design for Superior Reliability & Durability
  • Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available
  • 8 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design
  • Designed to Work with CSF's S54 Swap All-Aluminum Radiator (CSF #7211)
  • Motorsport Silver Finish
  • Accepts Factory Oil-Line Connections
  • For S54 Swap Vehicles with Air Conditioning (A/C)
  • For S54 Swap Vehicles without Air Conditioning (A/C) see CSF #8032

Attributes:

  • Brand Name: CSF Cooling - Racing & High Performance Division
  • GTIN: 00710353082409
  • ADD-ON: 7211
  • Cable Included: No
  • Color: Motorsport Silver Finish
  • Core Charge Applicable: No
  • Core Color: Gray
  • Core Material: Aluminum
  • Core Row Quantity: 1
  • Core Thickness: 75mm
  • Core Tube: No
  • Core Type: Bar-and-Plate
  • Finish: Powder Coat
  • Grade Type: Performance
  • Inlet Fitting Type: OE Type Connection
  • Inlet Gender: Female
  • Installation Type: Engine Swap Application
  • Mounting Hardware Included: No
  • Outlet Fitting Gender: Female
  • Outlet Fitting Type: OE Type Connection
  • Strap Included: No
  • Tube Included: No

Extended Information:

  • Country of Origin: China
  • Emissions : 4

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 7 x 7 inches
  • Weight: 10 POUNDS
