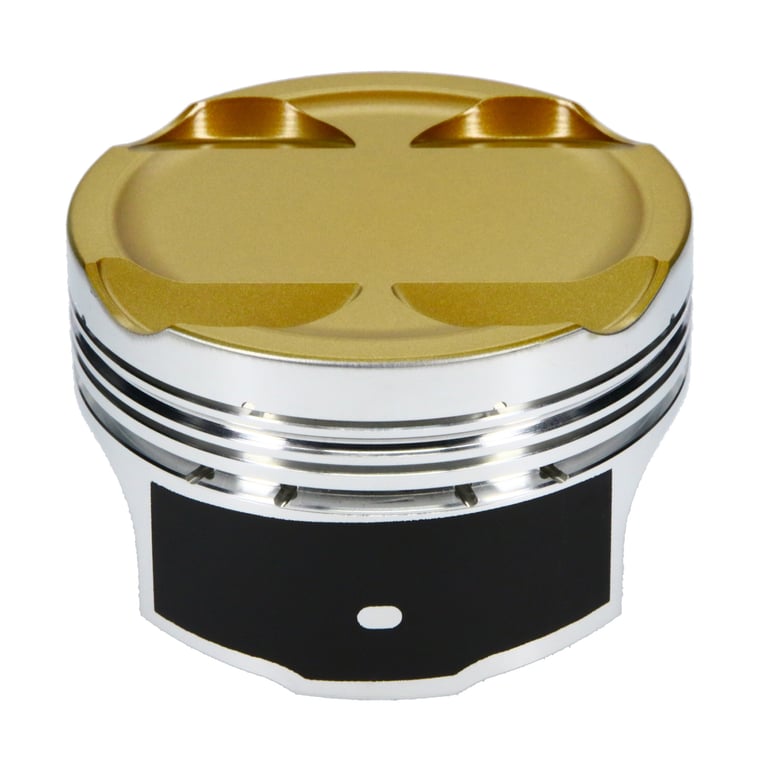

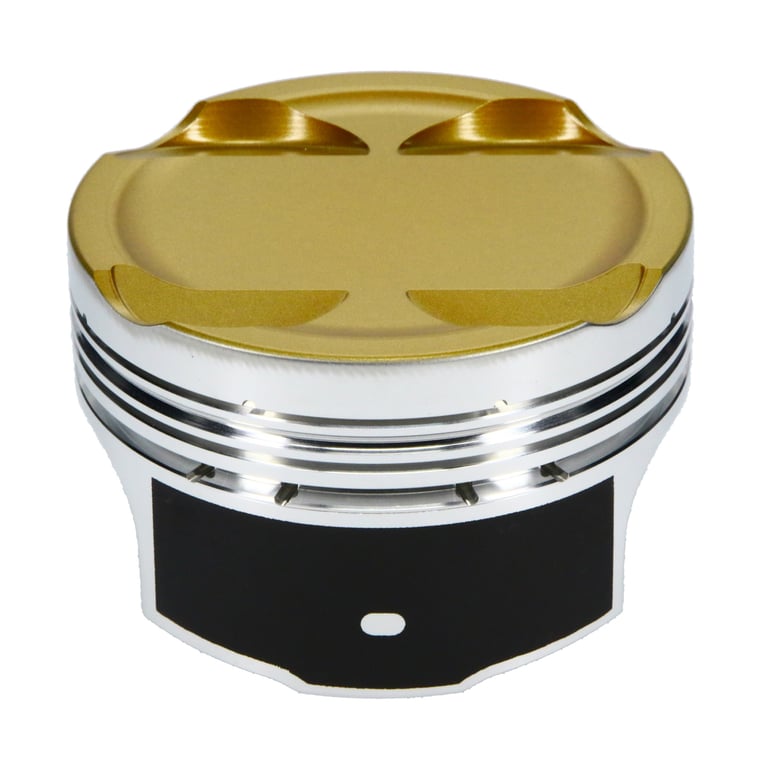

JE Pistons Ultra Series Toyota 2JZ - GTE Flat Top 10-1 Piston Kit

Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging teCDnology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.

• Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
• Aligned Grain Flow TeCDnology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
• Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start
• Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion CDamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
• High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
• Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations
• Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
• Made 100% in the USA

Attributes:

• Brand Name: JE Pistons
• GTIN: 00193564563538
• Bore Diameter: 86.00
• Bore Diameter - Web: 86.00 MM / 3.386 IN
• Connecting Rod Length: 142.00
• Cylinder Head: 2JZ-GTE
• Engine: 2JZ-GTE
• Engine Stroke: 94.00
• Engine Type: ICE
• Forging Type: FSR
• Industry: Automotive
• Make: Toyota
• Oil Ring Thickness: 2.80
• Oversized: No
• Oversized Amount: 0
• Piston Average Weight: 380
• Piston Head Type: Flat Top
• Piston Material: 2618
• Piston Series: JE Ultra
• Piston Volume: -5.40
• Pro Seal Head Gasket: TY1004-051
• Product Market: Sport Compact
• Product Type: Engine Piston Kit
• Ring Set Included: Yes
• Ring Set Part Number: UX1006-3386
• Ring Set Thickness: 1.00 MM x 1.20 MM x 2.80 MM
• Second Compression Ring Thickness: 1.20
• Top Compression Ring Thickness: 1.00
• Wrist Pin Included: Yes
• Wrist Pin Length: 2.250
• Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
• Wrist Pin Outer Diameter: 0.866
• Wrist Pin Part Number: 866-2250-23-93C
• Wrist Pin Retainer Diameter: 0.866
• Wrist Pin Retainer Included: Yes
• Wrist Pin Retainer Material: Chrome Silicon
• Wrist Pin Retainer Part Number: 866-063-MW
• Wrist Pin Retainer Style: Wire Lock
• Wrist Pin Retainer Thickness: 0.063
• Wrist Pin Wall Thickness: 0.230

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12 x 12 x 6 inches
• Weight: 4.5 POUNDS
