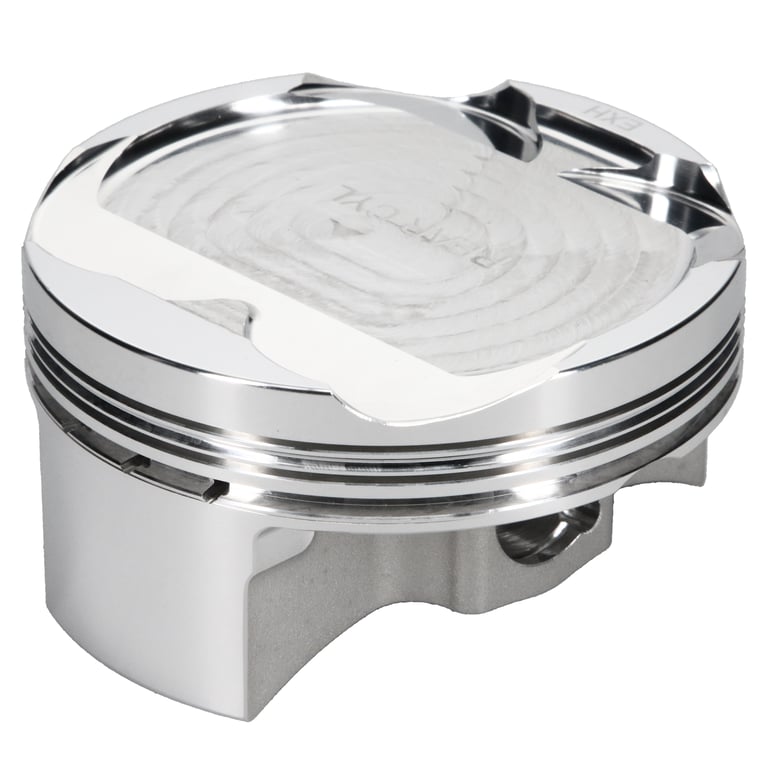

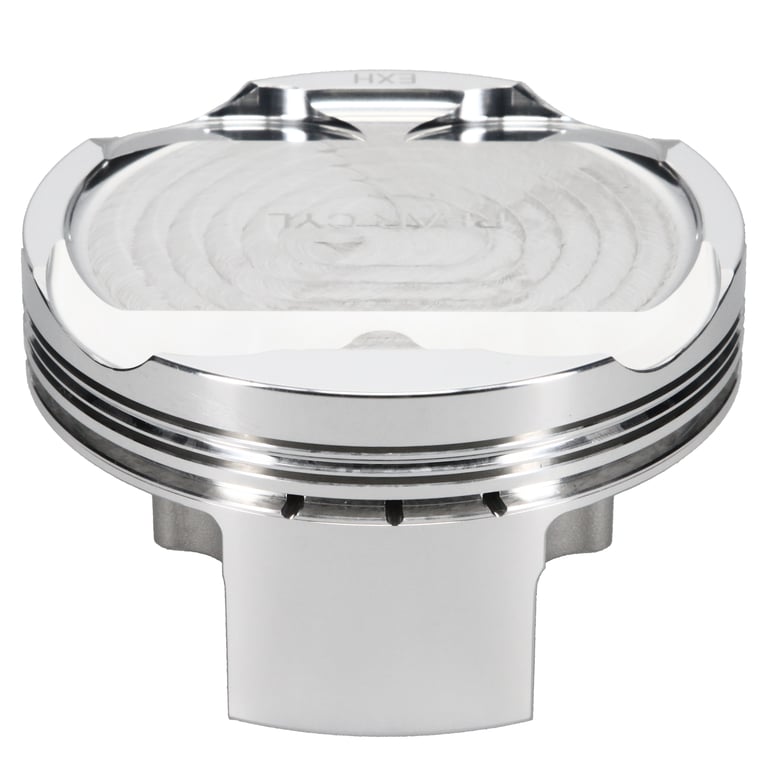

JE Pistons V-Twin Series V-ROD Harley-Davidson V-ROD Piston Kit

SKU: BHXG-317227
(0)
In stock
Usually ships within 24 hours
$545.99

Got questions?
Feel free to get in touch

As the leader in forged racing pistons, JE Pistons has been at the forefront of V-Twin and Harley-Davidson piston performance for decades, with over 75 years of experience. JE?s carefully developed line of V-Twin pistons is engineered, forged and machined 100% in the USA and are designed for each specific engine and use application to provide the ultimate combination of durability and performance. From fun and powerful cruisers to all-out V-Twin drag racing, JE Pistons? performance is proven with every handful of throttle. Equip your bike with the best in forged pistons.
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Vehicle Specific
  • HARLEY-DAVIDSON V-ROD

Attributes:

  • Brand Name: JE Pistons
  • GTIN: 00193564026507
  • Add-On: JG1001-3937
  • Bore Diameter: 100.00
  • Bore Diameter - Web: 100.00 MM
  • Compression Ratio Actual: 8.50:1
  • Cylinder Head: HARLEY V-ROD
  • Engine Type: ICE
  • Forging Type: FSR
  • Industry: Powersports
  • Oil Ring Thickness: 0.111
  • Piston Average Weight: 376
  • Piston Head Type: Dish
  • Piston Material: 2618
  • Piston Series: JE Pistons
  • Piston Volume: 30.30
  • Product Market: V-Twin
  • Product Type: Engine Piston Kit
  • Ring Set Included: Yes
  • Second Compression Ring Thickness: 0.0480
  • Top Compression Ring Thickness: 0.0400
  • Wrist Pin Length: 2.250
  • Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
  • Wrist Pin Outer Diameter: 0.866
  • Wrist Pin Wall Thickness: 0.150

Extended Information:

  • Country of Origin: United States
  • Emissions : 3

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 5 x 5 x 5 inches
  • Weight: 2.6 POUNDS
