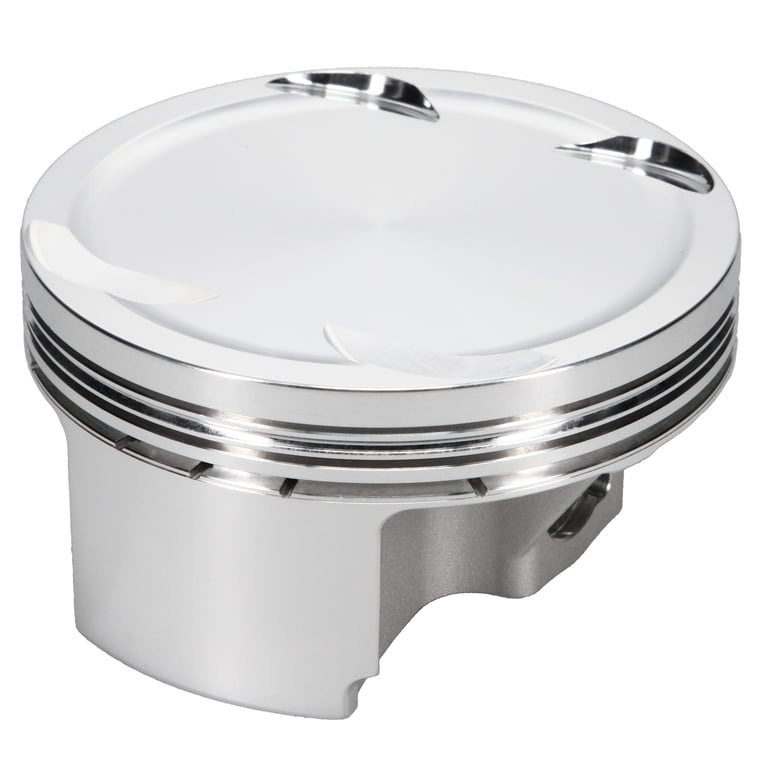

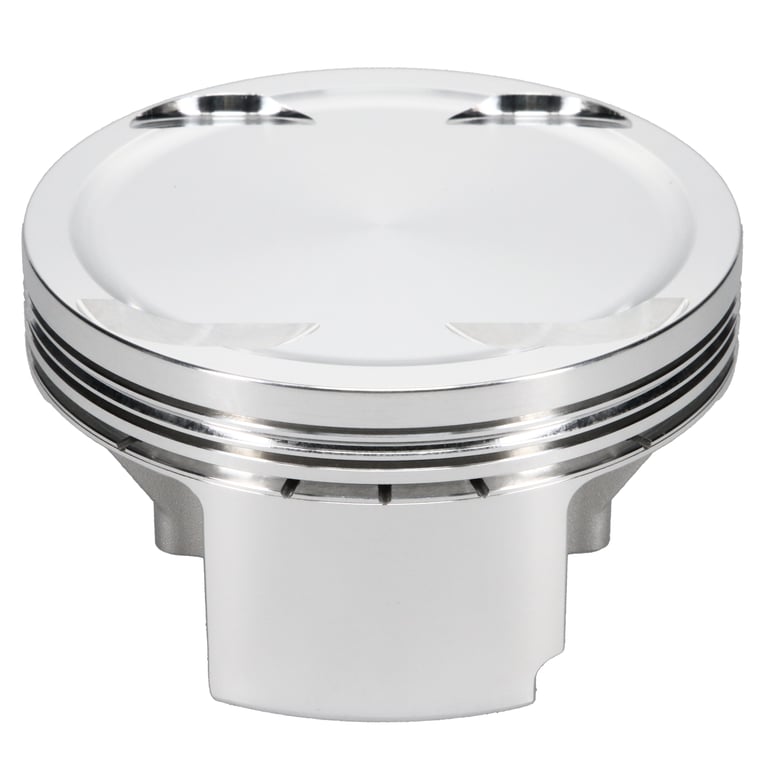

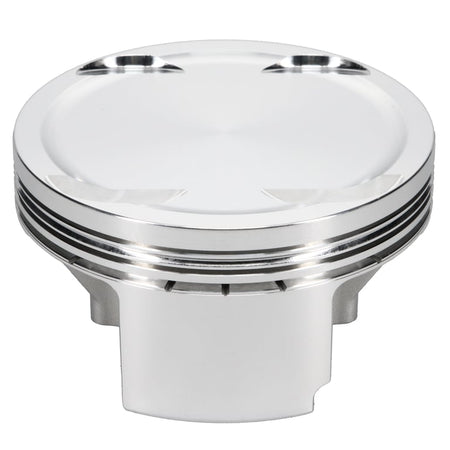

JE Pistons Water & Snow Series 2004-2015 SEA DOO RXP/RXP-X/RXT/RXT-X Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged powersports pistons. Covering everything from the lake to the mountains, JE?s watercraft and snowmobile pistons are engineered, forged and machined 100% in the USA. JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. The heavy engine loads, excessive operational heat and high cylinder pressures of these engines were taken into account with every JE piston design, and the performance is proven with every handful of throttle. Equip your PWC or sled with the best in forged pistons.

• Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
• Designed specifically for each engine and use application to provide optimized performance durability
• Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
• Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
• Made 100% in the USA

Vehicle Specific

• SEA-DOO 04-15 RXP / RXP-X / RXT / RXT-X

Attributes:

• Brand Name: JE Pistons
• GTIN: 00193564219817
• Add-On: JG1001-3957
• Bore Diameter: 100.50
• Bore Diameter - Web: 100.50 MM
• Compression Ratio Actual: 9.50:1
• Cylinder Head: SEA-DOO
• Engine Type: ICE
• Forging Type: FSR
• Industry: Powersports
• Oil Ring Thickness: 0.111
• Piston Average Weight: 413
• Piston Head Type: Dish
• Piston Material: 2618
• Piston Series: JE Pistons
• Piston Volume: -8.80
• Product Market: Water & Snow
• Product Type: Engine Piston Kit
• Ring Set Included: Yes
• Second Compression Ring Thickness: 0.0480
• Top Compression Ring Thickness: 0.0400
• Wrist Pin Length: 2.250
• Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
• Wrist Pin Outer Diameter: 0.905
• Wrist Pin Wall Thickness: 0.180

Extended Information:

• Country of Origin: US
• Emissions : 3

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5 x 9 x 5 inches
• Weight: 4 POUNDS
