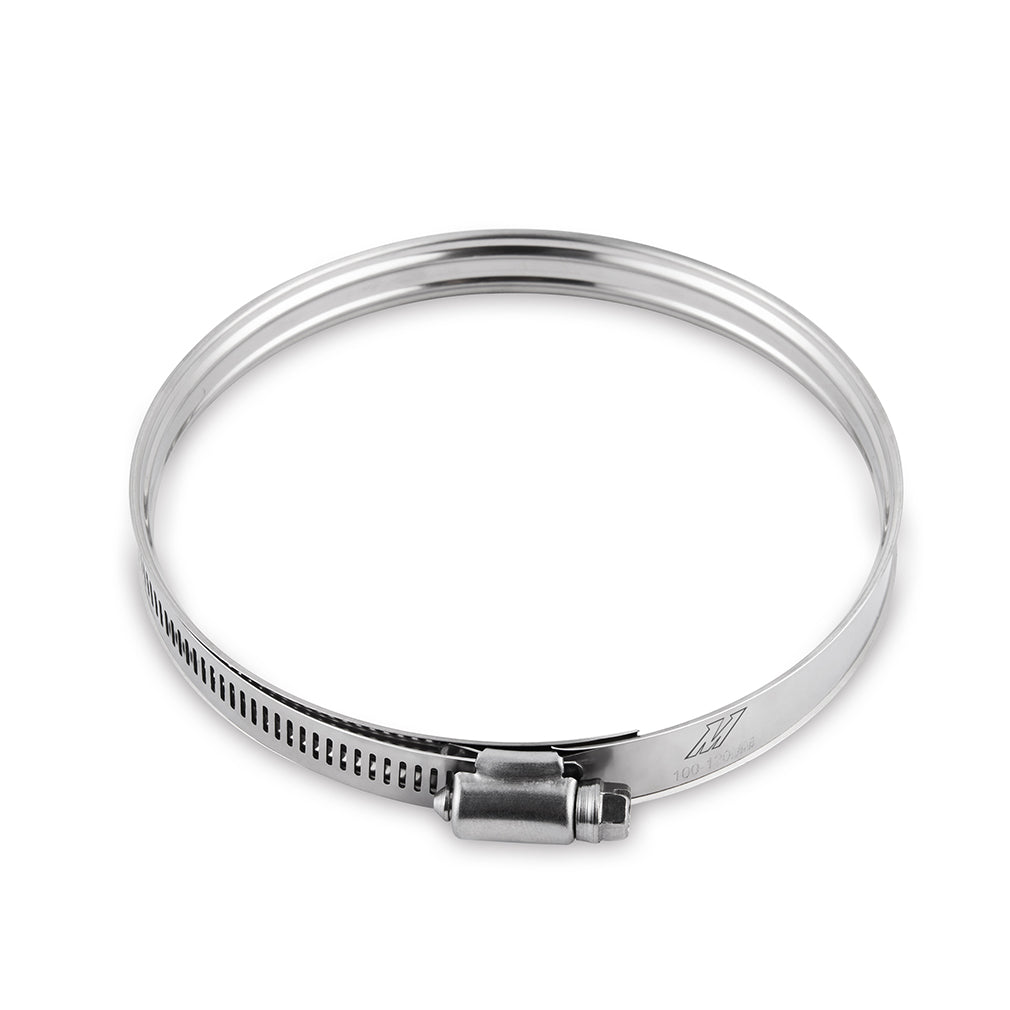

Mishimoto MMCLAMP-WGP-120 High Torque Protective Worm Gear Clamp 3.07 In - 3.74in 2-Pack

Mishimoto High Torque Protective Worm Gear Clamps are, simply put, the crme de la crme of hose clamps. Their innovative double-ridge inner shield design both protects the clamped material from cuts and abrasions while also providing superior clamping engagement. The double-ridge design provides concentrated compression force to provide equal 360 clamping pressure and leak free connections. To create a long-lasting, rust and corrosion resistant clamp, we utilized a 304 Stainless Steel construction. Available in a wide array of sizes ranging from 3.94" - 4.72" (100mm - 120mm) to fit everything from vacuum lines to intake tubes. Like all Mishimoto products, this High Torque Protective Worm Gear Clamp is backed by our Mishimoto Lifetime Warranty.

• Securely clamps hoses, couplers, and pipes with an outer diameter from 3.94-in-4.72-in (100mm-120mm)
• High torque worm gear design allows for quick and easy tightening
• Protective inner shield ensures safe, damage free clamping of soft materials

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197711606
• Band Width: 0.5
• Color: Silver
• Finish: Plain
• Grade Type: Premium
• Install Difficulty: 1
• Material: Stainless Steel
• Maximum Diameter: 4.72
• Minimum Diameter: 3.94
• Recommended Torque: 35
• Reusable: Yes
• SAE Size: 76
• SAE Type: F
• SellingPoint01: Securely clamps hoses, couplers, and pipes with an outer diameter from 3.94-in-4.72-in (100mm-120mm)
• SellingPoint02: High torque worm gear design allows for quick and easy tightening
• SellingPoint03: Protective inner shield ensures safe, damage free clamping of soft materials
• SellingPoint04: Innovative double-ridge design provides uniform 360 clamping force
• SellingPoint05: Double-ridge inner shield design provides concentrated compression force to ensure leak free connections
• SellingPoint06: 304 Stainless Steel construction resists corrosion
• SellingPoint07: Sold in packs of 2
• SellingPoint08: Includes Mishimoto Lifetime Warranty
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• Size: 4.72
• Spring Material: Steel
• TechSpec Band Width (in): 0.5
• TechSpec Clamp Style: Protective Worm Gear
• TechSpec Includes: (2) Mishimoto High Torque Protective Worm Gear Clamps, 3.94-in to 4.72-in (100mm-120mm)--Mishimoto Lifetime Warranty
• TechSpec Material: Stainless Steel
• TechSpec Maximum Clamp Diameter (in): 4.72
• TechSpec Minimum Clamp Diameter (in): 3.94
• TechSpec Note: N/A
• TechSpec Recommended Tightening Torque: 35 in-lbs (4 NM)
• TechSpec SAE Number: N/A
• Type: Worm Gear

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 3.5 x 5.5 x 1.5 inches
• Weight: 0.25 POUNDS
