Mishimoto MMICP-CAM4-16KP Intercooler Pipe Kit Polished Fits Chevrolet Camaro 2.0T 2016-2024

Expose your 2.0T LTG engine to improved airflow with the Mishimoto Performance Intercooler Pipe Kit for the 2016-2024 Chevrolet Camaro. The stock intercooler pipes are plagued by bends and a restrictive diameter. Both slow the airflow to your intercooler. The stock piping is also constructed of plastic and rubber, which will deteriorate over time on top of restricting air to your engine. This Mishimoto intercooler pipe kit is constructed of mandrel-bent aluminum and features a larger diameter to minimize any airflow restrictions. These pipes can handle the power you throw at them when turning up the boost on your LTG. Plastic is a material that Mishimoto always strives to replace with our products, and the stock cold-side intercooler pipe needed some work. Half of the stock cold-side pipe is constructed of plastic, which is prone to cracks and leaks. The Mishimoto cold-side pipe is a single section of mandrel-bent, aluminum piping featuring a CNC-machined sensor flange for use of the stock pressure sensor, a port for methanol injection, or a port for a boost gauge sensor. The hot-side pipe includes more precise machining with a perfect match of the turbo manifold flange designed for a painless installation. The hot-side pipe also has a bigger diameter for better airflow and an increase in overall volume. Mishimoto's 2016-2024 Camaro 2.0T performance intercooler pipe kit includes durable silicone couplers and stainless steel T-bolt clamps to ensure leak free connections between the hot-side sections and to the intercooler. Installation can be completed without modification to the engine bay as it is compatible with the stock intercooler. The Mishimoto performance intercooler pipe kit is available in either wrinkle black or a polished finish, and like all our Camaro 2.0T performance parts, includes the Mishimoto Lifetime Warranty.

• Dyno-proven maximum gains up to 11 whp and 9 wtq on a stock tune
• 30-percent greater internal volume than stock
• 10-percent increase in flow

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354036732
• Clamp Quantity: 4
• Clamp Type: T-Bolt
• Clamps Included: Yes
• Cold Side Pipe Inside Diameter: 0
• Coupler Color: Black
• Coupler Material: Silicone
• Finish: Polished
• Hot Side Pipe Inside Diameter: 0
• Install Difficulty: 3
• OptionLabel: Polished
• Pipe Bend Type: Mandrel
• Pipe Color: Polished
• Pipe Material: Aluminum
• Pipe Quantity: 3
• SellingPoint01: Direct fit for the 2016-2024 Chevrolet Camaro 2.0T/2013-2019 Cadillac ATS 2.0T
• SellingPoint02: Dyno-proven maximum gains up to 11 whp and 9 wtq on a stock tune
• SellingPoint03: 30-percent greater internal volume than stock
• SellingPoint04: 10-percent increase in flow
• SellingPoint05: Aluminum intercooler pipes replace weak stock plastic and rubber pipes
• SellingPoint06: Utilizes stock quick-disconnect fittings for easy installation
• SellingPoint07: Mandrel-bent aluminum piping
• SellingPoint08: CNC-machined port for stock sensor connection
• SellingPoint09: Pre-welded NPT port on cold-side pipe allows for quick install of aftermarket meth injection or boost gauge
• SellingPoint10: Includes Mishimoto silicone coupler and Mishimoto T-bolt clamps
• SellingPoint11: Available in polished and wrinkle black
• SellingPoint12: Mishimoto Lifetime Warranty
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2016-2024 Chevrolet Camaro 2.0T--2013-2019 Cadillac ATS 2.0T
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: Alpha
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Core Type: N/A
• TechSpec Engine Codes: LTG

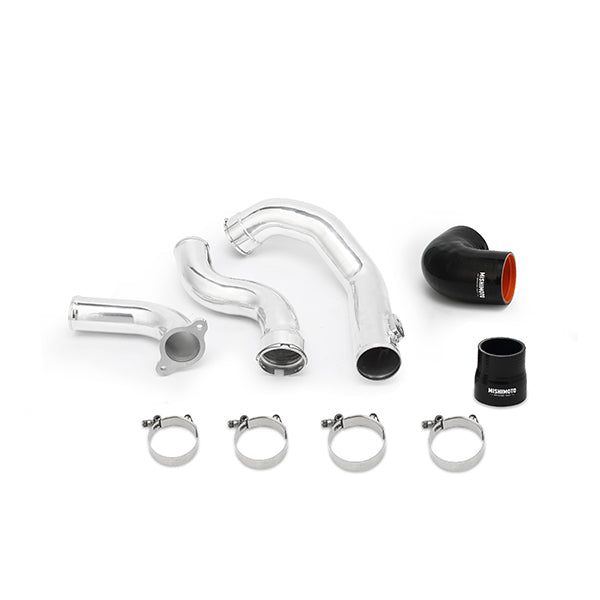

• TechSpec Includes: (2) Aluminum Pipes w/ CNC-machined quick-disconnects--(1) Aluminum Pipe w/ CNC-machined 2-bolt flange--(2) Quick-Disconnect Spring Clips--(1) 2.75-in 90-degree Silicone Coupler--(1) 2.25-in to 2.5-in Silicone Transition Coupler--(1) 2.5-in T-bolt Clamp--(1) 2.75-in T-bolt Clamp--(2) 3-in T-bolt Clamps--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Note: There is an O-ring inside of the stock intercooler pipe on the end that connects to the intercooler. This O-ring must be removed and installed into your Mishimoto intercooler pipe. Take note when removing it from the stock pipe as the O-ring must be installed in the correct direction. Please reference our installation video for additional information.
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A

Extended Information:

• Country of Origin: CN
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 11.14 x 11.14 x 11.14 inches
• Weight: 4.54 POUNDS
