Mishimoto MMICP-F35T-15KWBK Intercooler Pipe Kit Black Fits Ford F-150 3.5L EcoBoost 2015-2016

boots coupled with constant-tension worm-gear clamps provide superior strength and blow-out resistance, ensuring boost always makes it to its destination. Available with a sleek polished finish or powder-coated in stealthy wrinkle black, these pipes are a great addition to every F-150 EcoBoost from the show to the track. Combine this kit with the Mishimoto 2015+ F-150 EcoBoost intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. As with all Mishimoto products, this 2015-2016 3.5L F-150 EcoBoost intercooler pipe kit is backed by our Lifetime Warranty.

• Direct-fit for 2015-2016 Ford F-150 3.5L EcoBoost
• 24-percent total internal volume increase over the stock intercooler pipes
• Cold-side pipe includes CNC quick-disconnect with pre-installed o-ring and spring clip for quick and easy installation

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580032912
• CARB EO Number: D-759-6
• Clamp Quantity: 18
• Clamp Type: Worm Gear
• Clamps Included: Yes
• Cold Side Pipe Inside Diameter: 0
• Coupler Color: Black
• Coupler Material: Silicone
• Finish: Powder Coated
• Hot Side Pipe Inside Diameter: 0
• Install Difficulty: 4
• OptionLabel: Wrinkle Black
• Pipe Bend Type: Mandrel
• Pipe Color: Black
• Pipe Material: Aluminum
• Pipe Quantity: 7
• SellingPoint01: Direct-fit for 2015-2016 Ford F-150 3.5L EcoBoost
• SellingPoint02: 24-percent Total internal volume increase over the stock intercooler pipes
• SellingPoint03: Cold-side pipe includes CNC quick-disconnect with pre-installed o-ring and spring clip for quick and easy installation
• SellingPoint04: Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
• SellingPoint05: Constant-tension worm-gear clamps keep a strong grip as pipes and boots expand and contract
• SellingPoint06: Available in polished or wrinkle black powder-coated finish
• SellingPoint07: Mishimoto Lifetime Warranty
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2015-2016 Ford F-150 3.5L V6 EcoBoost
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Core Type: N/A
• TechSpec Engine Codes: 3.5L V6 EcoBoost

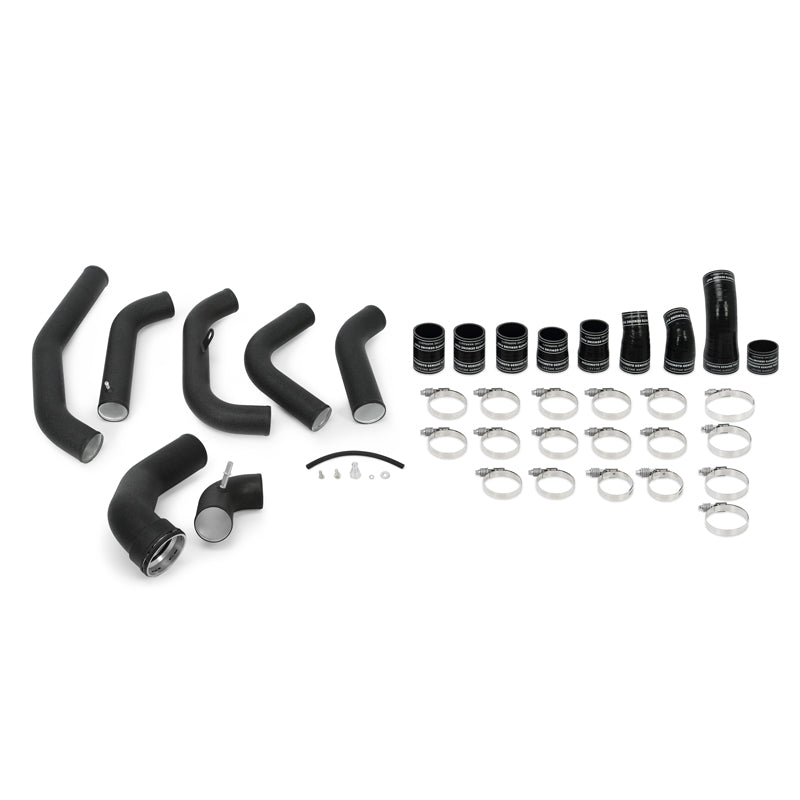

• TechSpec Includes: (1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing--(5) Aluminum Hot-Side Intercooler Pipes--(9) Silicone Boots w/ DuraCore Technology--(18) Constant-Tension Worm Gear Clamps--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Note: N/A
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A

Extended Information:

• Country of Origin: China
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16.78 x 16.78 x 16.78 inches
• Weight: 15.3 POUNDS
