Mishimoto MMINT-CAM4-16KP Performance Intercooler Kit Polished Fits Chevrolet Camaro 2.0T 2016-2024

It's time to give the intercooling system in your 2016-2024 Chevrolet Camaro 2.0T or 2013-2019 Cadillac ATS a complete overhaul with the Mishimoto Performance Intercooler Kit. Our bar-and-plate constructed core picks up the slack for the stock unit by offering increased heat rejection characteristics, as well as a boost in airflow. On top of the new construction, our design increases the internal core volume by 45-percent, and offers a whopping 239-percent gain in external fin surface area, making sure that the charged air running through your LTG is as chilled as possible. Our kit also includes a set of our mandrel-bent intercooler piping featuring a range of 2.25-2.75? diameters equating in a 30-percent increase in volume and 10-percent better flow of the charged air. All together, our piping kit gits your LTG powered Camaro or ATS up to 11 additional horsepower and 9 ft-lbs of torque. We have also included a pre-welded NPT port on the cold side piping that not only allows for easy installation of your stock equipment, but also adding an aftermarket boost gauge or meth-injection is a breeze. The Mishimoto Performance Intercooler Kit for your 2013-2019 ATS or 2016-2024 Camaro is available with your choice of polished or wrinkle black piping, and as always this kit is covered under the Mishimoto Lifetime Warranty.

• 2-in thick intercooler design optimized for maximum airflow with minimal pressure drop
• 45-percent increase in internal core volume and 239-percent increase in external fin surface area
• 78-percent increase in core size

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580030420
• Cold Side Pipe Inside Diameter: 2.4
• Core Color: Silver
• Core Construction: Bar-and-Plate
• Core Height: 0
• Core Length: 0
• Core Material: Aluminum
• Core Thickness: 2
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 2.4
• Inlet Diameter: 2.4
• Install Difficulty: 4
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 0
• Maximum Horsepower: 450
• OptionLabel: Polished Piping
• Outlet Diameter: 2.4
• Pipe Color: Polished
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Direct fit for the 2016-2024 Chevrolet Camaro 2.0T and 2013-2019 Cadillac ATS 2.0T
• SellingPoint02: 2-in thick intercooler design optimized for maximum airflow with minimal pressure drop
• SellingPoint03: 45-percent increase in internal core volume and 239-percent increase in external fin surface area
• SellingPoint04: 78-percent increase in core size
• SellingPoint05: Cast end tanks with internal air diverter provide optimal airflow through intercooler
• SellingPoint06: 30-percent greater internal volume than stock
• SellingPoint07: 10-percent increase in flow
• SellingPoint08: Utilizes stock quick-disconnect fittings for easy installation
• SellingPoint09: Pre-welded NPT port on cold-side pipe allows for quick install of aftermarket meth injection or boost gauge
• SellingPoint10: Piping available in polished and wrinkle black
• SellingPoint11: Mishimoto Lifetime Warranty
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2016-2024 Chevrolet Camaro 2.0T--2013-2019 Cadillac ATS 2.0T
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: Alpha
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): 2
• TechSpec Core Type: N/A
• TechSpec Engine Codes: LTG

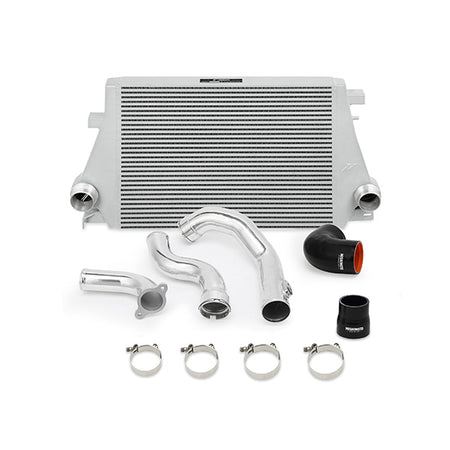

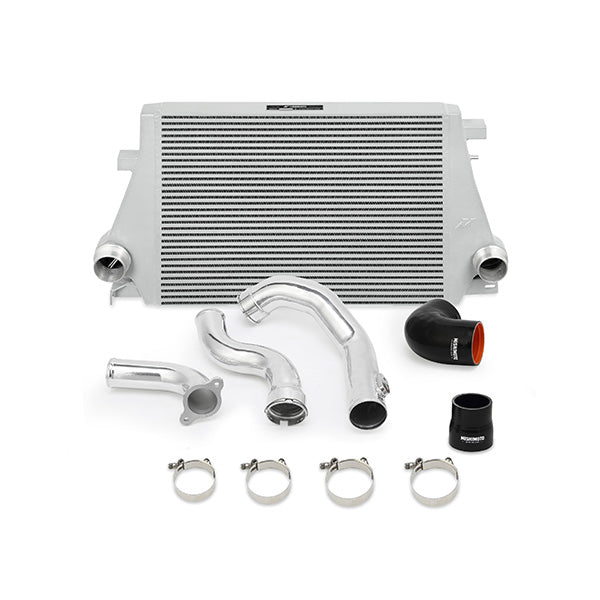

• TechSpec Includes: (1) Aluminum Intercooler--(2) Aluminum Pipes w/ CNC-machined quick-disconnects--(1) Aluminum Pipe w/ CNC-machined 2-bolt flange--(2) Quick-Disconnect Spring Clips--(1) 2.75-in 90-degree Silicone Coupler--(1) 2.25-in to 2.5-in Silicone Transition Coupler--(1) 2.5-in T-bolt Clamp--(1) 2.75-in T-bolt Clamp--(2) 3-in T-bolt Clamps--(3) Tree Clips--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.4
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: 450
• TechSpec Note: There is an O-ring inside of the stock intercooler pipe on the end that connects to the intercooler. This O-ring must be removed and installed into your Mishimoto intercooler pipe. Take note when removing it from the stock pipe as the O-ring must be installed in the correct direction. Please reference our installation video for additional information.
• TechSpec Outlet (in): 2.4
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: CN
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 20.77 x 20.77 x 20.77 inches
• Weight: 35.54 POUNDS
