Mishimoto MMINT-CIV-16KSLWBK Intercooler Kit Silver/Black Fits Honda Civic 1.5T/Si 2016-2021

Keep the charged air temperatures down in your turbocharged Civic with the 2016+ Honda Civic Performance Intercooler Kit from Mishimoto! In the age of the turbocharger, Honda has finally joined the ranks of forced induction by equipping their tenth generation of the Civic with the L15B7. Where the Earth Dreams technology might be advanced, It'still suffers from an age-old enemy -- heat. The stock intercooler utilizes a tube-and-fin construction coupled with plastic end tanks, giving high temperatures a perfect breeding ground. Our intercooler is designed with the Honda enthusiast in mind and eliminates high charged air temperatures that set up shop in the stock intercooler. The all-aluminum, bar-and-plate construction is specifically designed to shrug off heat generated from compressing air into the intake manifold. Our intercooler also has increased the volume by 102-percent and fin surface area by 97-percent, which helps drop outlet air temperatures by 20 F over the stock intercooler, and up to 42 F once a performance tune is added. The benefits of our upgraded design don't stop with the intercooler. Our direct-fit intercooler kit also gives the stock intercooler piping an overhaul. We ditched the plastic and rubber combination that made up the original equipment and replaced them with mandrel-bent aluminum and 5-layer, fiber-embedded silicone couplers. Our piping also increases the size of both the hot and cold-sides of the piping system from 42mm to 55mm, equating in a 30-percent increase in size. We also took the liberty of reducing the angles of the bends in the piping, giving the charged air a more direct flow through the intercooling system and improving the flow. Our performance intercooler kit adds up to 4 hp and 8 ft-lbs of torque on the stock tuning, with the potential to boost that power gain to 11 hp and 9 ft-lbs of torque with a tune.

• Patent Pending
• Max power gains of 4 whp and 8 ft-lbs torque on stock tuning
• Increased core size of 102-percent and fin surface area by 97-percent

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580034039
• CARB EO Number: D-759-12
• Cold Side Pipe Inside Diameter: 0
• Core Color: Silver
• Core Construction: Bar-and-Plate
• Core Height: 0
• Core Length: 0
• Core Material: Aluminum
• Core Thickness: 0
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 0
• Inlet Diameter: 0
• Install Difficulty: 3
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 0
• Maximum Horsepower: 0
• OptionLabel: Silver Intercooler, Black Piping
• Outlet Diameter: 0
• Pipe Color: Black
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Direct fit for the 2016-2021 Honda Civic 1.5T and Si
• SellingPoint02: Patent Pending
• SellingPoint03: Max power gains of 4 whp and 8 ft-lbs torque on stock tuning
• SellingPoint04: Increased core size of 102-percent and fin surface area by 97-percent
• SellingPoint05: Drops outlet air temperatures by 20F on the stock tune, and 42F with performance tuning
• SellingPoint06: Optimal core design for maximum cooling efficiency with minimal pressure drop
• SellingPoint07: 30-percent increase in size over stock intercooler piping
• SellingPoint08: Increased flow capacity ideal for tuned applications
• SellingPoint09: Mandrel-bent aluminum hot and cold-side piping for increased durability
• SellingPoint10: Available in silver or black intercooler with the option of wrinkle black or Rallye Red
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2016-2021 Honda Civic 1.5T--2017-2020 Honda Civic Si
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: FC1--FC3--FK4--FK7
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: L15B7

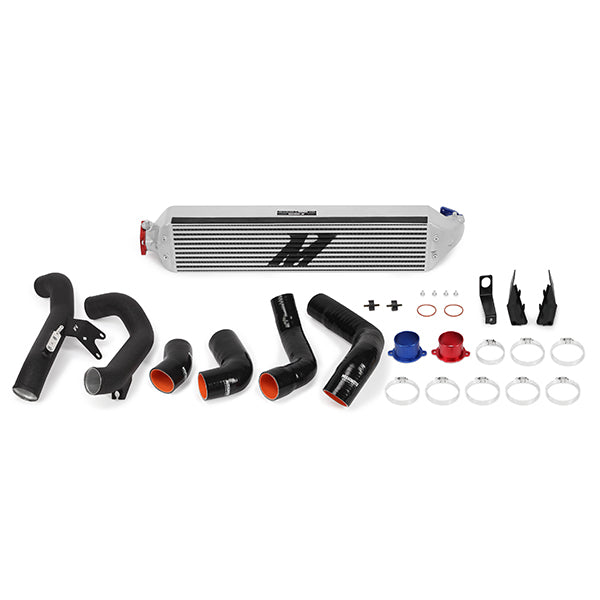

• TechSpec Includes: (1) Mishimoto Intercooler--(2) Mandrel-Bent Intercooler Pipes--(4) Silicone Couplers--(1) Stock Piping Adapter Kit--(1) Mishimoto Intercooler Piping Adapter Kit--(1) Shrouding Kit--(1) CARB EO Sticker--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Note: N/A
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): 19
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: CN
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16.9 x 16.9 x 16.9 inches
• Weight: 40.6 POUNDS
