Mishimoto MMINT-F2D-99KSLP Intercooler Kit Silver/Polished Fits Ford 7.3L Powerstroke 1999-2003

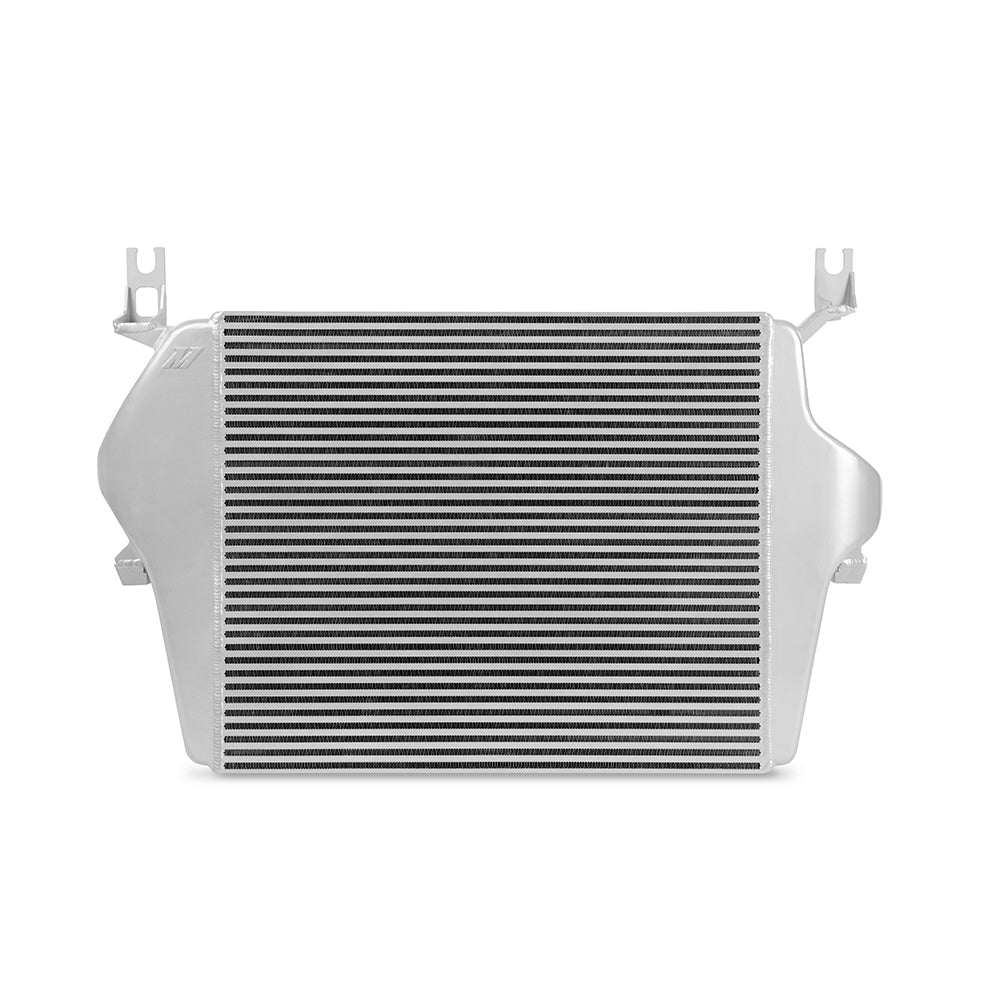

Upgrade your 1999-2003 Ford F-Series 7.3L Powerstroke with the Mishimoto Performance Intercooler Kit, a complete stock replacement solution that delivers superior cooling and improved efficiency. At the heart of this kit is our proven bar-and-plate intercooler, originally developed for the 6.0L Powerstroke and now expertly repurposed for 7.3L applications. We've paired this intercooler with custom-designed Mishimoto silicone boots featuring DuraCore technology to ensure a perfect fit on your 7.3L. The result is a comprehensive package that lowers air charge temperatures, reduces EGTs, and supports reliable performance at any power level. -- The intercooler itself features a significant increase in core volume over stock, durable cast aluminum end tanks, and an efficient bar-and-plate core design that reduces pressure drop while delivering cooler, denser air to your engine. The kit includes mandrel-bent aluminum piping available in polished or wrinkle-black powder-coated finishes, along with Mishimoto DuraCore silicone boots and constant-tension T-bolt clamps for secure, consistent holding power. DuraCore technology provides superior resistance to heat, pressure, fuel, and oil compared to standard silicone, effectively preventing leaks and blowouts while extending service life. -- Installation is straightforward with everything included: custom mounting spacers to properly secure the intercooler, additional hardware for a complete installation, and all necessary components for the conversion. Every part is engineered to last as long as your truck. Available with your choice of black or silver core, the Mishimoto 7.3L Powerstroke Intercooler Kit is backed by our signature lifetime warranty.

• Reduces turbo stress and extends engine life
• Provides improved airflow and lowers intake air temperatures
• Utilizes our proven 6.0L Powerstroke intercooler, repurposed for 7.3L applications

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580039621
• Cold Side Pipe Inside Diameter: 3
• Core Color: Silver
• Core Construction: Bar-and-Plate
• Core Height: 0
• Core Length: 0
• Core Material: Aluminum
• Core Thickness: 0
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 3.25
• Inlet Diameter: 3.25
• Install Difficulty: 3
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 0
• Maximum Horsepower: 0
• OptionLabel: Silver Intercooler, Polished Pipes
• Outlet Diameter: 3
• Pipe Color: Polished
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Reduces turbo stress and extends engine life
• SellingPoint02: Provides improved airflow and lowers intake air temperatures
• SellingPoint03: Utilizes our proven 6.0L Powerstroke intercooler, repurposed for 7.3L applications
• SellingPoint04: Includes hot-side and cold-side intercooler pipes and custom 7.3L-specific boots
• SellingPoint05: Custom mounting spacers and additional hardware included for secure installation
• SellingPoint06: 3.35" bar-and-plate core is 33% thicker than factory
• SellingPoint07: Intercooler available in Sleek Silver and Stealth Black
• SellingPoint08: 3" mandrel-bent aluminum pipes available in polished or wrinkle-black finish
• SellingPoint09: 32.5% increase in core volume over stock 7.3L intercooler
• SellingPoint10: End tanks strategically designed for optimal airflow
• SellingPoint11: Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-bolt Clamps
• SellingPoint12: Mishimoto Lifetime Warranty
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 1999-2003 Ford F-250 Super Duty--1999-2003 Ford F-350 Super Duty--1999-2003 Ford F-450 Super Duty--1999-2003 Ford F-550 Super Duty--2000-2003 Ford Excursion
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: N/A

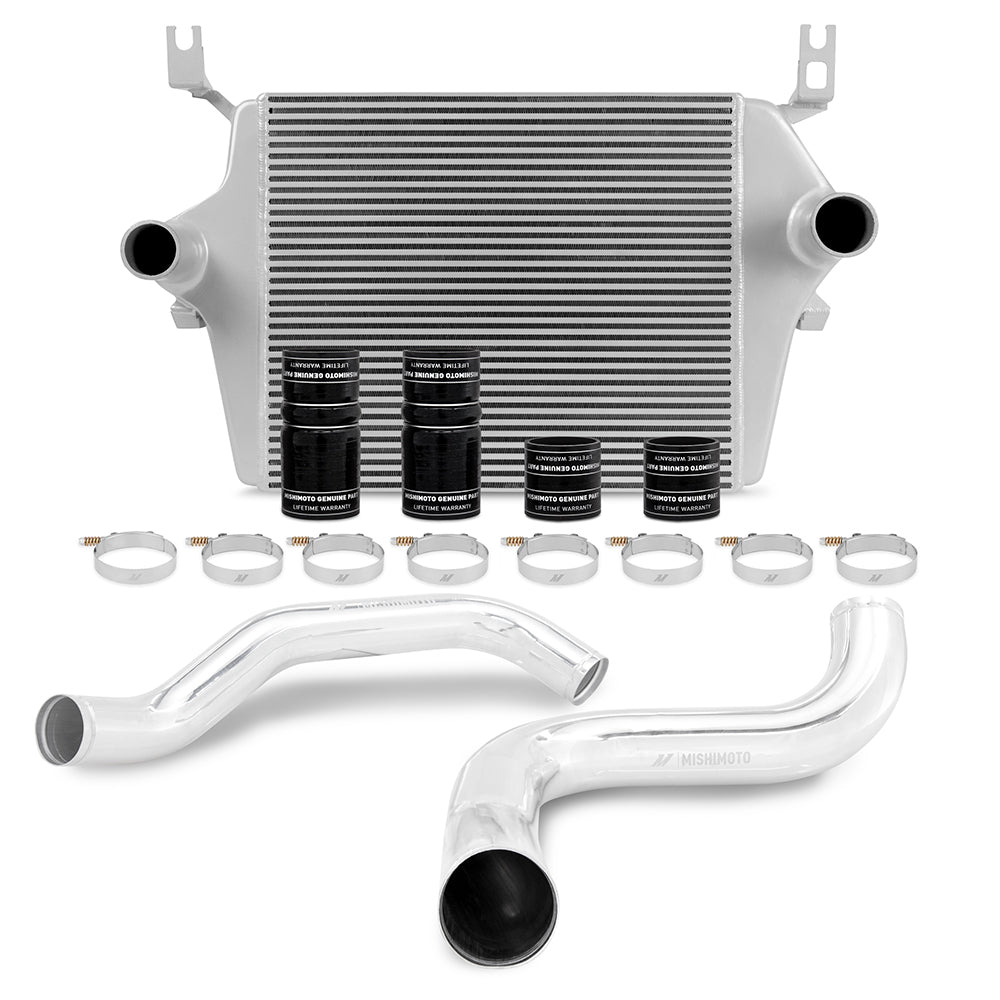

• TechSpec Includes: (1) Intercooler--(1) Intercooler Pipe Set--(4) Silicone Boots with DuraCore--(7) 3.5-in Constant-Tension T-bolt Clamps--(1) 3.75-in Constant-Tension T-bolt Clamp--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 3.25
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Note: N/A
• TechSpec Outlet (in): 3
• TechSpec Overall Height (in): 25.2
• TechSpec Overall Length (in): 38.5
• TechSpec Overall Width (in): 7.5
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: China
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26.36 x 26.36 x 26.36 inches
• Weight: 72.63 POUNDS
