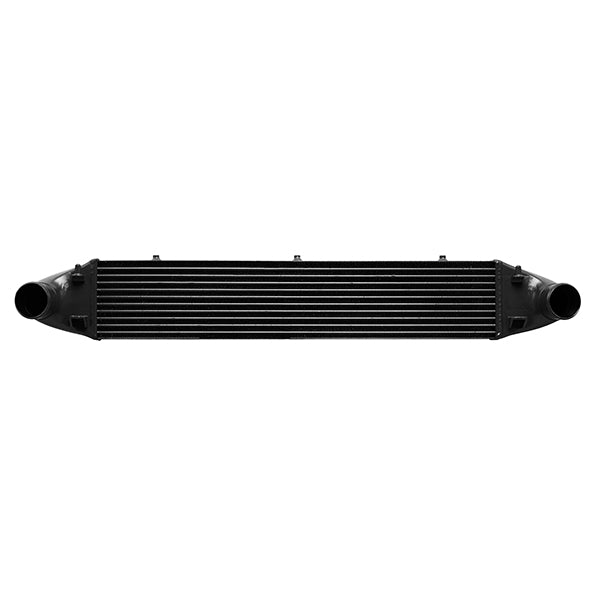

Mishimoto MMINT-FIST-14BK Intercooler Black Fits Ford Fiesta ST 2014-2019

Many prototypes entered, but only one came out on top. The engineers went through multiple different designs for this 2014-2017 Fiesta ST intercooler, weighing the benefits and downfalls of each. The final design consists of a tube-and-fin style intercooler in order to allow airflow to the radiator and reduce overall weight. The core size is 51-percent larger than stock, and also provides a 25-percent increase in internal core volume. During testing, this 2014-2017 Fiesta ST intercooler dropped intake temperatures by a huge 26 F! This kit is designed to be a direct fit, and fits with the stock or Mishimoto 2014-2017 Fiesta ST Intercooler Pipes. Combine the two, and you'll have a complete high-performance charged air system. This Fiesta ST intercooler kit includes air diversion plates to channel air through the cooler for maximum efficiency. The all-aluminum, TIG-welded construction is of the highest quality, and like all Mishimoto 2014-2017 Fiesta ST parts, it is backed by the Mishimoto Lifetime Warranty!

• Direct-fit for the 2014-2019 Ford Fiesta ST
• 26F (15C) reduction in AIT
• 51-percent increase in core size

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354027525
• CARB EO Number: D-759-6
• Core Color: Black
• Core Height: 6.35
• Core Length: 28.8
• Core Material: Aluminum
• Core Thickness: 2.59
• Grade Type: Performance
• Height: 6.36
• Inlet Fitting Gender: Male
• Inlet Outside Diameter: 2.55
• Inlet Tank Material: Aluminum
• Install Difficulty: 3
• Length: 40.1
• OptionLabel: Black
• Outlet Fitting Gender: Male
• Outlet Outside Diameter: 2.55
• SellingPoint01: Direct-fit for the 2014-2019 Ford Fiesta ST
• SellingPoint02: 26F (15C) reduction in AIT
• SellingPoint03: 51-percent increase in core size
• SellingPoint04: 25-percent increase in internal core volume and 226-percent increase in external fin surface area
• SellingPoint05: Includes air diversion plates to direct air through the intercooler core for maximum efficiency
• SellingPoint06: Stock location prevents airflow blockage to radiator and AC condenser
• SellingPoint07: Tube and fin construction for added weight reduction over bar and plate cores
• SellingPoint08: All-aluminum, TIG-welded
• SellingPoint09: Available in Sleek Silver or Stealth Black or Bold Gold
• SellingPoint10: Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
• SellingPoint11: Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
• SellingPoint12: Mishimoto Lifetime Warranty
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2014-2019 Ford Fiesta ST
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: B3
• TechSpec Core Height (in): 6.35
• TechSpec Core Length (in): 28.8
• TechSpec Core Thickness (in): 2.59
• TechSpec Core Type: Tube-and-Fin
• TechSpec Engine Codes: 1.6L Ecoboost

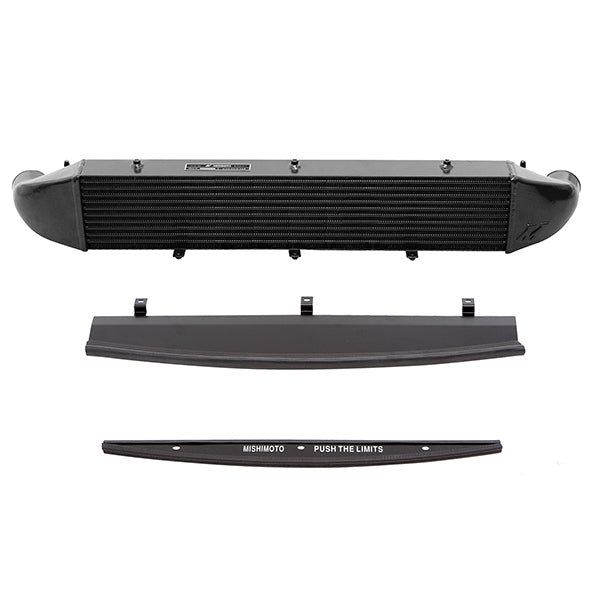

• TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.55
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 40
• TechSpec Maximum Recommended Horsepower: 325
• TechSpec Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
• TechSpec Outlet (in): 2.55
• TechSpec Overall Height (in): 6.36
• TechSpec Overall Length (in): 40.1
• TechSpec Overall Width (in): 6.15
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): 13.4
• Type: Tube-and-Fin
• Universal Or Specific Fit: Specific
• Width: 6.15

Extended Information:

• Country of Origin: China
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 44.55 x 10.3 x 11 inches
• Weight: 45.3 POUNDS
