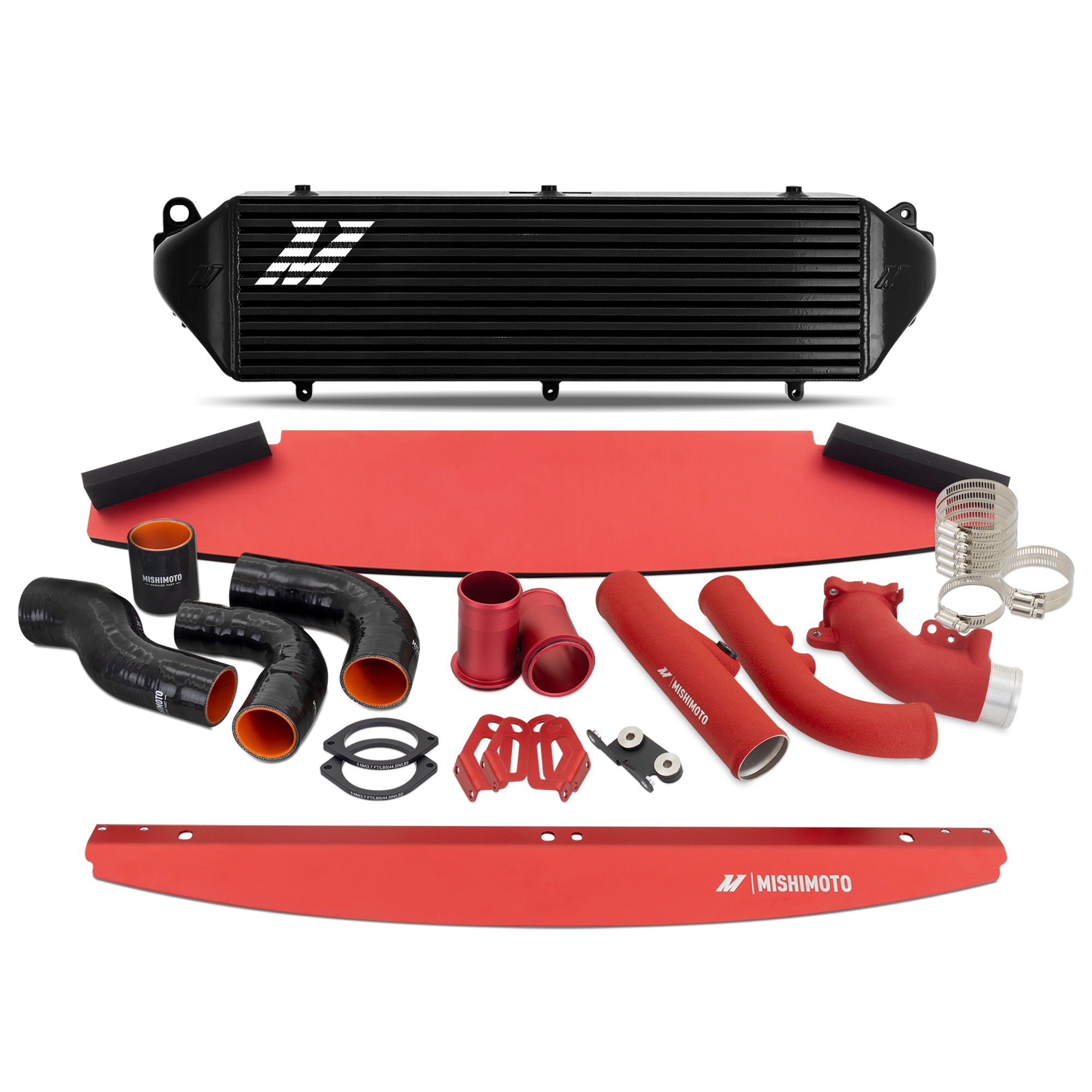

Mishimoto MMINT-GRC-23K Intercooler Kit Black/Red Fits Toyota GR Corolla 2023+

Unleash the full potential of your 2023+ Toyota GR Corolla with the Mishimoto Performance Intercooler Kit—engineered for serious performance and unwavering reliability. This complete bolt-on solution includes everything you need for a seamless upgrade: a high-efficiency intercooler, precision-engineered hot- and cold-side aluminum piping, durable silicone couplers, and high-torque worm-gear clamps. -- At the heart of the kit is a massive 4 thick bar-and-plate core that delivers outstanding heat transfer, slashing intake temperatures and improving overall engine efficiency. With a 52% increase in core volume over the stock unit, this intercooler is built to handle the demands of spirited driving and track days alike. Robust cast-aluminum end tanks and CNC-machined inlet/outlet connections ensure smooth, unrestricted airflow and long-lasting performance under pressure. -- An anodized aluminum air duct channels airflow precisely through the intercooler's external fins, maximizing cooling efficiency, while the tough powder-coated finish keeps the entire system looking as sharp as it performs. Backed by the Mishimoto Lifetime Warranty, this intercooler kit is the ultimate cooling upgrade for drivers who demand more power, better cooling, and proven reliability. Step up from stock—your GR Corolla deserves it.

• Direct-fit for the 2023+ Toyota GR Corolla
• Cast throttle body elbow connection for drastically improved airflow and throttle response.
• Durable 4 thick bar-and-plate core provides superior heat transfer

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197725399
• CARB EO Number: D-759-27
• Cold Side Pipe Inside Diameter: 2.28
• Core Color: Black
• Core Construction: Bar-and-Plate
• Core Height: 6.93
• Core Length: 24.8
• Core Material: Aluminum
• Core Thickness: 3.94
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 2.28
• Inlet Diameter: 2.28
• Install Difficulty: 5
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 50
• Maximum Horsepower: 650
• Optionlabel: Black Cooler, Red Pipes
• Outlet Diameter: 2.28
• Pipe Color: Red
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Direct-fit for the 2023+ Toyota GR Corolla
• SellingPoint02: Cast throttle body elbow connection for drastically improved airflow and throttle response.
• SellingPoint03: Durable 4” thick bar-and-plate core provides superior heat transfer
• SellingPoint04: 52% increase in core volume compared to stock
• SellingPoint05: Robust cast-aluminum end tanks for dependable performance
• SellingPoint06: CNC-machined inlet/outlet for smooth airflow entry into intercooler
• SellingPoint07: Durable powder-coated finish
• SellingPoint08: Anondized aluminum ducting ensures optimal airflow through external fins, improving overall cooling efficiency
• SellingPoint09: Wire-reinforced 5-layer silicone with heat resistant fibers
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: Toyota GR Corolla 1.6L L3 2023+
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: GZEA14
• TechSpec Core Height (in): 6.93
• TechSpec Core Length (in): 24.8
• TechSpec Core Thickness (in): 3.94
• TechSpec Core Type: Bar-And-Plate
• TechSpec Engine Codes: G16E-GTS
• TechSpec Includes: (1) Intercooler, (1) Intercooler Adapter Set, (1) Intercooler Adapter Retainer Set, (1) Intercooler Ducting Set, (1) Intercooler Piping and coupler kit, Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.28
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 50
• TechSpec Maximum Recommended Horsepower: 650
• TechSpec Note: Not designed to fit 8-speed GR-DAT automatic transmission.
• TechSpec Outlet (in): 2.28
• TechSpec Overall Height (in): 8.19
• TechSpec Overall Length (in): 32.85
• TechSpec Overall Width (in): 7.67
• TechSpec Pipe Diameter: Hot side: 2.0, Cold side: 2.25
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): 25
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: CN
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: BX
• Dimension: 17.93 x 17.93 x 17.93 inches
• Weight: 33.3 POUNDS
