Mishimoto MMINT-GRC-23SL Intercooler Silver Fits Toyota GR Corolla 2023+

• Durable 4 thick bar-and-plate core provides superior heat transfer
• 52% increase in core volume compared to stock
• 10% reduction in airflow restriction compared to stock

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197722398
• CARB EO Number: D-759-27
• Core Color: Silver
• Core Height: 6.93
• Core Length: 24.8
• Core Material: Aluminum
• Core Thickness: 3.94
• Grade Type: Performance
• Height: 8.19
• Inlet Fitting Gender: Male
• Inlet Outside Diameter: 1.77
• Inlet Tank Material: Aluminum
• Install Difficulty: 3
• Length: 32.85
• OptionLabel: Silver
• Outlet Fitting Gender: Male
• Outlet Outside Diameter: 1.77
• SellingPoint01: Direct fit for 2023+ Toyota GR Corolla
• SellingPoint02: Durable 4” thick bar-and-plate core provides superior heat transfer
• SellingPoint03: 52% increase in core volume compared to stock
• SellingPoint04: 10% reduction in airflow restriction compared to stock
• SellingPoint05: Reduces intercooler outlet temperatures by 38.5F over stock intercooler
• SellingPoint06: Bolt-on power gains of 11.42hp and 14.93ft-lbs
• SellingPoint07: Robust cast-aluminum end tanks
• SellingPoint08: CNC-machined inlet/outlet for smooth airflow entry into intercooler
• SellingPoint09: Durable powder coated finish available in silver or black
• SellingPoint10: Anodized aluminum ducting ensures optimal airflow through external fins, improving overall cooling efficiency
• SellingPoint11: Mishimoto Lifetime Warranty"
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: Toyota GR Corolla 1.6L L3 2023+
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: GZEA14
• TechSpec Core Height (in): 6.93
• TechSpec Core Length (in): 24.8
• TechSpec Core Thickness (in): 3.94
• TechSpec Core Type: Bar-And-Plate
• TechSpec Engine Codes: G16E-GTS

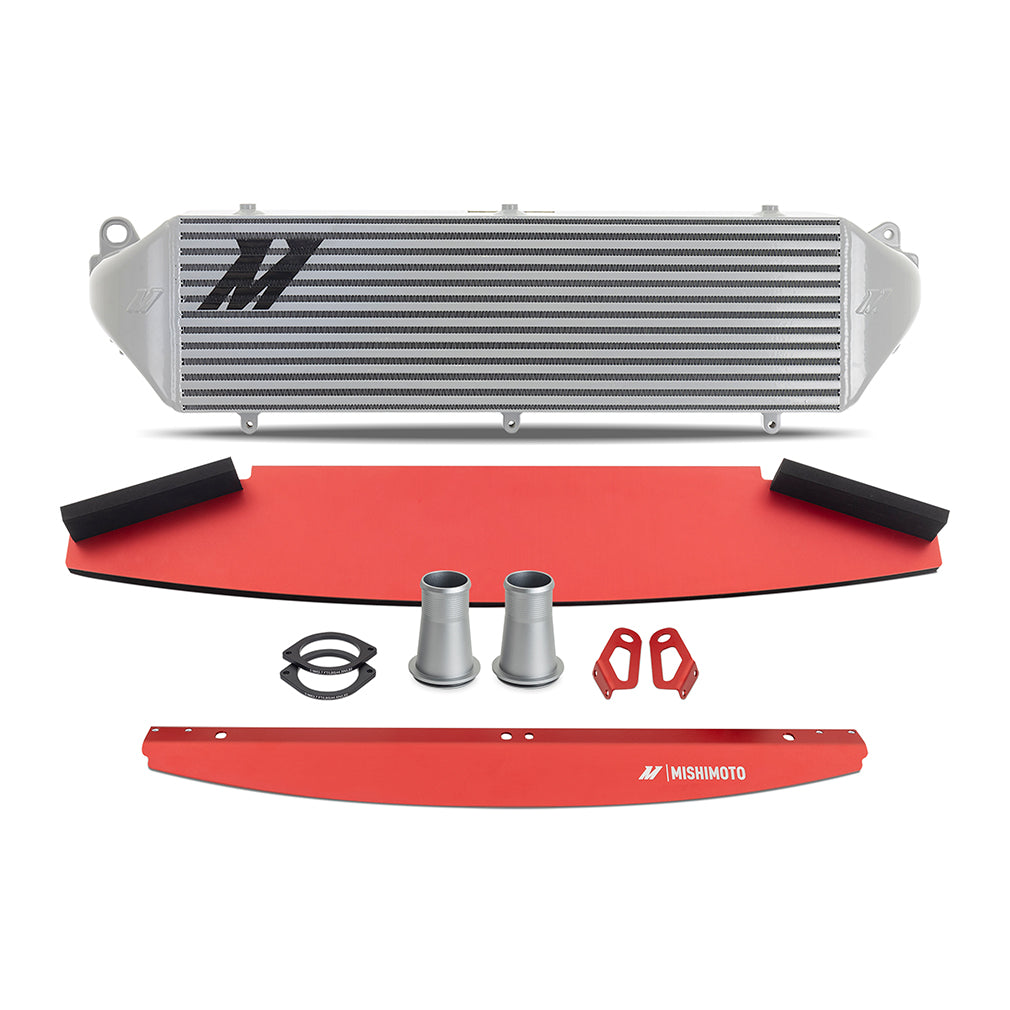

• TechSpec Includes: (1) Intercooler--(1) Intercooler Adapter Set--(1) Intercooler Adapter Retainer Set--(1) Intercooler Ducting Set--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.77
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 50
• TechSpec Maximum Recommended Horsepower: 400
• TechSpec Note: Not designed to fit 8-speed GR-DAT automatic transmission.
• TechSpec Outlet (in): 1.77
• TechSpec Overall Height (in): 8.19
• TechSpec Overall Length (in): 32.85
• TechSpec Overall Width (in): 7.67
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): 25
• Type: Bar-And-Plate
• Universal Or Specific Fit: Specific
• Width: 7.67

Extended Information:

• Country of Origin: China
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: BX
• Dimension: 41.9 x 10.75 x 10.6 inches
• Weight: 30.5 POUNDS
