Mishimoto MMINT-MK7-15KP Intercooler Kit Silver/Polished Fits Volkswagen MK7 Golf TSI/GTI/R 2015-2021

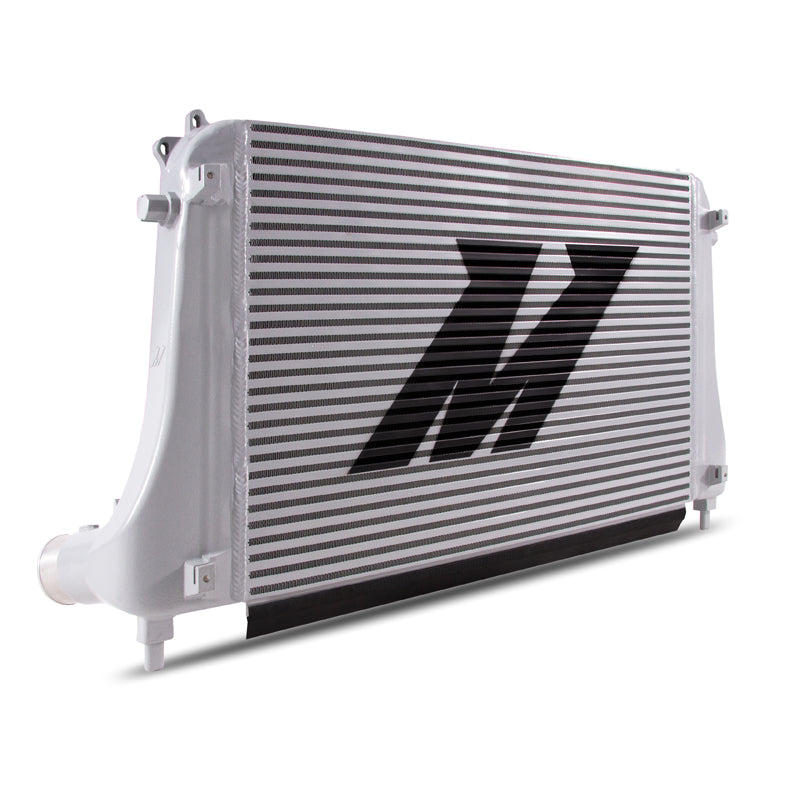

The mantra behind the grandfather of all hot-hatchbacks has long since been that big things come in small packages. The 2015 - 2021 Golf TSI/GTI/R's and its intercooling system are about to receive a much-needed overhaul with the Mishimoto Performance Intercooler Kit. The stock system can be best described as the meat in an intercooler sandwich. It's no wonder with it placed directly between the radiator and AC condenser that this tube-and-fin constructed intercooler has trouble keeping up. Where this lighter core coupled with plastic end tanks might be suited for mass production and tame street driving, it will struggle to keep your intake air temperatures down under more intense driving, especially after the boost is turned up. The Mishimoto 2015 - 2021 Volkswagen MK7 Golf TSI/GTI/R Performance Intercooler, armed with an arsenal of cooling technology, takes the place of the stock intercooler. Our engineers were able to squeeze in a larger core, increasing the overall volume by 89-percent over stock and bumping up the external fin surface area by 162-percent. On top of the larger core, our all-aluminum, TIG-welded intercooler features a more robust bar-and-plate construction for better heat dissipation characteristics. In addition, the cast aluminum end tanks are integrated with airflow diverters to ensure use of the full core. In addition to the more robust intercooler, our Performance Intercooler Kit for your 2015 - 2021 Golf or Audi A3/S3 includes our Performance Intercooler Pipe Kit. We ditched the stock plastic piping and rubber couplers for mandrel-bent aluminum piping and 5-layer silicone couplers. Our piping increases the air channels to and from the intercooler to 2.75 inches, resulting in a 30-percent increase in flow.When combined, our innovations for the MK7 intercooling system yielded max power gains of 14.5 whp and 13 wtq on the stock tuning. In addition, our charged air cooler dropped intercooler outlet temperatures by 23 F

• Max power gains of 14.5 whp and 13 wtq on stock tuning
• 89-percent increase in core volume
• 162-percent increase in external fin surface area

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580034862
• Cold Side Pipe Inside Diameter: 2.1
• Core Color: Silver
• Core Construction: Bar-and-Plate
• Core Height: 0
• Core Length: 0
• Core Material: Aluminum
• Core Thickness: 2.2
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 2.1
• Inlet Diameter: 2.1
• Install Difficulty: 4
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 0
• Maximum Horsepower: 0
• OptionLabel: Polished Pipes
• Outlet Diameter: 2.1
• Pipe Color: Polished
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Direct fit for the 2015 - 2021 Volkswagen Golf TSI/GTI/R and Audi A3/S3
• SellingPoint02: Max power gains of 14.5 whp and 13 wtq on stock tuning
• SellingPoint03: 89-percent increase in core volume
• SellingPoint04: 162-percent increase in external fin surface area
• SellingPoint05: Drops intercooler outlet temperature by 23F
• SellingPoint06: Cast end tanks with internal diverters for optimal airflow through core
• SellingPoint07: 10-percent increase in average diameter over stock piping
• SellingPoint08: 30-percent increase in flow over stock components
• SellingPoint09: Mandrel-bent aluminum piping with durable 5-layer silicone couplers
• SellingPoint10: Bar-and-plate intercooler core construction
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2015-2021 Volkswagen Golf TSI--2015-2021 Volkswagen GTI--2015-2021 Volkswagen Golf R--2015-2021 Audi A3--2015-2021 Audi S3--2016-2021 Audi TT
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: MQB
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): 2.2
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: N/A

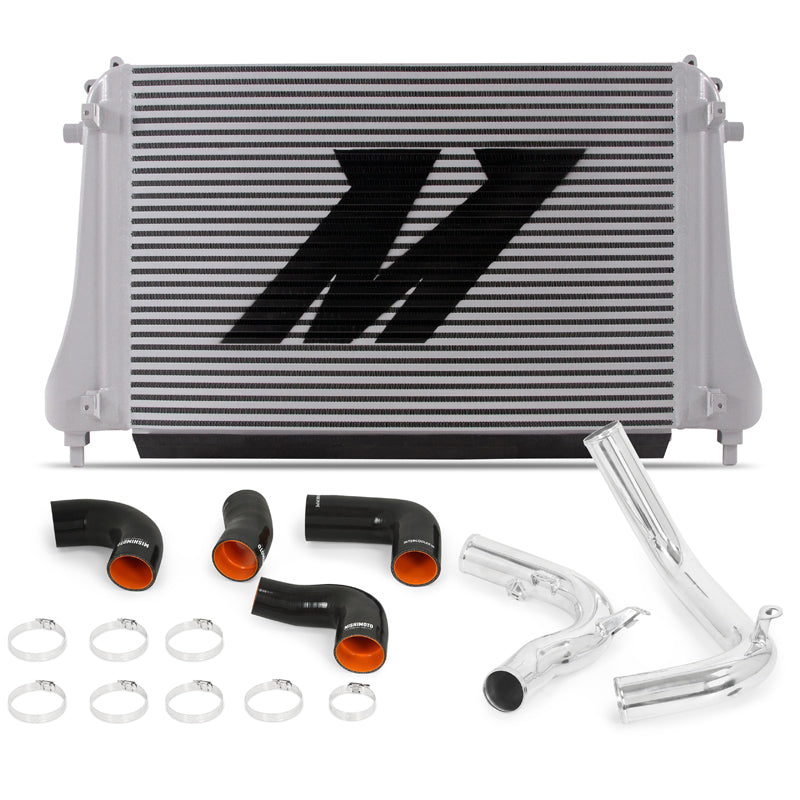

• TechSpec Includes: (1) Performance Intercooler--(1) Performance Piping Kit--(2) CNC-Machined Aluminum Mounting Brackets--(4) Silicone Couplers--(8) High-Torque Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.1
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Note: This kit is compatible with the EA888 Gen3 engine and manual or 6-speed DSG transmissions only. Hot-side intercooler piping may not fit properly on vehicles equipped with 7-speed DSG transmissions.
• TechSpec Outlet (in): 2.1
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): 27
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: China
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 21.93 x 21.93 x 21.93 inches
• Weight: 40.55 POUNDS
