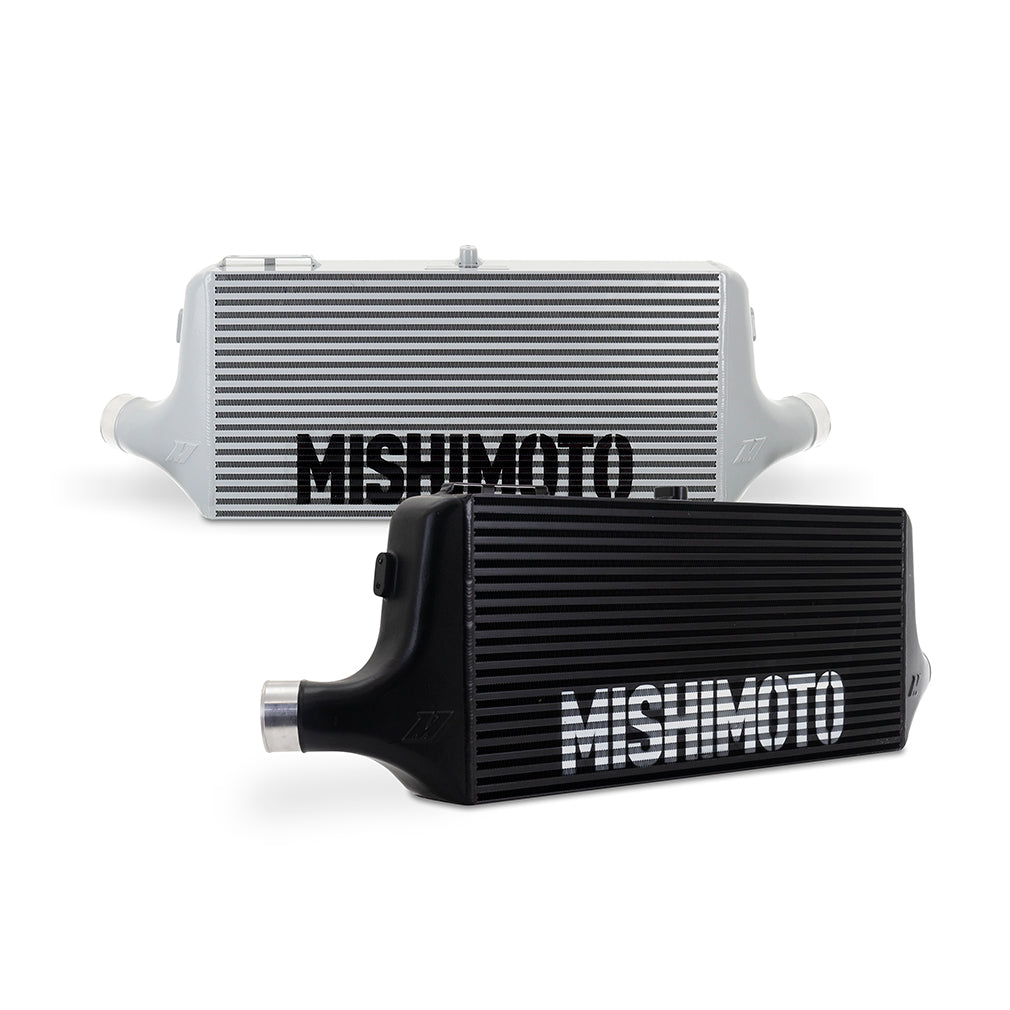

Mishimoto MMINT-ULBK Universal Intercooler L-Line Black

Big power requires big cooling, and Mishimoto is here to deliver. This Mishimoto universal L-line intercooler features a massive 4"-thick core that's capable of supporting up to 1,000 horsepower. The one-piece, cast-aluminum end tanks are far stronger than cut-and-weld tanks, making them capable of holding up to 60 PSI of boost. Large 2.4" inlet and outlets ensure ample flow, while the 26.57"x12.4" bar-and-plate core effectively transfers heat out of your charge air. Unlike many stock plastic end tank intercoolers, our end tanks are precision TIG-welded to the core for durability and reliability, pass after pass.----This universal L-line intercooler features three integrated mounts with pre-threaded M6 holes to make fabricating mounts and installing easy. The center support mount also ensure the intercooler is properly supported for aggressive driving. An integrated harness/sensor mount makes keeping your wires safe and tidy easy. This intercooler is available in a durable sleek silver or stealth black powder-coated finish. Like all our performance products, this universal L-line bar-and-plate intercooler is backed by our Mishimoto Lifetime Warranty.

• Durable bar-and-plate core provides superior heat transfer and effectively reduce charge air temps
• Massive, 4"-thick core and 2.4" inlet/outlet support up to 1,000 horsepower
• Robust, one-piece cast aluminum end tanks withstand up to 60 PSI of boost pressure

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197720905
• Core Color: Black
• Core Height: 12.14
• Core Length: 26.57
• Core Material: Aluminum
• Core Thickness: 3.93
• Grade Type: Performance
• Height: 12.89
• Inlet Fitting Gender: Male
• Inlet Outside Diameter: 2.4
• Inlet Tank Material: Aluminum
• Install Difficulty: 3
• Length: 40.22
• OptionLabel: Black
• Outlet Fitting Gender: Male
• Outlet Outside Diameter: 2.4
• SellingPoint01: Durable bar-and-plate core provides superior heat transfer and effectively reduce charge air temps
• SellingPoint02: Massive, 4"-thick core and 2.4" inlet/outlet support up to 1,000 horsepower
• SellingPoint03: Robust, one-piece cast aluminum end tanks withstand up to 60 PSI of boost pressure
• SellingPoint04: Three integrated mounting points with pre-threaded M6 holes make mounting easy
• SellingPoint05: Included bracket for harnesses or sensors keeps wiring safe and secure
• SellingPoint06: Precision TIG-welded joints won't crack under pressure
• SellingPoint07: Available in durable stealth black or sleek silver powder-coated finish
• SellingPoint08: Mishimoto Lifetime Warranty
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 12.14
• TechSpec Core Length (in): 26.57
• TechSpec Core Thickness (in): 3.93
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: N/A
• TechSpec Includes: (1) Universal L-Line Intercooler-- Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.4
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 60
• TechSpec Maximum Recommended Horsepower: 1000
• TechSpec Note: N/A
• TechSpec Outlet (in): 2.4
• TechSpec Overall Height (in): 12.89
• TechSpec Overall Length (in): 40.22
• TechSpec Overall Width (in): 6
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A
• Type: Bar-and-Plate
• Universal Or Specific Fit: Specific
• Width: 6

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: BX
• Dimension: 43.75 x 8.5 x 16 inches
• Weight: 22.5 POUNDS
