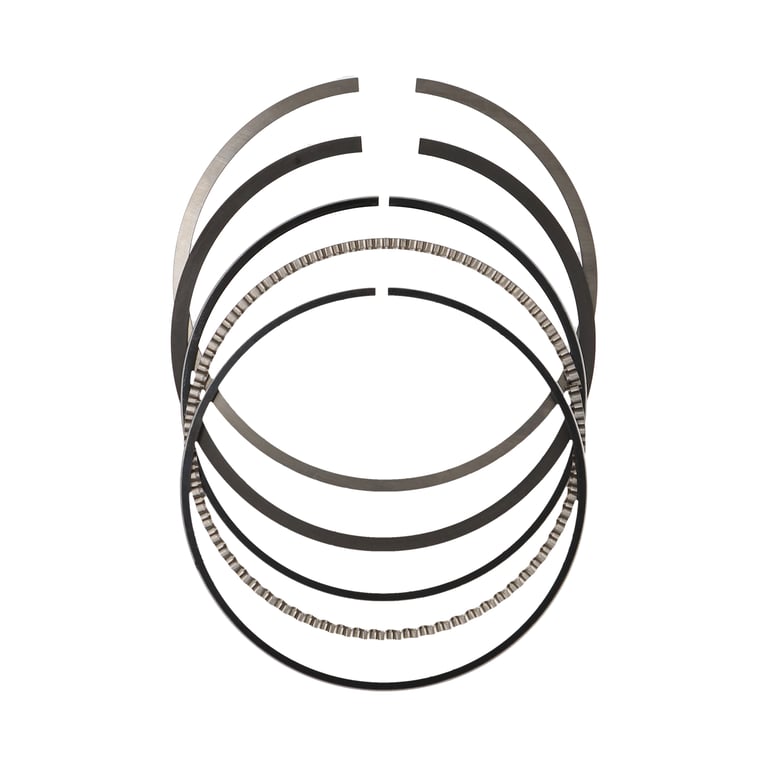

Piston Ring Set - 3.110 In. Bore - 0.0394 In. Top / 0.0472 In. 2nd / 0.110 In. Oil - 1 Cyl.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

• Alloy steel ferrox coated top ring
• Cast iron phosphate coated second ring
• 3 piece oil assembly
• Stainless steel spacer

Attributes:

• Brand Name: JE Pistons
• GTIN: 00193564223814
• Bore Diameter: 3.110
• Bore Diameter - Web: 3.110 IN / 78.99 MM
• EBAY Category ID: 33623
• Engine Type: ICE
• File Fit: Yes
• Industry: Automotive
• Oil Ring Axial Height: 2.80
• Oil Ring Radial Width: 0.128
• Oil Ring Thickness: 0.110
• Out of Stock Message: Call for Availability
• Product Type: Engine Piston Ring Set
• Ring Set Thickness: 0.0394 in. Top x 0.0472 in. 2nd x 0.110 in. Oil
• Ring Type: 3 Ring
• Second Compression Ring Thickness: 0.0472
• Second Ring Axial Height: 1.20
• Second Ring Facing Material: Phosphate
• Second Ring Material: Iron
• Second Ring Radial Width: 0.138
• Second Ring Shape: Taper Face, Back Cut, Neutral
• Third Ring Facing Material: Carbon Steel
• Third Ring Material: Carbon Steel
• Third Ring Shape: SS50U Style
• Top Compression Ring Thickness: 0.0394
• Top Ring Axial Height: 0.80
• Top Ring Facing Material: Chrome
• Top Ring Material: Carbon Steel
• Top Ring Radial Width: 0.123
• Top Ring Shape: Barrel Face, Back Cut, Neutral

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 11 x 5.5 x 2 inches
• Weight: 1.5 POUNDS
