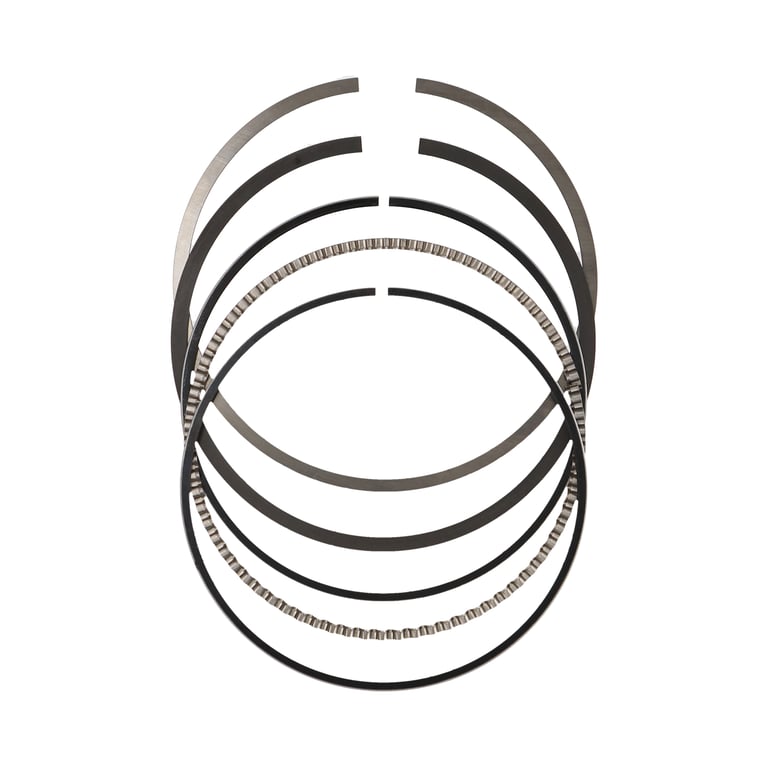

Piston Ring Set - 4.145 In. Bore - 0.0472 In. Top / 0.0591 In. 2nd / 0.118 In. Oil - 1 Cyl.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

• High strength alloy steel top ring provides superior bore conformity
• outstanding seal and wear characteristics of a high velocity plasma moly inlay coating
• top ring weighs under 10 grams
• reduced ring radials and short axial heights help minimize cylinder wall drag
• optional 2nd ring Napier hook profile design helps improve oil control and effeciency

Attributes:

• Brand Name: JE Pistons
• GTIN: 00193564226754
• Bore Diameter: 4.145
• Bore Diameter - Web: 4.145 IN / 105.28 MM
• EBAY Category ID: 33623
• Engine Type: ICE
• File Fit: Yes
• Industry: Automotive
• Oil Ring Thickness: 0.118
• Out of Stock Message: Call for Availability
• Product Type: Engine Piston Ring Set
• Ring Set Thickness: 0.0472 in. Top x 0.0591 in. 2nd x 0.118 in. Oil
• Second Compression Ring Thickness: 0.0591
• Second Ring Facing Material: Phosphate
• Second Ring Material: Iron
• Third Ring Facing Material: Carbon Steel
• Third Ring Material: Carbon Steel
• Top Compression Ring Thickness: 0.0472
• Top Ring Facing Material: Plasma Moly
• Top Ring Material: Carbon Steel

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 11 x 5.5 x 2 inches
• Weight: 1.5 POUNDS
