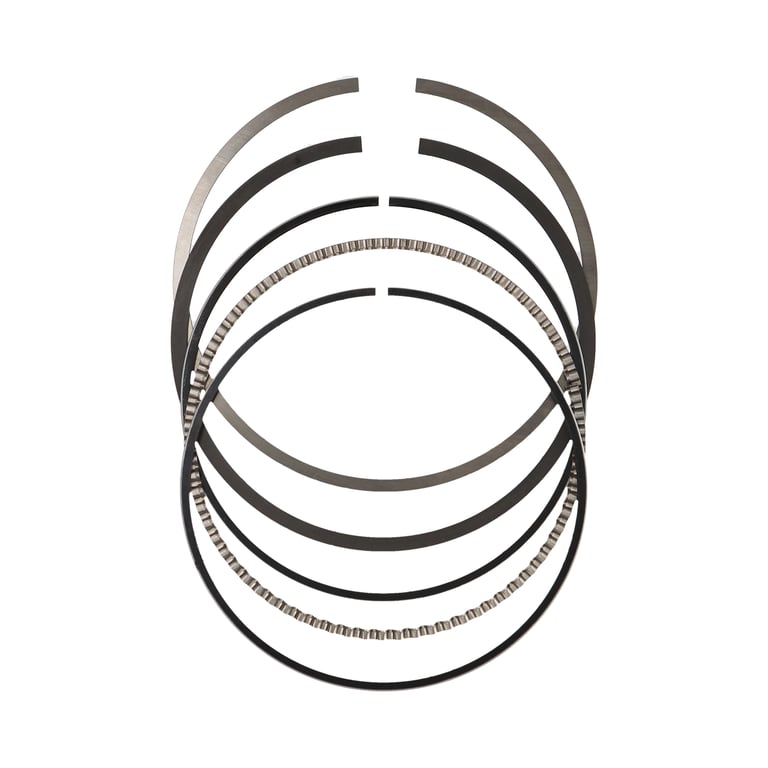

Piston Ring Set 6 Cyl. File Fit Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

• Hard, wear resistant surface
• Barrel faced ring face maintains a very low coefficient of friction

Attributes:

• Brand Name: JE Pistons
• GTIN: 00193564230942
• Bore Diameter: 4.016
• Bore Diameter - Web: 4.016 IN / 102.01 MM
• Engine Type: ICE
• File Fit: Yes
• Industry: Automotive
• Oil Ring Axial Height: 3.00
• Oil Ring Radial Width: 0.150
• Oil Ring Thickness: 0.118
• Product Type: Engine Piston Ring Set
• Ring Set Thickness: 0.0591 in. Top x 0.0689 in. 2nd x 0.118 in. Oil
• Ring Type: 3 Ring
• Second Compression Ring Thickness: 0.0689
• Second Ring Axial Height: 1.75
• Second Ring Facing Material: Phosphate
• Second Ring Material: Iron
• Second Ring Radial Width: 0.165
• Second Ring Shape: Napier, Back Cut, Neutral
• Third Ring Facing Material: Iron
• Third Ring Material: Iron
• Third Ring Shape: 2 Piece with Inner Spring, Double Bevel
• Top Compression Ring Thickness: 0.0591
• Top Ring Axial Height: 1.50
• Top Ring Facing Material: Phosphate
• Top Ring Material: Iron
• Top Ring Radial Width: 0.165
• Top Ring Shape: Taper Face, Back Cut, Neutral

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 11 x 5.5 x 2 inches
• Weight: 1.5 POUNDS
