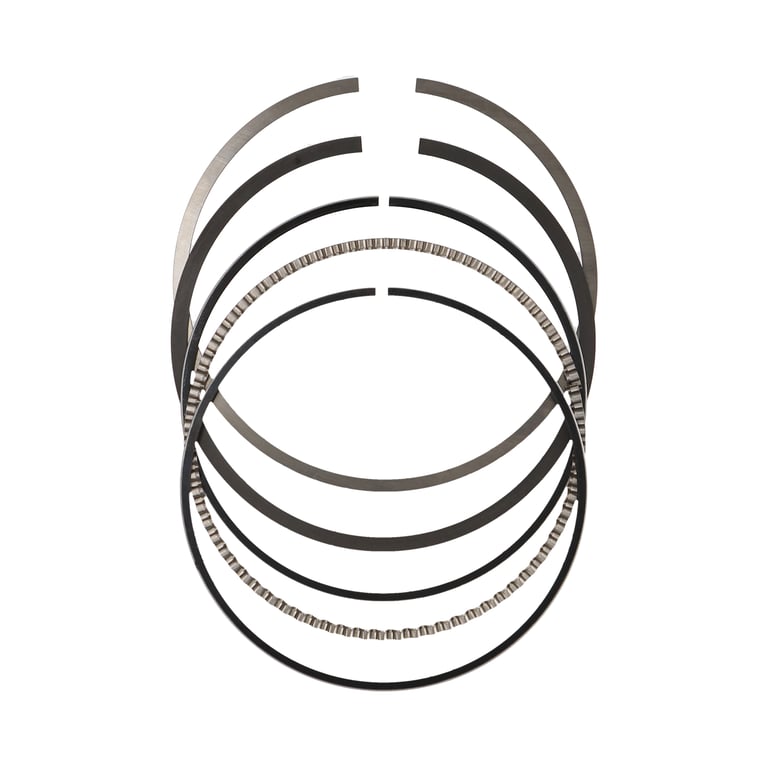

Piston Ring Set 8 Cyl. File Fit Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

• Specially designed for use with turbo and nitrous applications
• top rings have 20% more tensile strength than conventional ductile iron top rings

Attributes:

• Brand Name: JE Pistons
• GTIN: 00193564229588
• Bore Diameter: 4.000
• Bore Diameter - Web: 4.000 IN / 101.60 MM
• Engine Type: ICE
• File Fit: Yes
• Industry: Automotive
• Oil Ring Axial Height: 3/16
• Oil Ring Radial Width: 0.150
• Oil Ring Thickness: 0.188
• Product Type: Engine Piston Ring Set
• Ring Set Thickness: 0.0640 in. Top x 0.0640 in. 2nd x 0.188 in. Oil
• Ring Type: 3 Ring
• Second Compression Ring Thickness: 0.0640
• Second Ring Axial Height: 1/16
• Second Ring Facing Material: Phosphate
• Second Ring Material: Iron
• Second Ring Radial Width: 0.187
• Second Ring Shape: Taper Face, D-wall, Reverse Torsional
• Third Ring Facing Material: Carbon Steel
• Third Ring Material: Carbon Steel
• Third Ring Shape: Full Seal, Flex Vent
• Top Compression Ring Thickness: 0.0640
• Top Ring Axial Height: 1/16
• Top Ring Facing Material: Phosphate
• Top Ring Material: Hard Ductile Iron
• Top Ring Radial Width: 0.187
• Top Ring Shape: Barrel Face, D-wall, Torsional

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 11 x 5.5 x 2 inches
• Weight: 1.5 POUNDS
