SRP Pro Series Chevrolet LS Gen III Inverted Dome Piston Kit

SKU: BHXG-288005
(0)
In stock
Usually ships within 24 hours
$936.99

Got questions?
Feel free to get in touch

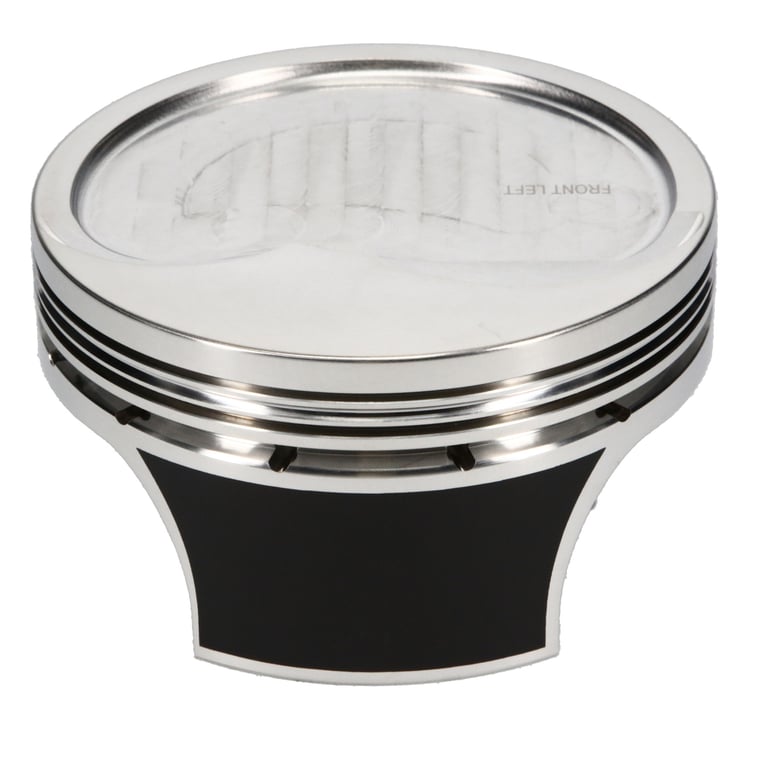

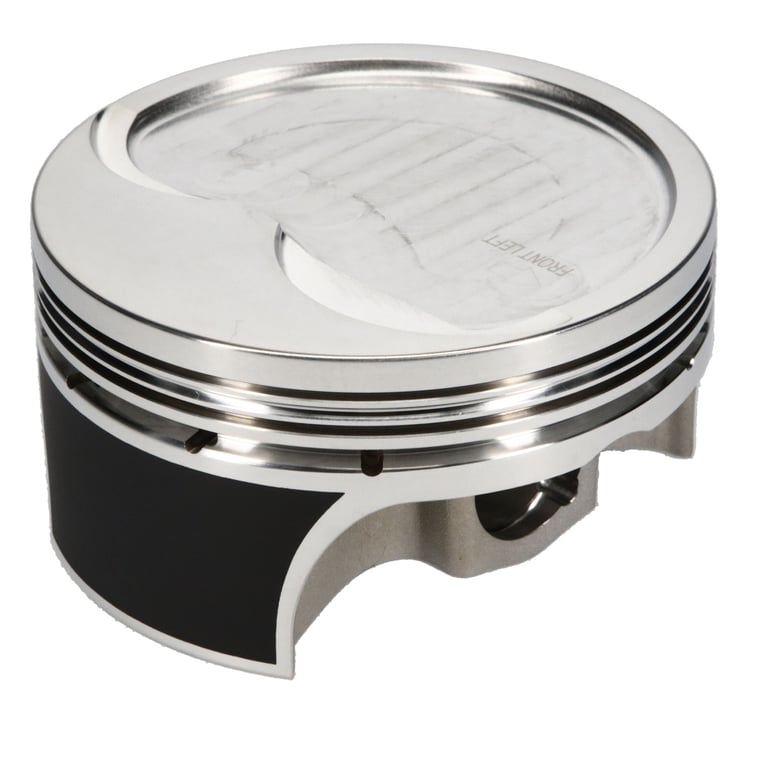

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
  • Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Vehicle Specific
  • Chevrolet LS2

Attributes:

  • Brand Name: JE Pistons
  • GTIN: 00193564244833
  • Add-On: JG31F1-4030-2
  • Bore Diameter: 4.030
  • Bore Diameter - Web: 4.030 IN
  • Compression Height: 1.300
  • Cylinder Head: LSX/L92 12 DEG
  • Engine: LS Gen III/IV
  • Engine Type: ICE
  • Forging Type: FSR
  • Industry: Automotive
  • Make: Chevrolet
  • Oil Ring Thickness: 0.119
  • Piston Average Weight: 436
  • Piston Head Type: Dish
  • Piston Material: 4032
  • Piston Series: SRP Pro 4032
  • Piston Volume: -15.50
  • Product Market: Domestic
  • Product Type: Engine Piston Kit
  • Ring Set Included: Yes
  • Second Compression Ring Thickness: 0.0600
  • Top Compression Ring Thickness: 0.0480
  • Wrist Pin Length: 2.250
  • Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
  • Wrist Pin Outer Diameter: 0.927
  • Wrist Pin Wall Thickness: 0.150

Extended Information:

  • Country of Origin: United States
  • Emissions : Racing or Pre-Emissions Use Only

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 12 x 6 inches
  • Weight: 12.8 POUNDS
